Generate Minimap Textures

This page explains generated dungeon minimaps in two ways:
saving them as texture assets and showing them in a widget at runtime.

For the first pass, start by confirming that you can generate a texture asset in the editor.
After that, move on to runtime UI display and icon overlays.

Goal

• Generate minimap textures in the editor
• Display the minimap in UI at runtime
• Overlay icons when needed

What to Know First

• To generate a texture in the editor, you must have a dungeon generated immediately beforehand
• To show it at runtime, get the minimap object from ADungeonGenerateActor
• For easier debugging, confirm the texture first and add icons later

Prerequisites

• QuickStart.en.md is complete
• You can generate a dungeon successfully
• You can preview from Window > DungeonGenerator, or you already use ADungeonGenerateActor in a level

A. Create Minimap Texture Assets in the Editor

Start by creating minimap textures that are saved into the Content Browser.
This is useful for checking the look and prototyping UI.

1. Generate a Dungeon First

Minimap textures are created from the most recently generated dungeon data.
If you have not generated a dungeon yet, run Generate dungeon first.

2. Confirm That the Buttons Are Enabled

The following buttons are available only when valid dungeon generation data exists.

• Generate texture with size
• Generate texture with scale

If the buttons are disabled, the dungeon may not have been generated successfully.

3. Export the Texture

Use either button depending on what you want to control.

• Generate texture with size
  Use this when you want to decide the output size directly
• Generate texture with scale
  Use this when you want to control output density instead

4. Check the Output Location

When you press the button, a texture asset is created in the ProceduralTextures folder in the Content Browser.

5. Check the Per-Floor Result

The minimap is generated as a separate texture for each floor.
This helps players understand multi-floor dungeons more easily.
Lower floors are shown in lighter colors.

B. Show the Minimap in a Widget at Runtime

If you generate the dungeon during gameplay, you can display the minimap directly in UI without saving texture assets.

1. Get the Minimap Object After Dungeon Generation

After ADungeonGenerateActor generates the dungeon,
you can obtain a DungeonMinimapTextureLayer object.

2. Select the Texture for the Current Floor

Use DungeonMinimapTextureLayer to get the texture that matches the player's current height.

3. Assign It to a Widget

Set the retrieved texture on a widget brush and display it.

C. Overlay Icons

Adding icons for the player or targets makes exploration easier.
Use DungeonIconWidget to help display these icons.

1. Prepare the Icon You Want to Show

First, set the icon you want to display on the brush.

2. Register the Icon

Use Register or Set to register the display location.
If the same ID already exists, it can update the existing icon.

3. Unregister the Icon

Use Unregister when the icon is no longer needed.

Verify the Result

• Pressing the texture generation button creates assets in ProceduralTextures
• Separate textures exist for separate floors
• The minimap changes to the correct floor based on player height
• Icons appear in the expected positions

Common Mistakes

• Generate texture with size or Generate texture with scale is disabled
  Make sure a dungeon was generated immediately beforehand
• The texture was created, but nothing appears in the UI
  Make sure the texture retrieved from DungeonMinimapTextureLayer is actually assigned to the widget
• The displayed floor is wrong
  Recheck the logic that maps player height to floor selection
• The icon does not appear
  Recheck the Register or Set ID, display coordinates, and brush setup

Notes

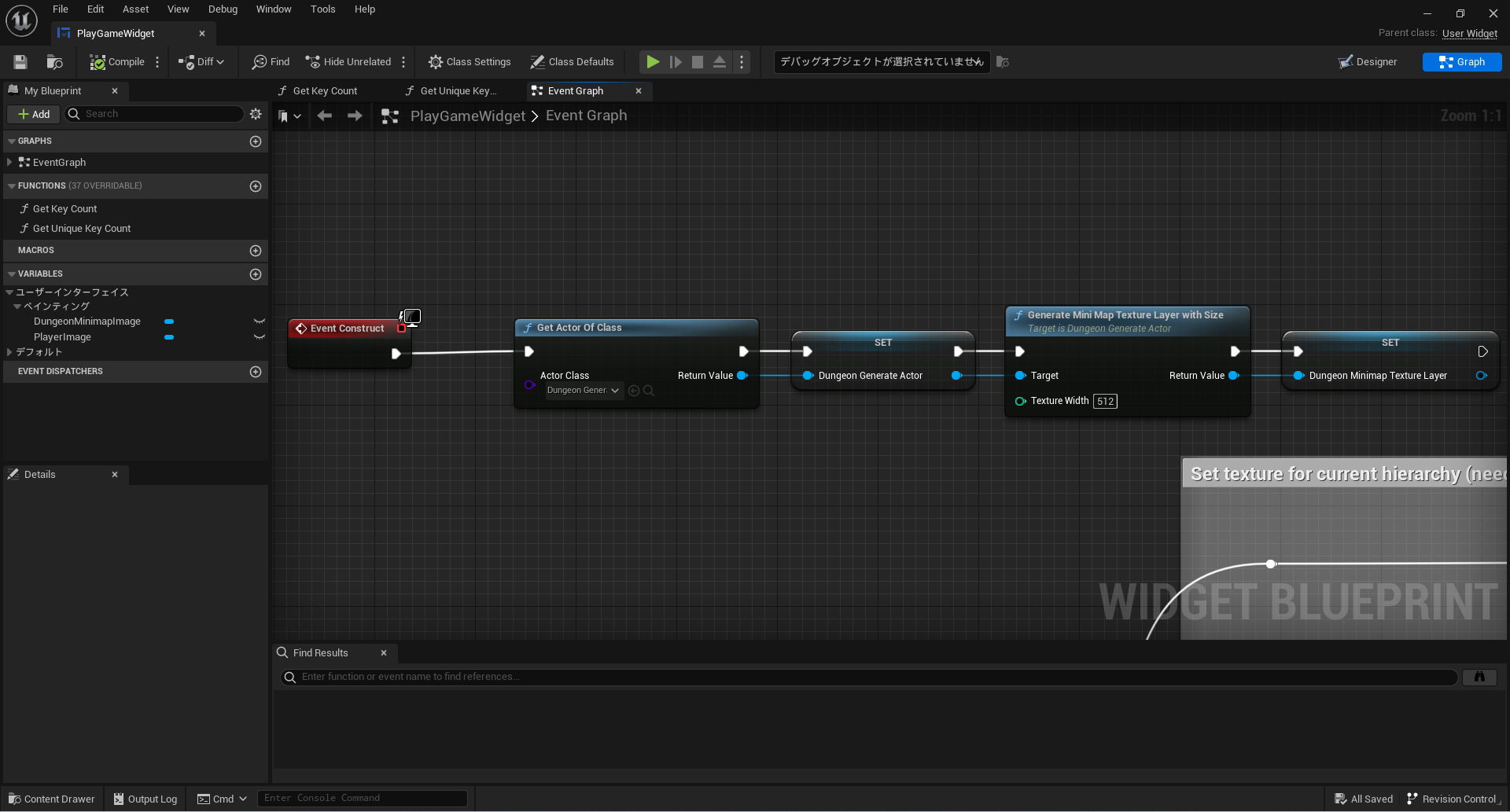

For a concrete integration example, see Content/Widget/Main/PlayGameWidget in the sample project.
