Reviews API

Table of Contents

• About
• Built With
• Getting Started
• Schema
• Overview
• Goals
• Challenges
• Optimizations
• API Documentation
• Future Improvements

About

• Reviews API is the backend infrastructure designed and created from scratch for our client's ecommerce website with the primary goal of improving the website's performance to handle up to 10,000 requests per second and replace the currently outdated system that could not handle large amounts of user traffic to the website.

Built with

• Node.js
• Express
• MySQL
• Hosted on separated AWS EC2 instances
• k6.io (development evironment stress testing)
• loader.io (production/cloud environment stress testing)
• Integrated with NewRelic to analyze service's average response time, error rate, and throughput.

Getting Started

1. Clone this repo or fork to your own repo
2. cd into the directory on your local machine
3. Install dependencies

npm install

4. Start server

npm start

5. You are connected to a remote MySQL database hosted on AWS EC2 instance and can test out the API endpoints (see API documentation)

localhost:3000/reviews?product_id=1

6. Run tests

cd load-tests

k6 run script.js

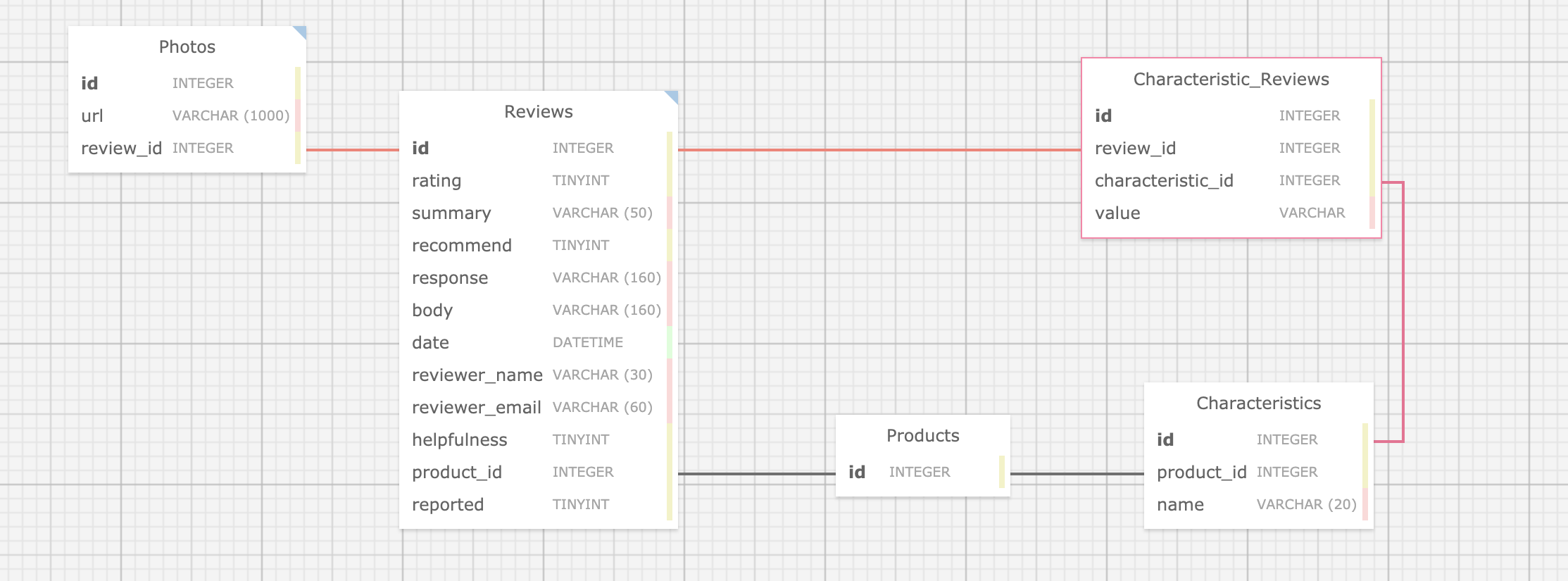

Schema

Overview

• Designed and selected two DBMS technologies (RDBMS and NoSQL DBMS) taking performances and complexity into consideration. Designed a primary database (MySQL) and secondary database (Mongo).
• Performed Extract, Transform, Load (ETL) process to transfer a large application dataset into MySQL.
  • ~1 million records of Products
  • ~5.5 million records of Reviews
  • ~18 million records of Product's Characteristics Metadata
  • ~2.5 million records of Reviews Photos
  • Designed and created API logic, defined routes expected by the API, integrated server and database.
• Performed DBMS and Service API stress testing with k6 integrated with New Relic in development environment (local machine).
• Deployed DBMS and API onto separate EC2 instances (t2.micro).
• Performed stress testing with loader.io integrated with New Relic in production environment.
• Scaled the application to handle loads up to 10,000 requests per second (RPS).

Goals

1. Response time (latency): <2000ms under load.
2. Throughput: 1000 RPS on EC2.
3. Error rate: <1% under load.

Challenges

(for more details see engineering-journal)

Data ETL

• One of the early challenges that I faced was transforming the given data set to fit into MySQL database schema. Since MySQL does not have built-in BOOLEAN type and instead all TRUE and FALSE value was converted into 0 and stored as TINYINT. I had to set TRUE and FALSE values to 0 and 1 before loading into the database.

Average Response Time

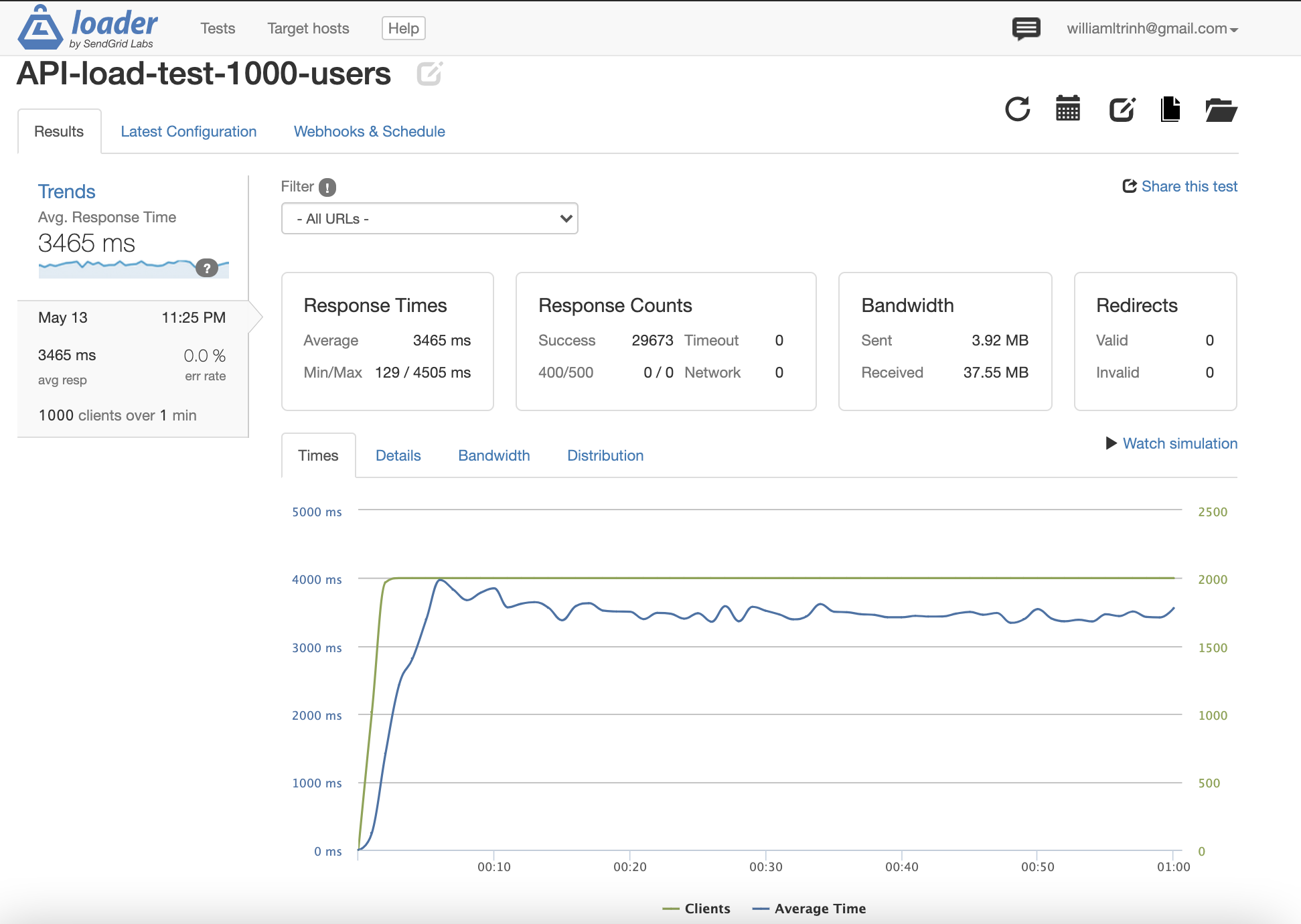

• I was able to achieve 1000 RPS on development environment (local machine) with 5-10ms average response time stress testing with k6. However, when deployed onto AWS EC2 and stress testing with loader.io, I noticed my average response time jumped to ~3500ms for 1000 RPS.

• Stress testing (development)

• Stress testing (production)

Optimizations

createPool

• Replaced MySQL createConnection with createPool since it allows for more queries to be executed at the same time whereas createConnection only has a single connection and would affect performance.

Horizontal Scaling

• To lower my average response time and increase performance, I decided to use NGINX as a load balancer with the built-in Least Connection method and created 2 more servers on AWS in order to distribute the requests for evenly. With horizontal scaling, I was able to lower my response time from ~3500ms to ~65ms for 1000 RPS.
• Horizontal scaling
• ~3500ms -> ~500ms for 1000 RPS and 12% error rate with 2 servers
• ~500ms -> ~65ms for 1000 RPS and 0% error rate with 3 servers
• After 3 servers, I noticed a diminishing returns in response time and concluded ~65ms is the best I could get from horizontal scaling and that the next step would be vertical scaling which costs money.

API Documentation

List Reviews

Returns a list of reviews for a particular product. This list does not include any reported reviews.

• GET /api/reviews

Query Parameters:

• product_id Specifies the product for which to retrieve reviews.
• count Specifies how many results per page to return. Default 5.
• sort Changes the sort order of reviews to be based on "newest", "helpful", or "relevant"

Success Status Code: 200

Returns: JSON

{
  "product": "2",
  "page": 0,
  "count": 5,
  "results": [
    {
      "review_id": 5,
      "rating": 3,
      "summary": "I'm enjoying wearing these shades",
      "recommend": false,
      "response": null,
      "body": "Comfortable and practical.",
      "date": "2019-04-14T00:00:00.000Z",
      "reviewer_name": "shortandsweeet",
      "helpfulness": 5,
      "photos": [
        {
          "id": 1,
          "url": "urlplaceholder/review_5_photo_number_1.jpg"
        },
        {
          "id": 2,
          "url": "urlplaceholder/review_5_photo_number_2.jpg"
        }
      ]
    },
    {
      "review_id": 3,
      "rating": 4,
      "summary": "I am liking these glasses",
      "recommend": false,
      "response": "Glad you're enjoying the product!",
      "body": "They are very dark. But that's good because I'm in very sunny spots",
      "date": "2019-06-23T00:00:00.000Z",
      "reviewer_name": "bigbrotherbenjamin",
      "helpfulness": 5,
      "photos": []
    }
  ]
}

Get Review Metadata

• GET /api/reviews/meta

Success Status Code: 200

Returns: JSON

{
  "product_id": "2",
  "ratings": {
    2: 1,
    3: 1,
    4: 2,
  },
  "recommended": {
    0: 5
  },
  "characteristics": {
    "Size": {
      "id": 14,
      "value": "4.0000"
    },
    "Width": {
      "id": 15,
      "value": "3.5000"
    },
    "Comfort": {
      "id": 16,
      "value": "4.0000"
    },
}

Add a Review

• POST /api/reviews

Body Parameters:

• product_id Required ID of the product to post the review for
• rating Integer (1-5) indicating the review rating
• summary Summary text of the review
• body Continued or full text of the review
• recommend Value indicating if the reviewer recommends the product
• name Username for question asker
• email Email address for question asker
• photos Array of text urls that link to images to be shown
• characteristics Object of keys representing characteristic_id and values representing the review value for that characteristic.

Success Status Code: 201

Request Body: Expects JSON with any of the following keys (include only keys to be updated)

{
  "product_id": 123,
  "rating": 5,
  "summary": "String",
  "body": "String",
  "recommend": true,
  "name": "String",
  "email": "String",
  "photos": [
    {
      "id": 1,
      "url": "urlplaceholder/review_5_photo_number_1.jpg"
    },
    {
      "id": 2,
      "url": "urlplaceholder/review_5_photo_number_2.jpg"
    }
  ]
}

Mark Review as Helpful

• PUT /api/reviews/:review_id/helpful

Path Parameters:

• review_id Required ID of the review to update

Success Status Code: 204

Report Review

• PUT /api/reviews/:review_id/report

Path Parameters:

• review_id Required ID of the review to update

Success Status Code: 204

Future Improvements

• Dockerize server for easier deployment.
• Implement Redis caching.
• Explore vertical scaling & other options.
