Led example

A simple example demonstrating muwerk's scheduler and two blinking leds using a variety of hardware boards ranging from ATtiny single chip MCUs up to powerful ARM, RISC-V and Espressif network enabled boards.

This showcases are very simple application of muwerk's scheduler: let two leds blink and use the light mupplet to animate two leds. Mupplets use the scheduler to execute driver functionality in the background, in our case generating two different and phase-shifted led pulsating effects.

The project requires platformio and will install the libraries ustd, muwerk, and mupplet-core when building.

Hardware setup

Required: your board (see platformio.ini for preconfigured boards), two leds and two resistors of $330\mathrm{\Omega }$. platformio.ini contains definitions for MB_LED1 and MB_LED2 that specify the GPIO pin that is used for a given board. See below for specifics.

Building with platformio

All examples are using the platformio command line tool pio, but it is also possible to build the projects with the platformio vscode extension.

To build this projects for all boards and chipsset defined in platformio.ini, do:

pio run

After the build completes, it should show something like:

Environment    Status    Duration
-------------  --------  ------------
attiny         SUCCESS   00:00:00.376
uno            SUCCESS   00:00:00.558
nano           SUCCESS   00:00:00.547
protrinket3    SUCCESS   00:00:00.551
mega           SUCCESS   00:00:00.547
nucleo_f103    SUCCESS   00:00:01.990
bluepill       SUCCESS   00:00:02.018
blackpill_401  SUCCESS   00:00:02.285
blackpill_411  SUCCESS   00:00:02.254
featherm0      SUCCESS   00:00:00.992
featherm4      SUCCESS   00:00:00.986
nrf52          SUCCESS   00:00:00.544
maixbit        SUCCESS   00:00:01.165
d1_mini        SUCCESS   00:00:03.077
esp32          SUCCESS   00:00:02.961
esp32c3        SUCCESS   00:00:02.332
=== 16 succeeded in 00:00:23.186 ====

You can select a specific board via -e <environment>, e.g. pio run -e attiny would only build the variant for attiny. Additionally platformio.ini makes defines for each board which pin is used for led 1 (MB_LED1) and led 2 (MB_LED2). Adapt those defines to your setup if necessary.

Check 'Platform specific notes' on how to build for a specific board and how to install the program.

Platform specific notes

ATtiny85

The ATtiny85 is a small AVR MCU with just 8k bytes of flash and 512 bytes of RAM. This tiny capacity is not enough to run the light mupplet, since that supports lots of different effects and contains code for communication interfaces. Since the ATtiny is just a chip, and external programmer (e.g. AVRISPv2 or STK500v2) is required to program the chip. Check the diagrams on how to connect the programmer to the chip. The two leds are connected to GPIO 0 (chip pin 5) and GPIO1 (chip pin 6).

The code the the ATtiny works differently than all other boards, since it doesn't have enough resources to use the mupplet-core light_processor, so for ATtiny, we simply start a process that is executed every 100ms, and blinks two leds every 700ms and 1300ms respectively.

Review platformio.ini and make sure that programmer and port are correctly set, for ATtiny both programmer and port must be defined correctly in this file (not via command line options):

[env:attiny]
build_flags= -D __ATTINY__  -D MB_LED1=0 -D MB_LED2=1
platform=atmelavr
board=attiny85
framework=arduino
upload_protocol = avrispv2
upload_flags = -P/dev/ttyACM0

Build and program with:

pio run -e attiny -t upload

The Original Arduinos: Uno Rev 3, Nano, Mega, Adafruit Pro Trinket 3

The Arduino Uno Rev 3, Nano, and Pro Trinket 3 (deprecated by Adafruit) with their 32k Flash and 2k RAM are the smallest MCUs that actually can make use of multiple tasks and the light mupplet that creates two independent light effects on the two leds of this project.

Note for the Pro Tinket: according to Adafruit (see deprecation note above), the programming interface is unreliable with modern, faster computers. Best results were achieved by trying to program just after a reset of the chip.

The mega has more storage, but runs the same setup too.

Connect two leds via $330\mathrm{\Omega }$ resistors to pin 5 and 6 (marked D5, D6 on the Nano). (Note: the internal led at pin 13 has no PWM support, so it can't show the wave effect. If you choose to use the internal led at pin 13, it will simply blink). Modify platformio.ini, definitions for MB_LED1 and MB_LED2 to change pins.

Build and run with:

# For uno
pio run -e uno -t upload
# For nano
pio run -e nano -t upload
# For mega
pio run -e mega -t upload
# For Adafruit Pro Trinket 3V (execute this just after a reset of the trinket)
pio run -e protrinket3 -t upload

STM32 ARM cortex MCUs: various Bluepills and Blackpills

Note: There are many, many variants of STM32 boards that are sometimes marketed under same or similar names while using different chip variants. If the board specification in platformio.ini is even slightly wrong, things won't work. The programming will work just fine, but internal hardware differences will prevent even led-blink examples from working!

ST Nucleo F103RB

The easiest way to start is with ST Nucleo boards: they have an STlink programmer build into the development board: the (removable) left side of the board is the programmer, and the right side is the MCU with Arduino Uno style connectors.

When using a different Nucleo board, be sure to adapt the platformio.ini definition board = nucleo_f103rb. The example uses pins D5 and D6 (see platformio.ini: MB_LED1=D5 -D MB_LED2=D6).

Connect the board via USB and programm with:

pio run -e nucleo_f103 -t upload

Bluepills and Blackpills

There are several different variants of 'blue-' and 'blackpill' STM32 boards available. They divide into two major categories, 'blue': ST32F10x boards, based on Cortex M0 MCU and 'black' ST32F4xx boards based on Cortex M4 cores. Once you get such a board check the imprint on the MCU chip to get the precise name of the chip used. Our example image shows a STM32F103C8. Use this together with platformio's board list to identify the board entry for platformio.ini.

Note: while the different pills have a USB port, this is not used for programming.

Therefore next step is the programmer. You'll need an STlink v2 programmer. Again there are hundreds of different clones of this programmer type. Most of them seem to share a similar looking 2x4 pin connector, but the connector pinout differs among the different clones! So make sure that you get a programmer that has at least a documented pin-layout:

From the blue- or blackpill connect the four vertical programmer pins one-to-one to your STlinkv2 programmer: GND, SWSCK, SWDIO and 3V3 need to be interconnected.

Then connect the USB-port of the STlinkv2 to your computer and program with:

# Bluepill STM32F103C8, leds connected to A6, A7 (not all ports support PWM!)
pio run -e bluepill -t upload
# Blackpill STM32F401CE, leds connected to A6, A7
pio run -e blackpill_401 -t upload
# Blackpill STM32F411CE, leds connected to A6, A7
pio run -e blackpill_411 -t upload

Atmel SAM with Adafruit's feathers

Using Adafruit's feather boards have significant advantages: integrated programmer, standardized board and periphery layout and most of all: excellent documentation.

Adafruit Feather M0 with cortex m0

There are different Feather m0 boards with different kinds of extension hardware. For the purpose of this led demo, any will do.

The image shows the Adafruit Feather M0 with RFM69 Radio. The radio is not used in this demo.

Connect two leds (via $330\mathrm{\Omega }$ resistors) to pins 9 and 10 of the feather board.

Connect the feather board via USB to your computer, and program with:

pio run -e featherm0 -t upload

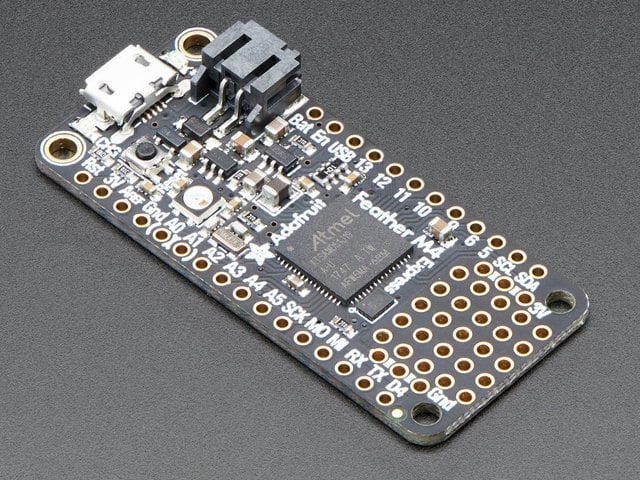

Adafruit Feather M4 Express

The Adafruit Feather M4 Express uses the Atmel SAMD51 chip based on Cortex M4. For our purposes it's pin-compatible with the M0 above:

Connect two leds (via $330\mathrm{\Omega }$ resistors) to pins 9 and 10 of the feather board.

Connect the feather board via USB to your computer, and program with:

pio run -e featherm4 -t upload

Nordic NRF52 with Adafruit Feather

Adafruit nRF52832 Bluetooth Feather

A variant of Cortex M4 by Nordic.

Connect two leds (via $330\mathrm{\Omega }$ resistors) to pins 11 and 31 of the feather board.

Connect the feather board via USB to your computer, and program with:

pio run -e featherm4 -t upload

RISC-V boards

Sipeed Maix Bit

A board based on the Kendryte K210 RISC-V dual core 64bit 400 Mhz.

Connect two leds (via $330\mathrm{\Omega }$ resistors) to pins 7 and 8 of the feather board.

Connect the board via USB to your computer, and program with:

pio run -e maixbit -t upload

Documentation and References

• muwerk scheduler and messaging
• munet networking and mqtt
• documentation of hardware mupplets and supported MQTT messages
