Benchmark Hive Router Query Planner in Hive Gateway #841
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
💻 Website PreviewThe latest changes are available as preview in: https://a1fc3c50.federation-gateway-benchmark.pages.dev |
Overview for:
|
| Gateway | RPS ⬇️ | Requests | Duration | Notes |
|---|---|---|---|---|
| hive-router | 1719 | 103638 total, 0 failed | avg: 29ms, p95: 50ms | ✅ |
| grafbase | 1466 | 88611 total, 0 failed | avg: 34ms, p95: 59ms | ✅ |
| hive-gateway | 661 | 40113 total, 0 failed | avg: 74ms, p95: 99ms | ✅ |
| cosmo | 645 | 39025 total, 0 failed | avg: 77ms, p95: 113ms | ✅ |
| hive-gateway-bun | 627 | 38093 total, 0 failed | avg: 79ms, p95: 102ms | ✅ |
| apollo-router | 369 | 22448 total, 0 failed | avg: 133ms, p95: 174ms | ❌ 1 unexpected GraphQL errors |
| apollo-gateway | 118 | 7247 total, 0 failed | avg: 415ms, p95: 489ms | ✅ |
Summary for: `hive-router`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 310614 ✗ 0
data_received..................: 9.1 GB 151 MB/s
data_sent......................: 121 MB 2.0 MB/s
http_req_blocked...............: avg=5.25µs min=1.12µs med=2.55µs max=9.06ms p(90)=3.63µs p(95)=4.22µs p(99.9)=83.53µs
http_req_connecting............: avg=2.21µs min=0s med=0s max=9.02ms p(90)=0s p(95)=0s p(99.9)=0s
http_req_duration..............: avg=28.69ms min=1.89ms med=26.26ms max=499.82ms p(90)=43.71ms p(95)=50.19ms p(99.9)=91.8ms
{ expected_response:true }...: avg=28.69ms min=1.89ms med=26.26ms max=499.82ms p(90)=43.71ms p(95)=50.19ms p(99.9)=91.8ms
http_req_failed................: 0.00% ✓ 0 ✗ 103638
http_req_receiving.............: avg=118.31µs min=22.32µs med=41.68µs max=129.49ms p(90)=100.33µs p(95)=330.93µs p(99.9)=12.89ms
http_req_sending...............: avg=106.09µs min=4.93µs med=9.88µs max=446.6ms p(90)=29.13µs p(95)=123.81µs p(99.9)=14.96ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=28.47ms min=1.85ms med=26.1ms max=481.11ms p(90)=43.32ms p(95)=49.78ms p(99.9)=89.96ms
http_reqs......................: 103638 1719.783953/s
iteration_duration.............: avg=28.97ms min=4.15ms med=26.5ms max=543.72ms p(90)=43.95ms p(95)=50.43ms p(99.9)=92.29ms
iterations.....................: 103538 1718.124538/s
success_rate...................: 100.00% ✓ 103538 ✗ 0
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `grafbase`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 265533 ✗ 0
data_received..................: 7.8 GB 129 MB/s
data_sent......................: 103 MB 1.7 MB/s
http_req_blocked...............: avg=6.92µs min=1.23µs med=3.28µs max=10.22ms p(90)=4.96µs p(95)=6.06µs p(99.9)=128.18µs
http_req_connecting............: avg=2.81µs min=0s med=0s max=10.18ms p(90)=0s p(95)=0s p(99.9)=0s
http_req_duration..............: avg=33.55ms min=3.2ms med=29.91ms max=528.99ms p(90)=51.57ms p(95)=58.82ms p(99.9)=105.53ms
{ expected_response:true }...: avg=33.55ms min=3.2ms med=29.91ms max=528.99ms p(90)=51.57ms p(95)=58.82ms p(99.9)=105.53ms
http_req_failed................: 0.00% ✓ 0 ✗ 88611
http_req_receiving.............: avg=174.78µs min=28.65µs med=51.63µs max=258.47ms p(90)=171.14µs p(95)=438.82µs p(99.9)=19.4ms
http_req_sending...............: avg=129.53µs min=5.96µs med=12.34µs max=358.09ms p(90)=43.23µs p(95)=155.94µs p(99.9)=19.26ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=33.25ms min=3.09ms med=29.69ms max=511.33ms p(90)=50.99ms p(95)=58.17ms p(99.9)=104.42ms
http_reqs......................: 88611 1466.58496/s
iteration_duration.............: avg=33.88ms min=8.01ms med=30.2ms max=579.1ms p(90)=51.87ms p(95)=59.12ms p(99.9)=106.21ms
iterations.....................: 88511 1464.929878/s
success_rate...................: 100.00% ✓ 88511 ✗ 0
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 120039 ✗ 0
data_received..................: 3.5 GB 58 MB/s
data_sent......................: 47 MB 769 kB/s
http_req_blocked...............: avg=10.49µs min=1.11µs med=2.66µs max=11.44ms p(90)=4.03µs p(95)=4.95µs p(99.9)=2.06ms
http_req_connecting............: avg=7.07µs min=0s med=0s max=11.41ms p(90)=0s p(95)=0s p(99.9)=2.03ms
http_req_duration..............: avg=74.49ms min=4.76ms med=72.57ms max=573.49ms p(90)=91.31ms p(95)=98.75ms p(99.9)=328.78ms
{ expected_response:true }...: avg=74.49ms min=4.76ms med=72.57ms max=573.49ms p(90)=91.31ms p(95)=98.75ms p(99.9)=328.78ms
http_req_failed................: 0.00% ✓ 0 ✗ 40113
http_req_receiving.............: avg=96.95µs min=26.21µs med=47µs max=227.42ms p(90)=103.87µs p(95)=235.26µs p(99.9)=4.74ms
http_req_sending...............: avg=82.9µs min=5.53µs med=10.96µs max=460.98ms p(90)=30.84µs p(95)=129.8µs p(99.9)=5.22ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=74.31ms min=4.7ms med=72.43ms max=561.11ms p(90)=91.15ms p(95)=98.54ms p(99.9)=318.96ms
http_reqs......................: 40113 661.521896/s
iteration_duration.............: avg=75.01ms min=12.67ms med=72.88ms max=614.93ms p(90)=91.62ms p(95)=99.08ms p(99.9)=357.44ms
iterations.....................: 40013 659.87275/s
success_rate...................: 100.00% ✓ 40013 ✗ 0
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `cosmo`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 116775 ✗ 0
data_received..................: 3.4 GB 57 MB/s
data_sent......................: 45 MB 751 kB/s
http_req_blocked...............: avg=10.86µs min=1.41µs med=3.04µs max=10.45ms p(90)=4.41µs p(95)=5.43µs p(99.9)=2.7ms
http_req_connecting............: avg=6.86µs min=0s med=0s max=10.41ms p(90)=0s p(95)=0s p(99.9)=2.31ms
http_req_duration..............: avg=76.57ms min=2.65ms med=75.56ms max=519.21ms p(90)=104.06ms p(95)=112.76ms p(99.9)=305.16ms
{ expected_response:true }...: avg=76.57ms min=2.65ms med=75.56ms max=519.21ms p(90)=104.06ms p(95)=112.76ms p(99.9)=305.16ms
http_req_failed................: 0.00% ✓ 0 ✗ 39025
http_req_receiving.............: avg=160.04µs min=29.49µs med=77.5µs max=235.02ms p(90)=155µs p(95)=407.17µs p(99.9)=12.24ms
http_req_sending...............: avg=56.93µs min=5.75µs med=11.84µs max=325.57ms p(90)=30.46µs p(95)=131.6µs p(99.9)=3.78ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=76.35ms min=2.56ms med=75.38ms max=501.42ms p(90)=103.82ms p(95)=112.54ms p(99.9)=295.41ms
http_reqs......................: 39025 645.966896/s
iteration_duration.............: avg=77.07ms min=2.91ms med=75.89ms max=574.86ms p(90)=104.38ms p(95)=113.08ms p(99.9)=319.55ms
iterations.....................: 38925 644.311631/s
success_rate...................: 100.00% ✓ 38925 ✗ 0
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50

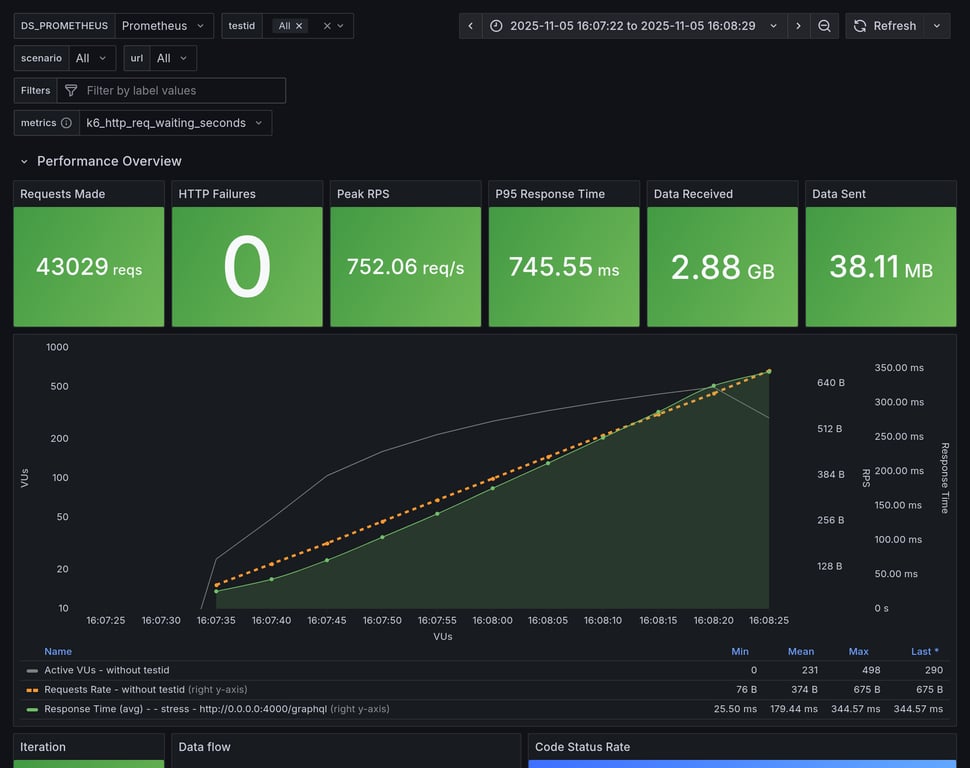

Performance Overview

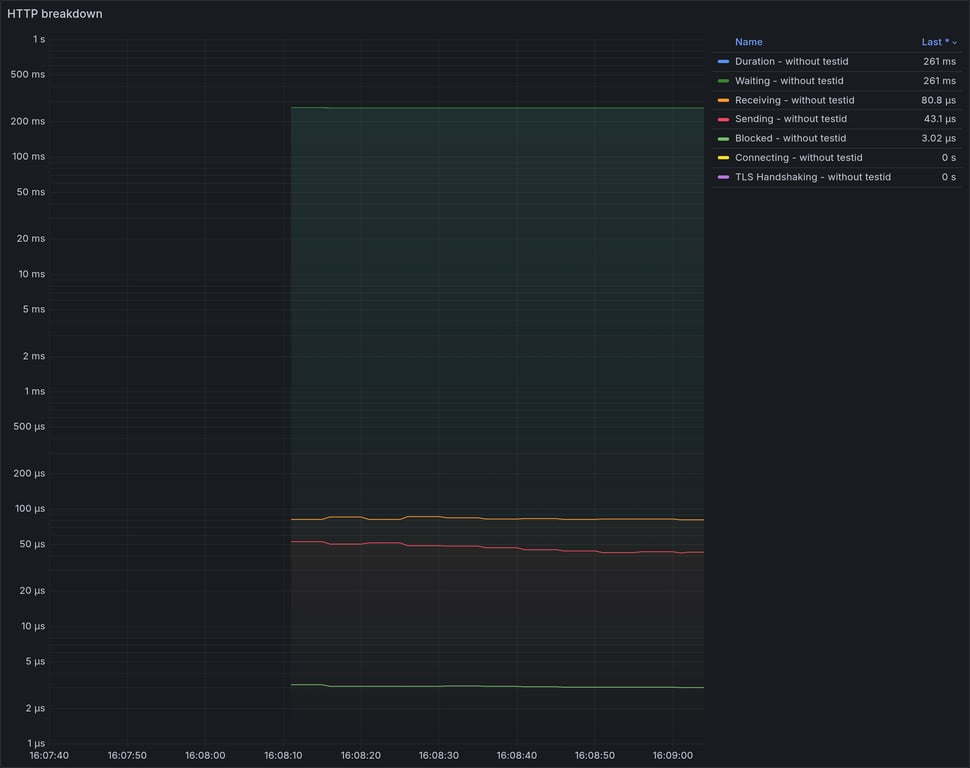

HTTP Overview
Summary for: `hive-gateway-bun`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 113979 ✗ 0
data_received..................: 3.3 GB 55 MB/s
data_sent......................: 44 MB 730 kB/s
http_req_blocked...............: avg=11.43µs min=1.22µs med=2.83µs max=11.83ms p(90)=4.47µs p(95)=5.69µs p(99.9)=2.52ms
http_req_connecting............: avg=7.71µs min=0s med=0s max=11.79ms p(90)=0s p(95)=0s p(99.9)=2.49ms
http_req_duration..............: avg=78.5ms min=5.09ms med=76.55ms max=558.89ms p(90)=94.49ms p(95)=102.01ms p(99.9)=348.36ms
{ expected_response:true }...: avg=78.5ms min=5.09ms med=76.55ms max=558.89ms p(90)=94.49ms p(95)=102.01ms p(99.9)=348.36ms
http_req_failed................: 0.00% ✓ 0 ✗ 38093
http_req_receiving.............: avg=102.82µs min=27.73µs med=53.8µs max=143.86ms p(90)=115.97µs p(95)=261.01µs p(99.9)=4.29ms
http_req_sending...............: avg=82.21µs min=5.53µs med=11.25µs max=387.58ms p(90)=31.62µs p(95)=130.87µs p(99.9)=5.54ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=78.31ms min=5.04ms med=76.39ms max=557.53ms p(90)=94.31ms p(95)=101.8ms p(99.9)=320.48ms
http_reqs......................: 38093 627.776717/s
iteration_duration.............: avg=79ms min=15.69ms med=76.87ms max=613.65ms p(90)=94.8ms p(95)=102.29ms p(99.9)=355.52ms
iterations.....................: 37993 626.128706/s
success_rate...................: 100.00% ✓ 37993 ✗ 0
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-router`
K6 Output
✓ response code was 200
✗ no graphql errors
↳ 99% — ✓ 22347 / ✗ 1
✓ valid response structure
checks.........................: 99.99% ✓ 67043 ✗ 1
data_received..................: 2.0 GB 32 MB/s
data_sent......................: 26 MB 430 kB/s
http_req_blocked...............: avg=14.73µs min=1.92µs med=3.1µs max=9.59ms p(90)=4.49µs p(95)=5.32µs p(99.9)=5.46ms
http_req_connecting............: avg=10.65µs min=0s med=0s max=9.55ms p(90)=0s p(95)=0s p(99.9)=5.24ms
http_req_duration..............: avg=133.41ms min=5.96ms med=132.59ms max=587.82ms p(90)=163.71ms p(95)=173.52ms p(99.9)=425.11ms
{ expected_response:true }...: avg=133.41ms min=5.96ms med=132.59ms max=587.82ms p(90)=163.71ms p(95)=173.52ms p(99.9)=425.11ms
http_req_failed................: 0.00% ✓ 0 ✗ 22448
http_req_receiving.............: avg=80.87µs min=36.29µs med=55.44µs max=6.71ms p(90)=107.27µs p(95)=136.48µs p(99.9)=1.58ms
http_req_sending...............: avg=81.84µs min=7.5µs med=12.07µs max=405.96ms p(90)=20.35µs p(95)=36.59µs p(99.9)=2.29ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=133.25ms min=5.92ms med=132.47ms max=586.89ms p(90)=163.61ms p(95)=173.35ms p(99.9)=411.66ms
http_reqs......................: 22448 369.431316/s
iteration_duration.............: avg=134.33ms min=27.75ms med=133.02ms max=631.43ms p(90)=164.06ms p(95)=173.88ms p(99.9)=455.16ms
iterations.....................: 22348 367.785596/s
success_rate...................: 99.99% ✓ 22347 ✗ 1
vus............................: 50 min=50 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 21441 ✗ 0
data_received..................: 637 MB 10 MB/s
data_sent......................: 8.4 MB 138 kB/s
http_req_blocked...............: avg=44.07µs min=1.37µs med=2.9µs max=11.81ms p(90)=4.41µs p(95)=5.08µs p(99.9)=9.89ms
http_req_connecting............: avg=39.28µs min=0s med=0s max=11.38ms p(90)=0s p(95)=0s p(99.9)=9.65ms
http_req_duration..............: avg=414.88ms min=7.41ms med=413.58ms max=898.15ms p(90)=470.94ms p(95)=488.58ms p(99.9)=849.98ms
{ expected_response:true }...: avg=414.88ms min=7.41ms med=413.58ms max=898.15ms p(90)=470.94ms p(95)=488.58ms p(99.9)=849.98ms
http_req_failed................: 0.00% ✓ 0 ✗ 7247
http_req_receiving.............: avg=74.36µs min=29.32µs med=50.26µs max=91.24ms p(90)=91.42µs p(95)=106.96µs p(99.9)=568.7µs
http_req_sending...............: avg=131.41µs min=6.32µs med=11.71µs max=269.62ms p(90)=18.92µs p(95)=22.21µs p(99.9)=4.45ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=414.68ms min=7.36ms med=413.47ms max=898.02ms p(90)=470.78ms p(95)=488.43ms p(99.9)=849.1ms
http_reqs......................: 7247 118.469572/s
iteration_duration.............: avg=421.25ms min=86.41ms med=414.24ms max=943.46ms p(90)=471.51ms p(95)=489.47ms p(99.9)=904.06ms
iterations.....................: 7147 116.834832/s
success_rate...................: 100.00% ✓ 7147 ✗ 0
vus............................: 42 min=42 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Overview for:
|
| Gateway | RPS ⬇️ | Requests | Duration | Notes |
|---|---|---|---|---|
| hive-router | 1769 | 110149 total, 0 failed | avg: 126ms, p95: 308ms | ✅ |
| grafbase | 1457 | 92132 total, 0 failed | avg: 151ms, p95: 356ms | ✅ |
| cosmo | 673 | 43029 total, 0 failed | avg: 327ms, p95: 727ms | ✅ |
| hive-gateway-bun | 603 | 39757 total, 0 failed | avg: 353ms, p95: 727ms | ❌ non-compatible response structure (1) |
| hive-gateway | 586 | 38778 total, 0 failed | avg: 362ms, p95: 737ms | ❌ non-compatible response structure (1) |
| apollo-router | 392 | 26266 total, 0 failed | avg: 537ms, p95: 1232ms | ❌ 26 unexpected GraphQL errors |
| apollo-gateway | 153 | 10553 total, 0 failed | avg: 1232ms, p95: 2561ms | ✅ |
Summary for: `hive-router`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 327447 ✗ 0
data_received..................: 9.7 GB 155 MB/s
data_sent......................: 128 MB 2.1 MB/s
http_req_blocked...............: avg=476.29µs min=1.11µs med=2.58µs max=334.26ms p(90)=4.03µs p(95)=4.79µs p(99.9)=171.62ms
http_req_connecting............: avg=472.4µs min=0s med=0s max=329.88ms p(90)=0s p(95)=0s p(99.9)=171.57ms
http_req_duration..............: avg=126.43ms min=1.54ms med=113.84ms max=459.81ms p(90)=260.48ms p(95)=307.85ms p(99.9)=396.97ms
{ expected_response:true }...: avg=126.43ms min=1.54ms med=113.84ms max=459.81ms p(90)=260.48ms p(95)=307.85ms p(99.9)=396.97ms
http_req_failed................: 0.00% ✓ 0 ✗ 110149
http_req_receiving.............: avg=517.29µs min=22.61µs med=41.94µs max=149.52ms p(90)=98.62µs p(95)=394.74µs p(99.9)=76.19ms
http_req_sending...............: avg=440.33µs min=5.1µs med=10.17µs max=131.97ms p(90)=22.25µs p(95)=128.58µs p(99.9)=71.55ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=125.48ms min=1.48ms med=112.87ms max=420.52ms p(90)=258.37ms p(95)=305.71ms p(99.9)=393.02ms
http_reqs......................: 110149 1769.459393/s
iteration_duration.............: avg=128.38ms min=1.8ms med=115.54ms max=825.38ms p(90)=263.15ms p(95)=309.86ms p(99.9)=427.42ms
iterations.....................: 109149 1753.395158/s
success_rate...................: 100.00% ✓ 109149 ✗ 0
vus............................: 72 min=0 max=495
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `grafbase`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 273396 ✗ 0
data_received..................: 8.1 GB 128 MB/s
data_sent......................: 107 MB 1.7 MB/s
http_req_blocked...............: avg=781.55µs min=1.25µs med=3.15µs max=586.86ms p(90)=4.77µs p(95)=5.94µs p(99.9)=239.9ms
http_req_connecting............: avg=775.48µs min=0s med=0s max=586.81ms p(90)=0s p(95)=0s p(99.9)=239.38ms
http_req_duration..............: avg=150.95ms min=2.57ms med=138.16ms max=526.72ms p(90)=299.09ms p(95)=355.89ms p(99.9)=466.72ms
{ expected_response:true }...: avg=150.95ms min=2.57ms med=138.16ms max=526.72ms p(90)=299.09ms p(95)=355.89ms p(99.9)=466.72ms
http_req_failed................: 0.00% ✓ 0 ✗ 92132
http_req_receiving.............: avg=681.61µs min=25µs med=50.53µs max=151.23ms p(90)=126.76µs p(95)=470.74µs p(99.9)=90.94ms
http_req_sending...............: avg=659.28µs min=5.49µs med=12.1µs max=152.97ms p(90)=32.83µs p(95)=150.7µs p(99.9)=92.51ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=149.61ms min=2.49ms med=136.71ms max=491.6ms p(90)=296.47ms p(95)=352.94ms p(99.9)=462.88ms
http_reqs......................: 92132 1457.559682/s
iteration_duration.............: avg=153.82ms min=2.74ms med=140.68ms max=949.37ms p(90)=302.93ms p(95)=360.07ms p(99.9)=554.96ms
iterations.....................: 91132 1441.739341/s
success_rate...................: 100.00% ✓ 91132 ✗ 0
vus............................: 70 min=0 max=495
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `cosmo`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 126087 ✗ 0
data_received..................: 3.8 GB 59 MB/s
data_sent......................: 50 MB 784 kB/s
http_req_blocked...............: avg=100.73µs min=1.21µs med=3.16µs max=222.54ms p(90)=5.04µs p(95)=6.91µs p(99.9)=33.48ms
http_req_connecting............: avg=95.65µs min=0s med=0s max=222.36ms p(90)=0s p(95)=0s p(99.9)=33.34ms
http_req_duration..............: avg=326.59ms min=2.78ms med=310.69ms max=1.35s p(90)=640.96ms p(95)=726.66ms p(99.9)=1.12s
{ expected_response:true }...: avg=326.59ms min=2.78ms med=310.69ms max=1.35s p(90)=640.96ms p(95)=726.66ms p(99.9)=1.12s
http_req_failed................: 0.00% ✓ 0 ✗ 43029
http_req_receiving.............: avg=701.72µs min=28.21µs med=63.81µs max=155.31ms p(90)=185.07µs p(95)=499.63µs p(99.9)=107.58ms
http_req_sending...............: avg=158.25µs min=5.79µs med=11.89µs max=98.59ms p(90)=31.86µs p(95)=137.82µs p(99.9)=26ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=325.73ms min=2.72ms med=309.19ms max=1.35s p(90)=640.31ms p(95)=726.2ms p(99.9)=1.12s
http_reqs......................: 43029 673.022014/s
iteration_duration.............: avg=334.88ms min=3.09ms med=319.97ms max=1.35s p(90)=644.38ms p(95)=730.19ms p(99.9)=1.12s
iterations.....................: 42029 657.380888/s
success_rate...................: 100.00% ✓ 42029 ✗ 0
vus............................: 62 min=0 max=498
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `hive-gateway-bun`
K6 Output
✓ response code was 200
✓ no graphql errors
✗ valid response structure
↳ 99% — ✓ 38756 / ✗ 1
checks.........................: 99.99% ✓ 116270 ✗ 1
data_received..................: 3.5 GB 53 MB/s
data_sent......................: 46 MB 703 kB/s
http_req_blocked...............: avg=163.38µs min=1.2µs med=2.81µs max=210.25ms p(90)=4.24µs p(95)=5.79µs p(99.9)=52.94ms
http_req_connecting............: avg=157.38µs min=0s med=0s max=210.07ms p(90)=0s p(95)=0s p(99.9)=52.81ms
http_req_duration..............: avg=353.34ms min=4.68ms med=345.15ms max=1.3s p(90)=659.17ms p(95)=726.76ms p(99.9)=993.27ms
{ expected_response:true }...: avg=353.34ms min=4.68ms med=345.15ms max=1.3s p(90)=659.17ms p(95)=726.76ms p(99.9)=993.27ms
http_req_failed................: 0.00% ✓ 0 ✗ 39757
http_req_receiving.............: avg=206.66µs min=26.75µs med=44.37µs max=143.72ms p(90)=88.64µs p(95)=374.45µs p(99.9)=29.14ms
http_req_sending...............: avg=270.65µs min=5.46µs med=10.87µs max=157.14ms p(90)=28.69µs p(95)=131.65µs p(99.9)=49.26ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=352.86ms min=4.63ms med=344.74ms max=1.3s p(90)=658.44ms p(95)=725.94ms p(99.9)=993.21ms
http_reqs......................: 39757 603.943696/s
iteration_duration.............: avg=363.04ms min=5.2ms med=354.64ms max=1.38s p(90)=664.05ms p(95)=729.61ms p(99.9)=1s
iterations.....................: 38757 588.752819/s
success_rate...................: 99.99% ✓ 38756 ✗ 1
vus............................: 56 min=0 max=499
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `hive-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✗ valid response structure
↳ 99% — ✓ 37777 / ✗ 1
checks.........................: 99.99% ✓ 113333 ✗ 1
data_received..................: 3.4 GB 52 MB/s
data_sent......................: 45 MB 684 kB/s
http_req_blocked...............: avg=138.99µs min=1.29µs med=2.99µs max=143.74ms p(90)=4.64µs p(95)=6.35µs p(99.9)=42.47ms
http_req_connecting............: avg=134.32µs min=0s med=0s max=143.68ms p(90)=0s p(95)=0s p(99.9)=42.42ms
http_req_duration..............: avg=362.21ms min=4.81ms med=357.97ms max=1.29s p(90)=681.8ms p(95)=737.24ms p(99.9)=1.08s
{ expected_response:true }...: avg=362.21ms min=4.81ms med=357.97ms max=1.29s p(90)=681.8ms p(95)=737.24ms p(99.9)=1.08s
http_req_failed................: 0.00% ✓ 0 ✗ 38778
http_req_receiving.............: avg=208.98µs min=26.67µs med=46.03µs max=130.16ms p(90)=91.37µs p(95)=363.39µs p(99.9)=37.79ms
http_req_sending...............: avg=264.9µs min=5.92µs med=11.23µs max=137.77ms p(90)=29.78µs p(95)=134.33µs p(99.9)=46.62ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=361.74ms min=4.76ms med=357.39ms max=1.29s p(90)=680.91ms p(95)=736.38ms p(99.9)=1.08s
http_reqs......................: 38778 586.887262/s
iteration_duration.............: avg=372.36ms min=5.13ms med=367.59ms max=1.31s p(90)=684.53ms p(95)=739.33ms p(99.9)=1.08s
iterations.....................: 37778 571.75272/s
success_rate...................: 99.99% ✓ 37777 ✗ 1
vus............................: 66 min=0 max=496
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `apollo-router`
K6 Output
✓ response code was 200
✗ no graphql errors
↳ 99% — ✓ 25240 / ✗ 26
✓ valid response structure
checks.........................: 99.96% ✓ 75772 ✗ 26
data_received..................: 2.3 GB 34 MB/s
data_sent......................: 31 MB 457 kB/s
http_req_blocked...............: avg=105.84µs min=1.41µs med=3.04µs max=164.57ms p(90)=4.8µs p(95)=6.91µs p(99.9)=28.73ms
http_req_connecting............: avg=100.38µs min=0s med=0s max=164.41ms p(90)=0s p(95)=0s p(99.9)=28.6ms
http_req_duration..............: avg=536.52ms min=6.07ms med=493.67ms max=1.92s p(90)=1.08s p(95)=1.23s p(99.9)=1.7s
{ expected_response:true }...: avg=536.52ms min=6.07ms med=493.67ms max=1.92s p(90)=1.08s p(95)=1.23s p(99.9)=1.7s
http_req_failed................: 0.00% ✓ 0 ✗ 26266
http_req_receiving.............: avg=124.33µs min=32.55µs med=52.69µs max=118.48ms p(90)=103.21µs p(95)=183.48µs p(99.9)=8.42ms
http_req_sending...............: avg=156.06µs min=6.79µs med=11.7µs max=153.25ms p(90)=31.21µs p(95)=122.98µs p(99.9)=31.26ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=536.24ms min=6.02ms med=493.29ms max=1.91s p(90)=1.08s p(95)=1.23s p(99.9)=1.7s
http_reqs......................: 26266 392.011072/s
iteration_duration.............: avg=558.26ms min=6.29ms med=518.11ms max=1.92s p(90)=1.09s p(95)=1.23s p(99.9)=1.7s
iterations.....................: 25266 377.086414/s
success_rate...................: 99.89% ✓ 25240 ✗ 26
vus............................: 61 min=0 max=497
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Summary for: `apollo-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 28659 ✗ 0
data_received..................: 927 MB 13 MB/s
data_sent......................: 13 MB 183 kB/s
http_req_blocked...............: avg=35.32µs min=1.13µs med=3.92µs max=32.32ms p(90)=6.85µs p(95)=14.44µs p(99.9)=6.05ms
http_req_connecting............: avg=28.71µs min=0s med=0s max=32.2ms p(90)=0s p(95)=0s p(99.9)=5.99ms
http_req_duration..............: avg=1.23s min=7.38ms med=1.15s max=15.74s p(90)=2.25s p(95)=2.56s p(99.9)=14.43s
{ expected_response:true }...: avg=1.23s min=7.38ms med=1.15s max=15.74s p(90)=2.25s p(95)=2.56s p(99.9)=14.43s
http_req_failed................: 0.00% ✓ 0 ✗ 10553
http_req_receiving.............: avg=93.62µs min=26.98µs med=74.02µs max=11.75ms p(90)=123.41µs p(95)=154.1µs p(99.9)=1.65ms
http_req_sending...............: avg=54.6µs min=5.04µs med=14.42µs max=34.73ms p(90)=29.15µs p(95)=49.01µs p(99.9)=9.45ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=1.23s min=7.29ms med=1.15s max=15.74s p(90)=2.25s p(95)=2.56s p(99.9)=14.43s
http_reqs......................: 10553 153.013493/s
iteration_duration.............: avg=1.36s min=8.09ms med=1.3s max=15.75s p(90)=2.3s p(95)=2.61s p(99.9)=14.56s
iterations.....................: 9553 138.513968/s
success_rate...................: 100.00% ✓ 9553 ✗ 0
vus............................: 66 min=0 max=500
vus_max........................: 500 min=500 max=500
Performance Overview
HTTP Overview
Overview for:
|
| Gateway | RPS ⬇️ | Requests | Duration | Notes |
|---|---|---|---|---|
| grafbase | 172 | 13990 total, 0 failed | avg: 216ms, p95: 228ms | ✅ |
| hive-router | 165 | 13393 total, 0 failed | avg: 225ms, p95: 238ms | ✅ |
| cosmo | 160 | 12997 total, 0 failed | avg: 232ms, p95: 254ms | ✅ |
| hive-gateway | 141 | 11543 total, 0 failed | avg: 262ms, p95: 272ms | ✅ |
| hive-gateway-bun | 137 | 11190 total, 0 failed | avg: 270ms, p95: 294ms | ✅ |
| apollo-router | 123 | 10097 total, 0 failed | avg: 299ms, p95: 345ms | ✅ |
| apollo-gateway | 85 | 6975 total, 0 failed | avg: 434ms, p95: 478ms | ✅ |
Summary for: `grafbase`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 41670 ✗ 0
data_received..................: 1.2 GB 15 MB/s
data_sent......................: 16 MB 201 kB/s
http_req_blocked...............: avg=19.18µs min=1.22µs med=1.9µs max=9.28ms p(90)=3.34µs p(95)=4.74µs p(99.9)=6.78ms
http_req_connecting............: avg=16.64µs min=0s med=0s max=9.24ms p(90)=0s p(95)=0s p(99.9)=6.76ms
http_req_duration..............: avg=216.37ms min=110.77ms med=215.49ms max=621.4ms p(90)=225.39ms p(95)=228.14ms p(99.9)=525.8ms
{ expected_response:true }...: avg=216.37ms min=110.77ms med=215.49ms max=621.4ms p(90)=225.39ms p(95)=228.14ms p(99.9)=525.8ms
http_req_failed................: 0.00% ✓ 0 ✗ 13990
http_req_receiving.............: avg=83.14µs min=25.54µs med=45.49µs max=13.88ms p(90)=94.4µs p(95)=253.02µs p(99.9)=4.39ms
http_req_sending...............: avg=136.73µs min=6.16µs med=8.56µs max=374.38ms p(90)=32.5µs p(95)=98.09µs p(99.9)=8.74ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=216.15ms min=110.72ms med=215.38ms max=620.64ms p(90)=225.24ms p(95)=227.96ms p(99.9)=507.25ms
http_reqs......................: 13990 172.589458/s
iteration_duration.............: avg=216.69ms min=111.01ms med=215.75ms max=634.14ms p(90)=225.61ms p(95)=228.35ms p(99.9)=541.76ms
iterations.....................: 13890 171.355795/s
success_rate...................: 100.00% ✓ 13890 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-router`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 39879 ✗ 0
data_received..................: 1.2 GB 15 MB/s
data_sent......................: 16 MB 193 kB/s
http_req_blocked...............: avg=40.45µs min=1.18µs med=2.28µs max=277.93ms p(90)=3.49µs p(95)=4.88µs p(99.9)=6.93ms
http_req_connecting............: avg=16.76µs min=0s med=0s max=8.85ms p(90)=0s p(95)=0s p(99.9)=6.6ms
http_req_duration..............: avg=225.36ms min=161.68ms med=224.42ms max=601.33ms p(90)=234.6ms p(95)=237.52ms p(99.9)=503.13ms
{ expected_response:true }...: avg=225.36ms min=161.68ms med=224.42ms max=601.33ms p(90)=234.6ms p(95)=237.52ms p(99.9)=503.13ms
http_req_failed................: 0.00% ✓ 0 ✗ 13393
http_req_receiving.............: avg=81.43µs min=26.58µs med=43.79µs max=17.1ms p(90)=93.35µs p(95)=251.87µs p(99.9)=4.8ms
http_req_sending...............: avg=72.78µs min=5.65µs med=9.63µs max=261.98ms p(90)=30.05µs p(95)=99.22µs p(99.9)=5.62ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=225.21ms min=158.61ms med=224.32ms max=600.64ms p(90)=234.46ms p(95)=237.35ms p(99.9)=502.31ms
http_reqs......................: 13393 165.619805/s
iteration_duration.............: avg=225.8ms min=161.85ms med=224.69ms max=628.14ms p(90)=234.81ms p(95)=237.78ms p(99.9)=539.63ms
iterations.....................: 13293 164.38319/s
success_rate...................: 100.00% ✓ 13293 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `cosmo`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 38691 ✗ 0
data_received..................: 1.1 GB 14 MB/s
data_sent......................: 15 MB 187 kB/s
http_req_blocked...............: avg=21.07µs min=1.36µs med=2.7µs max=9.31ms p(90)=3.91µs p(95)=4.97µs p(99.9)=6.89ms
http_req_connecting............: avg=17.68µs min=0s med=0s max=9.27ms p(90)=0s p(95)=0s p(99.9)=6.87ms
http_req_duration..............: avg=232.16ms min=135.08ms med=231.74ms max=630.32ms p(90)=248.58ms p(95)=253.91ms p(99.9)=526.44ms
{ expected_response:true }...: avg=232.16ms min=135.08ms med=231.74ms max=630.32ms p(90)=248.58ms p(95)=253.91ms p(99.9)=526.44ms
http_req_failed................: 0.00% ✓ 0 ✗ 12997
http_req_receiving.............: avg=301.82µs min=29.98µs med=62.4µs max=270.17ms p(90)=170.79µs p(95)=480.25µs p(99.9)=25.31ms
http_req_sending...............: avg=66.86µs min=6.18µs med=10.88µs max=255.4ms p(90)=28.9µs p(95)=121.52µs p(99.9)=3.5ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=231.79ms min=135.02ms med=231.44ms max=629.39ms p(90)=248.06ms p(95)=253.55ms p(99.9)=525.7ms
http_reqs......................: 12997 160.545401/s
iteration_duration.............: avg=232.72ms min=135.31ms med=232.12ms max=654.52ms p(90)=248.93ms p(95)=254.22ms p(99.9)=569.11ms
iterations.....................: 12897 159.310152/s
success_rate...................: 100.00% ✓ 12897 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 34329 ✗ 0
data_received..................: 1.0 GB 13 MB/s
data_sent......................: 13 MB 165 kB/s
http_req_blocked...............: avg=30.71µs min=1.15µs med=2.47µs max=12.03ms p(90)=3.94µs p(95)=5.23µs p(99.9)=9.74ms
http_req_connecting............: avg=27.49µs min=0s med=0s max=11.98ms p(90)=0s p(95)=0s p(99.9)=9.72ms
http_req_duration..............: avg=261.61ms min=174.45ms med=260.29ms max=693.26ms p(90)=269.18ms p(95)=272.11ms p(99.9)=598.68ms
{ expected_response:true }...: avg=261.61ms min=174.45ms med=260.29ms max=693.26ms p(90)=269.18ms p(95)=272.11ms p(99.9)=598.68ms
http_req_failed................: 0.00% ✓ 0 ✗ 11543
http_req_receiving.............: avg=89.63µs min=25.87µs med=45.48µs max=111.69ms p(90)=94.53µs p(95)=289.76µs p(99.9)=1.95ms
http_req_sending...............: avg=148.76µs min=5.53µs med=10.28µs max=333.27ms p(90)=32.91µs p(95)=123.19µs p(99.9)=6.13ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=261.38ms min=170.48ms med=260.17ms max=691.74ms p(90)=269.01ms p(95)=271.94ms p(99.9)=589.03ms
http_reqs......................: 11543 141.89038/s
iteration_duration.............: avg=262.38ms min=174.74ms med=260.59ms max=737.25ms p(90)=269.47ms p(95)=272.39ms p(99.9)=623.08ms
iterations.....................: 11443 140.661147/s
success_rate...................: 100.00% ✓ 11443 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-gateway-bun`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 33270 ✗ 0
data_received..................: 983 MB 12 MB/s
data_sent......................: 13 MB 160 kB/s
http_req_blocked...............: avg=30.91µs min=1.15µs med=2.55µs max=11.69ms p(90)=4.13µs p(95)=5.42µs p(99.9)=9.34ms
http_req_connecting............: avg=27.6µs min=0s med=0s max=11.64ms p(90)=0s p(95)=0s p(99.9)=9.32ms
http_req_duration..............: avg=270.2ms min=176.21ms med=277.48ms max=943.65ms p(90)=289.05ms p(95)=293.64ms p(99.9)=847.74ms
{ expected_response:true }...: avg=270.2ms min=176.21ms med=277.48ms max=943.65ms p(90)=289.05ms p(95)=293.64ms p(99.9)=847.74ms
http_req_failed................: 0.00% ✓ 0 ✗ 11190
http_req_receiving.............: avg=96.19µs min=26µs med=47.41µs max=17.83ms p(90)=119.65µs p(95)=351.62µs p(99.9)=3.58ms
http_req_sending...............: avg=139.25µs min=5.4µs med=10.63µs max=393.72ms p(90)=36.49µs p(95)=127.19µs p(99.9)=10.92ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=269.97ms min=176.07ms med=277.35ms max=942.42ms p(90)=288.86ms p(95)=293.37ms p(99.9)=846.22ms
http_reqs......................: 11190 137.270992/s
iteration_duration.............: avg=271.2ms min=176.53ms med=277.82ms max=959.12ms p(90)=289.35ms p(95)=293.98ms p(99.9)=867.78ms
iterations.....................: 11090 136.044263/s
success_rate...................: 100.00% ✓ 11090 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-router`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 29991 ✗ 0
data_received..................: 886 MB 11 MB/s
data_sent......................: 12 MB 144 kB/s
http_req_blocked...............: avg=27.07µs min=1.59µs med=2.77µs max=9.52ms p(90)=4.11µs p(95)=5.05µs p(99.9)=7.57ms
http_req_connecting............: avg=23.58µs min=0s med=0s max=9.48ms p(90)=0s p(95)=0s p(99.9)=7.55ms
http_req_duration..............: avg=299.33ms min=149.08ms med=300.66ms max=710.63ms p(90)=336.14ms p(95)=344.88ms p(99.9)=629.96ms
{ expected_response:true }...: avg=299.33ms min=149.08ms med=300.66ms max=710.63ms p(90)=336.14ms p(95)=344.88ms p(99.9)=629.96ms
http_req_failed................: 0.00% ✓ 0 ✗ 10097
http_req_receiving.............: avg=93.47µs min=37.1µs med=52.7µs max=36.33ms p(90)=102.59µs p(95)=276.69µs p(99.9)=1.82ms
http_req_sending...............: avg=112.34µs min=6.76µs med=11.18µs max=289.7ms p(90)=31.27µs p(95)=138.79µs p(99.9)=3.76ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=299.12ms min=148.95ms med=300.49ms max=709.2ms p(90)=335.97ms p(95)=344.53ms p(99.9)=628.9ms
http_reqs......................: 10097 123.775948/s
iteration_duration.............: avg=300.61ms min=149.32ms med=301.21ms max=728.07ms p(90)=336.64ms p(95)=345.35ms p(99.9)=674.08ms
iterations.....................: 9997 122.550079/s
success_rate...................: 100.00% ✓ 9997 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 20625 ✗ 0
data_received..................: 613 MB 7.5 MB/s
data_sent......................: 8.1 MB 99 kB/s
http_req_blocked...............: avg=45.83µs min=1.43µs med=3.13µs max=11.48ms p(90)=4.86µs p(95)=5.6µs p(99.9)=9.93ms
http_req_connecting............: avg=41.97µs min=0s med=0s max=11.44ms p(90)=0s p(95)=0s p(99.9)=9.9ms
http_req_duration..............: avg=433.58ms min=210.69ms med=437.02ms max=938.41ms p(90)=463.44ms p(95)=478.13ms p(99.9)=851.51ms
{ expected_response:true }...: avg=433.58ms min=210.69ms med=437.02ms max=938.41ms p(90)=463.44ms p(95)=478.13ms p(99.9)=851.51ms
http_req_failed................: 0.00% ✓ 0 ✗ 6975
http_req_receiving.............: avg=90.16µs min=32.94µs med=54.98µs max=102.22ms p(90)=101.42µs p(95)=119.64µs p(99.9)=693.17µs
http_req_sending...............: avg=114.46µs min=6.56µs med=12.59µs max=211.24ms p(90)=20.82µs p(95)=28.91µs p(99.9)=5.89ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=433.38ms min=210.59ms med=436.94ms max=910.39ms p(90)=463.29ms p(95)=477.99ms p(99.9)=850.36ms
http_reqs......................: 6975 85.382747/s
iteration_duration.............: avg=437.34ms min=265.63ms med=437.57ms max=998.87ms p(90)=464.07ms p(95)=478.87ms p(99.9)=885.26ms
iterations.....................: 6875 84.158622/s
success_rate...................: 100.00% ✓ 6875 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Overview for:
|
| Gateway | RPS ⬇️ | Requests | Duration | Notes |
|---|---|---|---|---|
| grafbase | 174 | 14089 total, 0 failed | avg: 214ms, p95: 226ms | ✅ |
| hive-router | 168 | 13644 total, 0 failed | avg: 221ms, p95: 232ms | ✅ |
| cosmo | 165 | 13444 total, 0 failed | avg: 225ms, p95: 248ms | ✅ |
| hive-gateway | 147 | 12054 total, 0 failed | avg: 251ms, p95: 265ms | ✅ |
| hive-gateway-bun | 147 | 12051 total, 0 failed | avg: 251ms, p95: 271ms | ✅ |
| apollo-router | 130 | 10681 total, 0 failed | avg: 283ms, p95: 327ms | ❌ 2 unexpected GraphQL errors |
| apollo-gateway | 120 | 9823 total, 0 failed | avg: 308ms, p95: 343ms | ✅ |
Summary for: `grafbase`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 41967 ✗ 0
data_received..................: 1.2 GB 15 MB/s
data_sent......................: 16 MB 203 kB/s
http_req_blocked...............: avg=18µs min=1.24µs med=1.91µs max=8.57ms p(90)=3.32µs p(95)=4.21µs p(99.9)=6.27ms
http_req_connecting............: avg=15.5µs min=0s med=0s max=8.54ms p(90)=0s p(95)=0s p(99.9)=6.26ms
http_req_duration..............: avg=214.47ms min=158ms med=213.71ms max=607.51ms p(90)=222.9ms p(95)=225.5ms p(99.9)=510.31ms
{ expected_response:true }...: avg=214.47ms min=158ms med=213.71ms max=607.51ms p(90)=222.9ms p(95)=225.5ms p(99.9)=510.31ms
http_req_failed................: 0.00% ✓ 0 ✗ 14089
http_req_receiving.............: avg=71.15µs min=24.95µs med=43.23µs max=9.62ms p(90)=84.28µs p(95)=251.43µs p(99.9)=1.77ms
http_req_sending...............: avg=146.27µs min=5.34µs med=8.08µs max=364.04ms p(90)=24.34µs p(95)=98.01µs p(99.9)=8.68ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=214.25ms min=157.96ms med=213.62ms max=606.68ms p(90)=222.72ms p(95)=225.31ms p(99.9)=491.69ms
http_reqs......................: 14089 174.102114/s
iteration_duration.............: avg=214.77ms min=158.16ms med=213.97ms max=622.18ms p(90)=223.1ms p(95)=225.69ms p(99.9)=528.82ms
iterations.....................: 13989 172.866383/s
success_rate...................: 100.00% ✓ 13989 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-router`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 40632 ✗ 0
data_received..................: 1.2 GB 15 MB/s
data_sent......................: 16 MB 196 kB/s
http_req_blocked...............: avg=19.33µs min=1.21µs med=2.01µs max=8.8ms p(90)=3.25µs p(95)=4.52µs p(99.9)=6.56ms
http_req_connecting............: avg=16.43µs min=0s med=0s max=8.76ms p(90)=0s p(95)=0s p(99.9)=6.54ms
http_req_duration..............: avg=221.21ms min=157.43ms med=220.32ms max=606.34ms p(90)=229.04ms p(95)=232.17ms p(99.9)=509.91ms
{ expected_response:true }...: avg=221.21ms min=157.43ms med=220.32ms max=606.34ms p(90)=229.04ms p(95)=232.17ms p(99.9)=509.91ms
http_req_failed................: 0.00% ✓ 0 ✗ 13644
http_req_receiving.............: avg=69.14µs min=24.25µs med=41.62µs max=11.31ms p(90)=85.31µs p(95)=233.63µs p(99.9)=1.08ms
http_req_sending...............: avg=90.14µs min=5.38µs med=8.27µs max=364.88ms p(90)=27.93µs p(95)=93.77µs p(99.9)=6.01ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=221.05ms min=157.38ms med=220.23ms max=605.61ms p(90)=228.93ms p(95)=232.01ms p(99.9)=500.2ms
http_reqs......................: 13644 168.857213/s
iteration_duration.............: avg=221.54ms min=157.58ms med=220.57ms max=616.49ms p(90)=229.23ms p(95)=232.35ms p(99.9)=520.2ms
iterations.....................: 13544 167.61962/s
success_rate...................: 100.00% ✓ 13544 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `cosmo`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 40032 ✗ 0
data_received..................: 1.2 GB 15 MB/s
data_sent......................: 16 MB 193 kB/s
http_req_blocked...............: avg=21.52µs min=1.47µs med=2.64µs max=9.36ms p(90)=3.93µs p(95)=5.2µs p(99.9)=7.01ms
http_req_connecting............: avg=17.81µs min=0s med=0s max=9.32ms p(90)=0s p(95)=0s p(99.9)=6.99ms
http_req_duration..............: avg=224.82ms min=130.92ms med=223.43ms max=638.6ms p(90)=242.43ms p(95)=248.31ms p(99.9)=518.66ms
{ expected_response:true }...: avg=224.82ms min=130.92ms med=223.43ms max=638.6ms p(90)=242.43ms p(95)=248.31ms p(99.9)=518.66ms
http_req_failed................: 0.00% ✓ 0 ✗ 13444
http_req_receiving.............: avg=440.1µs min=32.5µs med=60.48µs max=153.33ms p(90)=309.07µs p(95)=734.83µs p(99.9)=26.76ms
http_req_sending...............: avg=95.31µs min=6.58µs med=10.92µs max=284.67ms p(90)=31.59µs p(95)=123.39µs p(99.9)=4.15ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=224.28ms min=126.67ms med=223.01ms max=623.52ms p(90)=241.82ms p(95)=247.82ms p(99.9)=504.64ms
http_reqs......................: 13444 165.841584/s
iteration_duration.............: avg=225.29ms min=131.16ms med=223.84ms max=647.84ms p(90)=242.78ms p(95)=248.59ms p(99.9)=553.37ms
iterations.....................: 13344 164.608011/s
success_rate...................: 100.00% ✓ 13344 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 35862 ✗ 0
data_received..................: 1.1 GB 13 MB/s
data_sent......................: 14 MB 172 kB/s
http_req_blocked...............: avg=26.72µs min=1.21µs med=2.57µs max=11.35ms p(90)=4.36µs p(95)=5.59µs p(99.9)=8.44ms
http_req_connecting............: avg=23.35µs min=0s med=0s max=11.32ms p(90)=0s p(95)=0s p(99.9)=8.38ms
http_req_duration..............: avg=250.78ms min=165.79ms med=248.95ms max=981.31ms p(90)=259.57ms p(95)=264.55ms p(99.9)=871.84ms
{ expected_response:true }...: avg=250.78ms min=165.79ms med=248.95ms max=981.31ms p(90)=259.57ms p(95)=264.55ms p(99.9)=871.84ms
http_req_failed................: 0.00% ✓ 0 ✗ 12054
http_req_receiving.............: avg=90.99µs min=26.52µs med=47.05µs max=144.1ms p(90)=98µs p(95)=174.21µs p(99.9)=2.64ms
http_req_sending...............: avg=88.24µs min=5.44µs med=10.47µs max=111.57ms p(90)=32.57µs p(95)=106.35µs p(99.9)=6.56ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=250.61ms min=165.72ms med=248.84ms max=980.49ms p(90)=259.44ms p(95)=264.36ms p(99.9)=871.11ms
http_reqs......................: 12054 147.823048/s
iteration_duration.............: avg=251.51ms min=165.96ms med=249.26ms max=1s p(90)=259.88ms p(95)=264.82ms p(99.9)=884.55ms
iterations.....................: 11954 146.596708/s
success_rate...................: 100.00% ✓ 11954 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `hive-gateway-bun`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 35853 ✗ 0
data_received..................: 1.1 GB 13 MB/s
data_sent......................: 14 MB 172 kB/s
http_req_blocked...............: avg=26.56µs min=1.15µs med=2.37µs max=11.31ms p(90)=3.9µs p(95)=5.03µs p(99.9)=8.64ms
http_req_connecting............: avg=23.41µs min=0s med=0s max=11.27ms p(90)=0s p(95)=0s p(99.9)=8.61ms
http_req_duration..............: avg=251.1ms min=168.58ms med=249.17ms max=693.85ms p(90)=265.97ms p(95)=270.85ms p(99.9)=581.6ms
{ expected_response:true }...: avg=251.1ms min=168.58ms med=249.17ms max=693.85ms p(90)=265.97ms p(95)=270.85ms p(99.9)=581.6ms
http_req_failed................: 0.00% ✓ 0 ✗ 12051
http_req_receiving.............: avg=80.65µs min=24.84µs med=44.12µs max=15.94ms p(90)=92.72µs p(95)=219.71µs p(99.9)=3.44ms
http_req_sending...............: avg=71.7µs min=5.29µs med=9.96µs max=187.4ms p(90)=31.08µs p(95)=103.73µs p(99.9)=4.2ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=250.94ms min=168.18ms med=249.02ms max=692.77ms p(90)=265.83ms p(95)=270.7ms p(99.9)=580.69ms
http_reqs......................: 12051 147.853553/s
iteration_duration.............: avg=251.74ms min=168.75ms med=249.54ms max=704.46ms p(90)=266.25ms p(95)=271.21ms p(99.9)=598.31ms
iterations.....................: 11951 146.626655/s
success_rate...................: 100.00% ✓ 11951 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-router`
K6 Output
✓ response code was 200
✗ no graphql errors
↳ 99% — ✓ 10579 / ✗ 2
✓ valid response structure
checks.........................: 99.99% ✓ 31741 ✗ 2
data_received..................: 937 MB 12 MB/s
data_sent......................: 12 MB 152 kB/s
http_req_blocked...............: avg=18.92µs min=1.69µs med=3.18µs max=6.11ms p(90)=4.95µs p(95)=6.04µs p(99.9)=4.75ms
http_req_connecting............: avg=14.52µs min=0s med=0s max=6.08ms p(90)=0s p(95)=0s p(99.9)=4.73ms
http_req_duration..............: avg=283.12ms min=169.77ms med=284.19ms max=667.09ms p(90)=317.66ms p(95)=327.44ms p(99.9)=574.2ms
{ expected_response:true }...: avg=283.12ms min=169.77ms med=284.19ms max=667.09ms p(90)=317.66ms p(95)=327.44ms p(99.9)=574.2ms
http_req_failed................: 0.00% ✓ 0 ✗ 10681
http_req_receiving.............: avg=116.01µs min=27.33µs med=57.79µs max=9.94ms p(90)=145.02µs p(95)=442.11µs p(99.9)=3.6ms
http_req_sending...............: avg=97.28µs min=7.09µs med=11.95µs max=285.83ms p(90)=37.39µs p(95)=154.2µs p(99.9)=3.16ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=282.9ms min=169.7ms med=284.04ms max=666.27ms p(90)=317.44ms p(95)=327.17ms p(99.9)=573.31ms
http_reqs......................: 10681 130.797607/s
iteration_duration.............: avg=284.14ms min=170.03ms med=284.78ms max=681.58ms p(90)=318.21ms p(95)=327.82ms p(99.9)=613.02ms
iterations.....................: 10581 129.573025/s
success_rate...................: 99.98% ✓ 10579 ✗ 2
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
Summary for: `apollo-gateway`
K6 Output
✓ response code was 200
✓ no graphql errors
✓ valid response structure
checks.........................: 100.00% ✓ 29169 ✗ 0
data_received..................: 863 MB 11 MB/s
data_sent......................: 11 MB 140 kB/s
http_req_blocked...............: avg=34.23µs min=1.35µs med=3.19µs max=11.73ms p(90)=4.93µs p(95)=5.84µs p(99.9)=9.6ms
http_req_connecting............: avg=29.79µs min=0s med=0s max=11.7ms p(90)=0s p(95)=0s p(99.9)=9.57ms
http_req_duration..............: avg=307.55ms min=210.61ms med=305.49ms max=791.56ms p(90)=332.6ms p(95)=343.09ms p(99.9)=723.25ms
{ expected_response:true }...: avg=307.55ms min=210.61ms med=305.49ms max=791.56ms p(90)=332.6ms p(95)=343.09ms p(99.9)=723.25ms
http_req_failed................: 0.00% ✓ 0 ✗ 9823
http_req_receiving.............: avg=80.77µs min=30.78µs med=59.45µs max=9.34ms p(90)=109.23µs p(95)=135.17µs p(99.9)=2.14ms
http_req_sending...............: avg=92.7µs min=6.38µs med=12.94µs max=308.05ms p(90)=23.42µs p(95)=38.87µs p(99.9)=3.04ms
http_req_tls_handshaking.......: avg=0s min=0s med=0s max=0s p(90)=0s p(95)=0s p(99.9)=0s
http_req_waiting...............: avg=307.37ms min=210.52ms med=305.4ms max=790.16ms p(90)=332.39ms p(95)=342.93ms p(99.9)=721.95ms
http_reqs......................: 9823 120.447217/s
iteration_duration.............: avg=309.02ms min=226.29ms med=306.05ms max=832.29ms p(90)=333.04ms p(95)=343.49ms p(99.9)=780.98ms
iterations.....................: 9723 119.221041/s
success_rate...................: 100.00% ✓ 9723 ✗ 0
vus............................: 50 min=0 max=50
vus_max........................: 50 min=50 max=50
Performance Overview
HTTP Overview
# Conflicts: # gateways/hive-gateway-bun/package.json # gateways/hive-gateway/package.json # package-lock.json
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
Related graphql-hive/gateway#1629
Also
