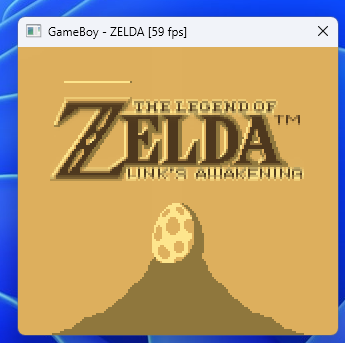

The stray line above the logo is a raster-effect bug, not DIV/TIMA
The game does not touch the timer at all here: over the whole intro (9000 frames
traced, every access to FF00-FF4F) there is not a single read or write of
FF04/FF05/FF06/FF07 - TAC stays 0 the entire time. So DIV/TIMA timing is not
involved.
What the game actually does
The unfolding "ZELDA" logo is driven by a per-scanline SCY effect. The routine
at $6DB7 (bank 1):
6DE6 F0 44 LDH A,($FF44) ; wait for LY == $10
6DE8 FE 10 CP $10
6DEA 20 FA JR NZ,$6DE6
6DEC F0 41 LDH A,($FF41) ; wait for HBlank (mode 0)
6DEE E6 03 AND $03
6DF0 20 FA JR NZ,$6DEC
...
6E1A 7E LD A,(HL) ; table[i]
6E1E 86 ADD A,(HL) ; + SCY base at $FF97
6E1F E0 42 LDH ($FF42),A ; SCY for this line
It writes SCY once per line for lines $11..$4A, from the 17 stage tables at $6D84/$6DA6 (base $FF97 walks $5F -> $6F), plus BGP=$55 to blank the
part of the screen that is not revealed yet.
Root cause
gb.cpp drew the line before the CPU's mode 3 time:
STAT_MODE(3);
ppu_refreshline(); // line already drawn ...
execute(43); // ... but the CPU writes SCY in here
The game's SCY write lands a few M-cycles into line N (STAT reads 42/43), so it
belongs to line N - the PPU reads SCX/SCY while it fetches the line. Drawing the
line first pushed that write onto line N+1.
On line 17 the game asks for SCY $5F/$6B depending on the stage, i.e. source
row 112/124 - a blank row. The emulator used the previous SCY $6F, which is
source row 128, i.e. row 0 of the logo bitmap (ROM $3C900 copied to VRAM $8800 at $2CF0). That row is exactly the thin light line - hence
"some weird line above ZELDA logo", floating above the logo during the unfold.
Fix
Draw the line after the CPU has had its mode 3 time (one line moved, gb.cpp):
STAT_MODE(3); /* no interrupt here !! */
execute(43);
ppu_refreshline();
Verification
Tested with the ZELDA.st0 attached to this issue (debug build, frame dumps):
the dump frame matches the screenshot in the report;
with the fix the stray line is gone, and the logo unfolds cleanly;
the fix changes only frames 251..283 (the unfold); frames before and after
are pixel identical;
