This document briefly describes key MindForger features.

Basics

desktop

MindForger uses the following terminology:

In short:

  • The MindForger workspace is analogous the desktop of an office desk.
    • The MindForger notebook analogous to a notepad on the desktop.
      • A MindForger note is analogous to a page with the note from a notepad.

For more details see Basics section in the Getting Started guide.

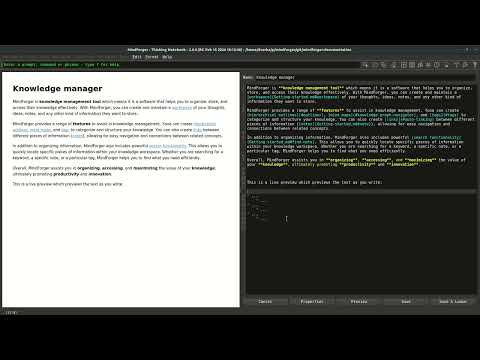

Knowledge manager

MindForger is knowledge management tool which means it is a software that helps you to organize, store, and access their knowledge effectively. With MindForger, you can create and maintain a workspace of your thoughts, ideas, notes, and any other kind of information they want to store.

MindForger provides a range of features to assist in knowledge management. Youa can create hierarchical outlines, mind maps, and tags to categorize and structure your knowledge. You can also create links between different pieces of information (notes), allowing for easy navigation and connections between related concepts.

In addition to organizing information, MindForger also includes powerful search functionality. This allows you to quickly locate specific pieces of information within your knowledge workspace. Whether you are searching for a keyword, a specific note, or a particular tag, MindForger helps you to find what you need efficiently.

Overall, MindForger assists you in organizing, accessing, and maximizing the value of your knowledge, ultimately promoting productivity and innovation.

Create Notebook

Create new notebook as follows:

  1. open menu Notebook
    • 💡 if Notebook menu is disabled, then open list of notebooks (menu View / Notebooks) or notebooks tree (menu View / Notebooks Tree)
  2. choose New menu item
  3. New Notebook dialog is opened:
    • type in notebook name
    • feel free modify notebook creation options and tags
  4. click OK to create the notebook

Create Note

Create new note as follows:

  1. open menu Note
    • 💡 if Note menu might is disabled, then open the notebook in which you want to add the note
  2. choose New menu item
  3. New Note dialog is opened:
    • type in note name
    • feel free modify note creation options and tags
  4. click OK to create the note

Edit Note

When you are viewing a note, you can edit it using one of the options below:

  • Double click the mouse preview.
  • Use Ctrl-e keyboard shortcut (Linux/Win).
  • Use Alt-n e keyboard shortcut (Linux/Win).

Once you finish editing the note you can save it and preview using one of the options below:

  • Use Alt-⬅ keyboard shortcut.
  • Click Save & Leave button at the bottom of the editor.

Open Notebook

Open notebook as follows:

  1. open list of notebooks (menu View / Notebooks) or notebooks tree (menu View / Notebooks Tree)
  2. choose the notebook you want to open
  3. open the notebook using one of the following options:
    • hit Enter key
    • double-click the notebook row in the list/tree

Outliner

v

An outliner is a feature used in word processing, note-taking, and organizational software to help users outline and structure their ideas. Outlining actions in MindForger allow users to create hierarchies or levels of information by, making it easier to organize and navigate through a Notebook:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Promote
      • to move note one level up in hierarchy (depth)
    • Demote
      • to move note one level down in hierarchy (depth)
    • Move to first
      • move note to the first from the top on its level (depth)
    • Move up
      • move note one position up on its level (depth)
    • Move down
      • move note one position down on its level (depth)
    • Move to last
      • move note to the last from the top on its level (depth)

Outlining is a powerful tool that allows you to organize your thoughts and make your remarks structured, comprehensible, and scalable.

Promote note

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Promote
      • to move note one level up in hierarchy (depth)

Demote note

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Demote
      • to move note one level down in hierarchy (depth)

Move to first

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Move to first
      • move note to the first from the top on its level (depth)

Up

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Move up
      • move note one position up on its level (depth)

Down

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Move down
      • move note one position down on its level (depth)

Move to last

Promote note as follows:

  1. open a notebook
  2. choose and view a note in the note tree
  3. open menu Note
  4. choose one of the outlining actions
    • Move to last
      • move note to the last from the top on its level (depth)

Live Preview

v

Easily toggle live HTML preview of edited Markdown with shortcut or edit panel buttons.

View and Edit mode


If you want to edit a section either double-click anywhere in the rendered preview on the right (MindForger window) or choose:

  • menu Notebook/Edit for title section
  • menu Note/Edit for any sub-section

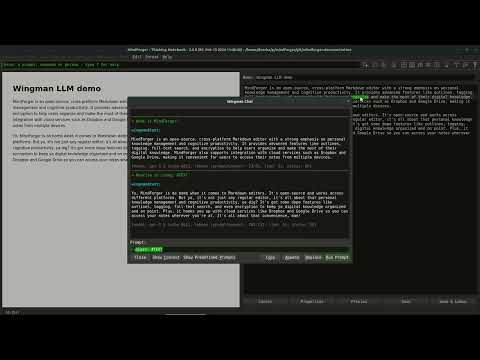

Wingman

v

Wingman is a large language model (LLM) based MindForger's tool which brings note-taking and knowledge management to a new level. With the wingman you can easily expand your notes and knowledge by leveraging the power of artificial intelligence. Whether you need to write an in-depth analysis, draft a blog post, prepare a plan, or simply generate ideas. Wingman can also:

... and much more.

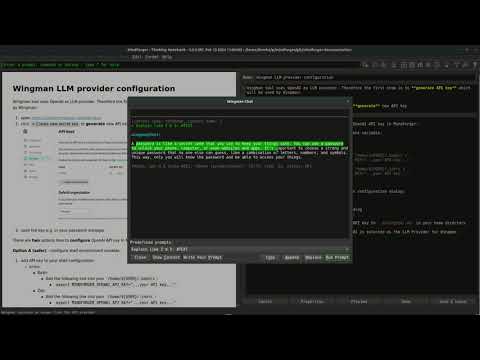

Wingman LLM provider configuration

Wingman tool uses OpenAI as LLM provider. Therefore the first step is to generate API key which will be used by Wingman:

  1. open https://platform.openai.com/api-keys
  2. click + Create new secret key to generate new API key i
  3. save the key e.g. in your password manager

There are two options how to configure OpenAI API key in MindForger:

Option A (safer) - configure shell environment variable:

  1. add API key to your shell configuration:
    • Linux:
      • Bash:
        • Add the following line into your /home/${USER}/.bashrc:
          • export MINDFORGER_OPENAI_API_KEY="...your API key..."
      • Zsh:
        • Add the following line into your /home/${USER}/.zshrc:
          • export MINDFORGER_OPENAI_API_KEY="...your API key..."
  2. start new shell
  3. run MindForger

Option B - set the API key in the MindForger configuration dialog:

  1. open menu Workspace
  2. choose Preferences menu item
  3. select Wingman tab in the configuration dialog
  4. paste API key to the edit line in the dialog: i
  5. click OK to save unencrypted API key to .mindforger.md in your home directory
  6. restart MindForger
  7. open Preferences dialog to check that OpenAI is selected as the LLM Provider for Wingman i

Fix grammar

v

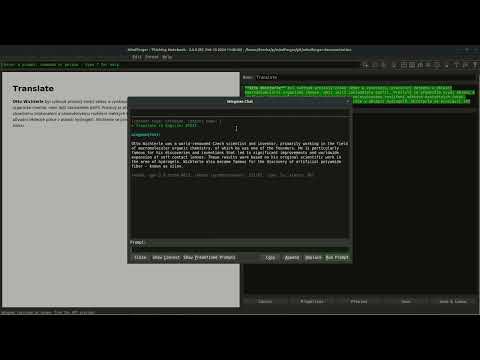

Translate

v

Otto Wichterle byl světově proslulý český vědec a vynálezce, pracující zejména v oblasti makromolekulární organické chemie, mezi jejíž zakladatele patřil. Proslulý je především svými objevy a vynálezy, které vedly k zásadnímu zdokonalení a celosvětovému rozšíření měkkých kontaktních čoček. Tyto výsledky vycházely z jeho původní vědecké práce v oblasti hydrogelů. Wichterle se proslavil též objevem umělého polyamidového vlákna – silonu.

Rewrite

v

Complete text

v

ELI5: Explain like I'm 5

v

Markdown editor

MindForger can be used as a Markdown editor.

It allows you to easily write Markdown documents in a WYSIWYG text editor with Markdow syntax hints and an HTML rendered preview.

MindForger terminology:

  • A Markdown file is a Notebook.
  • A Markdown document section (line with leading #) is a Note.

MindForger represents any Markdown as follows...

Open Markdown file

MindForger can be used to edit a single Markdown file:

$ mindforger analysis.md

If the given file exists, then it's opened for editing, otherwise a new Markdown file with this name is created and opened.

Markdown markup

Markdown is a lightweight markup language for creating formatted text using a plain-text editor. John Gruber and Aaron Swartz created Markdown in 2004 as a markup language that is appealing to human readers in its source code form.[9] Markdown is widely used in blogging, instant messaging, online forums, collaborative software, documentation pages, and readme files. -- Wikipedia

You can write your remarks as plain text without any formatting in MindForger.

However, you may use Markdown markup to emphasize important parts of the text, make links, create lists, etc. MindForger will also use Markdown to store your remarks which enables you to use any Markdown editor or tool.

You don't have to learn Markdown specification as MindForger editor and Format menu will help and guide you.

Markdown mapping

In order to enable quick navigation and refactoring of Markdown documents, MindForger shows Markdown documents (Notebooks) as an outline of Markdown sections (Notes) allowing you to efficiently choose/read/edit/refactor a particular section.


Check side-by-side Markdown document text view and MindForger view in the image above:

  • The INSTALLATION Markdown document is opened in a text editor (Emacs) on the left.
  • The same Markdown document is opened in MindForger on the right.

As you can see, MindForger represents the hierarchy of sections (prefixed/underlined in Markdown syntax with/by #, - or =) as a tree - called an outline:

  • The tree of sections (in the left MindForger window) reflects the depth/level of individual sections e.g. section UBUNTU on the second level is prefixed with ## and shown on the second level in the tree.


  • You can open Markdown document title section (INSTALLATION) by clicking its name INSTALLATION above outline.
  • Any sub-section can be opened by clicking its name in the tree.

For switching between section (pre)view and edit mode refer to the next section.

Document ~ Notebook

Markdown document (file) is represented as notebook in MindForger.

Section ~ Note

Markdown document section is represented as note in MindForger.

Markdown format

Markdown is a plain text formatting syntax introduced by John Gruber. Markdown allows you to write using an easy-to-read, easy-to-write plain text format, easily rendered as HTML.

MindForger uses Markdown-based DSL. There are many flavors of Markdown - for Markdown syntax documentation please refer to:

Sub-sections of this section provide Markdown syntax overview and rendering demonstration. As you read particular Markdown syntax features, be sure to open each section for edit (to check syntax) and experiment with menu Format/*.

Text

Monospace text, emph text, bold text, italic text, bold text, deleted text.

💡 edit this Note to see the syntax

Keyboard keys

You can use Alt+f b to make marked text bold.

💡 edit this Note to see the syntax

Images

See Markdown source of this Note to learn image syntax.

Image from web:

MindForger logo

Image from current MindForger repository:

MF screenshot

💡 edit this Note to see the syntax
💡 click menu Format/Image or press Alt+f m to insert image.

Links

See Markdown source of this Note to learn link syntax.

Link to web:

Automatic web link:

Link to a Notebook in active MindForger repository:

Link to a Note in active MindForger repository:

Link to a file on the filesystem:

Link to a directory on the filesystem:

💡 edit this Note to see the syntax
💡 click menu Format/Link or press Alt+f l to insert link.

Smarty pants

Smarty pants like like:

  • curly " and '
  • ``backsticks''
  • dashes a--ha and a---ha
  • (tm) and (r) and (c)
  • consecutive dots ...
  • 1/4 1/2
  • A^B and a^(b+2)

💡 edit this Note to see the syntax

HR

Horizontal...

... rulers ...

... split screen horizontally.

List

Bullet list:

  • why
    • ?
  • how
    • !
  • what
    • .

Numbered list:

  1. why
    1. ?
  2. how
    1. ?
  3. what
    1. ?

💡 edit this Note to see the syntax

Tasks

Task list:

  • skip-gram
    • bag of words
  • GloWe vs. word2vec
    • word embedding
  • stemmer

💡 edit this Note to see the syntax

Blockquote

Riddle:

frodo and glum,

riddles

in the dark

💡 edit this Note to see the syntax

Tables

Pets:

Snake Turtle
Karkulka Ema
Frontend Backend
Qt C++

Columns can be aligned to left/right or centered:

Left Center Right
This is frontend This is middle-ware This is backend
Js ESB C++

💡 edit this Note to see the syntax

Source code with syntax highlighting

There are multiple options how a block of source code can be written in Markdown.

IMPORTANT: note leading empty lines before code blocks.

  1. Tab indentation w/o language spec and w/o syntax highlighting:

    public static void main(string[] args) { return 0; }

  1. Code block w/ language spec:
    ```java
    ```

public static void main(string[] args) {
    return 0;
}

or w/o language spec:

public static void main(string[] args) {
    return 0;
}
  1. Fenced block w/ language spec:
public static void main(string[] args) {
    return 0;
}

or w/o language spec:

public static void main(string[] args) {
    return 0;
}

💡 edit this Note to see the syntax

Math

i

MathJax handles inline expressions like: x^2 + y^2 = z^2 or block expressions like: $$\frac{D\rho}{Dt} = 0.$$

Check MathJax documentation and/or cheatsheet for more examples.

Quadratic equation root: When (a \ne 0), there are two solutions to (ax^2 + bx + c = 0) and they are $$x = {-b \pm \sqrt{b^2-4ac} \over 2a}.$$

Sum: $$\sum_{i=0}^n i^2 = \frac{(n^2+n)(2n+1)}{6}$$

Limit: $$\lim_{x\to 0}$$

Sqrt: $$\left(\frac{\sqrt x}{y^3}\right)$$

Alternatively you can use https://www.codecogs.com to render expression to image and include it in Markdown.

💡 edit this Note to see the syntax
💡 if math expressions are not rendered, then you must enable MathJax using menu Mind/Adapt/Markdown

MathJax

i

MathJax cheetsheet:

  • use $ to inline expressions, and $$ for blocks
  • superscript: $x^2$
  • subscript: $x_i$
  • superscript and subscript: $x^2_i$
  • Greek letters: $\alpha, \beta, \delta ... \omega, \Delta, ... \Omega$
  • groups: for 10^10 you get $10^10$, but 10^{10} gives $10^{10}$.
  • parenthesis: [, ( and use \{ for curly braces
  • fraction: $\frac{2}{3}$ $\frac{a+b}{c-d}$
  • square: $\sqrt{10}$ $\sqrt[3]{\frac xy}$
  • exponential: $2^8$
  • absolute: $\vert{x}\vert$
  • metric: $\Vert{x}\Vert$
  • interval: $\langle x, y \rangle$
  • sum: $\sum x_i$
  • integral: $\int x_i$ $\iint x_i$ $\iiint x_i$
  • union: $x \cup y$, $\bigcup x$
  • intersection: $x \cap y$, $\bigcap x$
  • limit: $\lim_{x\to 0}$
  • goniometrical: $\sin x$
  • bigger/smaller: $\lt \gt \le \leq \leqq \leqslant \ge \geq \geqq \geqslant$
  • not using n: $\neq$
  • sets: $\cup \cap \setminus \subset \subseteq \subsetneq \supset \in \notin \emptyset \varnothing$
  • combinatorics: $\binom{n+1}{2k}$
  • arrows: $\to \rightarrow \leftarrow \Rightarrow \Leftarrow \mapsto$
  • statements and proofs: $\land \lor \lnot \forall \exists \top \bot \vdash \vDash$
  • long dots: $\ldots$
  • infinity: $\infty \aleph_0 \nabla \partial$
  • limits: $\epsilon \varepsilon$
  • vectors and hats: $\hat x, \bar y, \overline{abc}, \vec x$

Limit block:

$$\lim_{x\to 0}$$

Diagrams

Flowchart diagram:

graph TD;
    A-->B;
    A-->C;
    B-->D;
    C-->D;
Loading

Sequence diagram - note different Mermaid diagram markup encapsulation element which has different background rendering that code block:

sequenceDiagram participant Alice participant Bob Alice->>John: Hello John, how are you? loop Healthcheck John->>John: Fight against hypochondria end Note right of John: Rational thoughts
prevail! John-->>Alice: Great! John->>Bob: How about you? Bob-->>John: Jolly good!

GANTT diagram:

gantt
        dateFormat  YYYY-MM-DD
        title GANTT diagrams in MindForger
        section A section
        Completed task            :done,    des1, 2014-01-06,2014-01-08
        Active task               :active,  des2, 2014-01-09, 3d
        Future task               :         des3, after des2, 5d
        Future task2              :         des4, after des3, 5d
        section Critical tasks
        Completed task in the critical line :crit, done, 2014-01-06,24h
        Implement parser and jison          :crit, done, after des1, 2d
        Create tests for parser             :crit, active, 3d
        Future task in critical line        :crit, 5d
        Create tests for renderer           :2d
        Add to mermaid                      :1d
Loading

💡 edit this Note to see the syntax
💡 if math expressions are not rendered, then you must enable them using menu Mind/Adapt/Markdown

Comments

If you want line or multi-line comment that is strictly for yourself (readers of the converted document should not be able to see it, even with "view source") you could (ab)use the link labels (for use with reference style links) that are available in the core Markdown specification.

Single line comment:

Multi-line comment:

Note that two conditions are important:

  • Using # (and not other delimiter allowed by Markdown specification)
  • An empty line before the comment. Empty line after the comment has no impact on the result.

If you need inline comment, then use HTML comments:

  • There is you cannot see.

💡 edit this Note to see the syntax

Drag & Drop Images and Files

Drag:

  • file
    • ... for example .pdf, presentation or .zip archive
  • image
    • ... .png, .gif, ... or any other image
  • image data
    • ... screenshot or image selection from Gimp, Krita or any other graphics editor

... and drop to Note/Notebook editor.

DnD allows easy import of attachments/images to MindForger repository - either by value (choose Copy in attachment/image dialog) or by reference (path to the file on local file system is used).

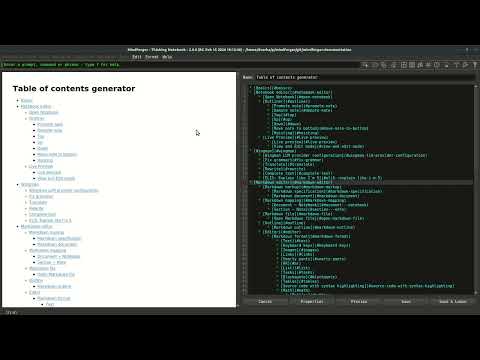

Table of contents generator

v

Link completion

v

While editing a Note or Notebook write prefix of a Notebook/Note name and use Ctrl-/ to get link completion. When you choose a link from completer, Markdown link to target Notebook/Note is automatically created.

Markdown IDE

MindForger is more than just Markdown editor - it is integrated development environment (IDE) for the development of Markdown document collections (repositories, documentation, books, etc.):

  • multiple Markdown documents can be opened in order to perform search, refactoring and analytics
  • user defined stencils can be used to quickly create new notebooks and notes
  • notebook structure can be easily refactored with outliner-style operations defined on notes
  • both notebooks and notes can be refactored withing or across different notebooks and notes

Open Markdown directory

You can open any directory and MindForger will find all Markdown files within the directory and its sub-directories and open them for search, navigation and editing:

$ mindforger a-git-repository-with-interesting-content

For example, you can find an interesting Git repository on GitHub or BitBucket, clone it to your machine and open it with MindForger to easily navigate it.

Multiple documents


You can open any directory and MindForger will find all Markdown files within that directory and all its sub-directories and make them available for search, navigation and editation:

$ mindforger a-github-repository-with-interesting-content

Where a-github-repository-with-interesting-content is a directory containing Markdown documents.

💡 if you openeded more than one MindForger document, you can see all documents indexed by MindForger by clicking menu View/Notebooks

Stencils


Stencil represents a common pattern that can be used in various situations e.g. to solve a task. It might be a how to (like how to change a car wheel) that once created, you may want to use repeatedly w/ possibility of customization.

Notebook stencil corresponds to application of a problem/semantic domain to another problem. Once you have a modus operandi or you know how to do that, than this is the case.

You can use a stencil when creating a new notebook or note - check Stencils drop-down in the dialog opened using menu Notebook/New or Note/New.

MindForger repositories (including the default one) contain stencils for both notebooks and notes:

<mindforger repository>/
├── ...
└── stencils
    ├── notebooks
    └── notes

MindForger is shipped with an initial set of stencils for meeting notes, software analysis/design, GROW model etc.

You can easily extend outlines just by copying Markdown file to stencils/notes or stencils/notebooks directory.

Refactoring


Hierarchy of Notes (Markdown document sections) can be easily changed using operations introduced by outliners. Note can be...

  • moved up
  • moved down
  • demoted ~ moved deeper in Notes hierarchy
  • promoted ~ moved lower in depth
  • ... and more

To manipulate a note, choose it in the outline view (tree of notes/Markdown sections on the left) and either use shortcuts (ctrl+up, ctrl+down, ctrl+left, ctrl+right) or menu Note/Promote, ...

Note refactoring

Note (Markdown section) can be refactoring (along with its child notes) between different Notebooks (Markdown documents):

  • choose source note to be refactored in the outliner tree of notes
  • use menu Note/Refactor to specify target notebook

Note and its child notes will be moved to the target notebook.

Home notebook

You can mark any notebook as home and it will be opened:

  • on MindForger start
  • using CtrlShifth keyboard shortcut

Home notebook can be set/unset using menu Navigator/Make Home.

Search

Ability to find a specific Notebook or Note is one of the most important MindForger features. Notebooks and Notes can be found by:

  • full-text search (content)
  • name
  • tag(s)

💡 see menu Recall for search options

Fulltext

Use menu Recall/Full-text Search to search for notes using full-text search. Result shows notes Markdown source with highlighted matches.

Search scope:

  • If you run full-text search from notebooks view (menu View/Notebooks), then all notebooks and their notes are searched.
  • If you run full-text search when a notebook is opened (notes outline on the left, note view/editor on the right), then only notes of that particular notebook are searched.

Name

Use menu Recall/Recall Notebook by Name / Recall/Recall Note by Name to search for notebooks / notes by name. Result shows as you write the name in the dialog.

Search scope:

  • If you run note search by name from notebooks view (menu View/Notebooks), then all notebooks notes are searched.
  • If you run note search by name when a notebook is opened (notes outline on the left, note view/editor on the right), then only notes of that particular notebook are searched.

Tag

Use menu Recall/Recall Notebook by Tag / Recall/Recall Note by Tag to search for notebooks / notes by tag(s). Result shows as you add/remove tags in the dialog.

Search scope:

  • If you run note search by tag from notebooks view (menu View/Notebooks), then all notebooks notes are searched.
  • If you run note search by tag when a notebook is opened (notes outline on the left, note view/editor on the right), then only notes of that particular notebook are searched.

Thinking Notebook

MindForger aims to mimic human mind - learning, recalling, recognition, associations, forgetting - in order to achieve synergy with your mind to make your searching, reading and writing more productive:

  • learning: MindForger loads Markdown document(s), parses them and construct knowledge graph
  • recalling: you can recall notebooks/notes by content, name, tags, semantic domain, ...
  • recognition: MindForger is able to recognize people, organization, places, ... in your remarks
  • associations: MindForger suggests relevant notes as you browse, read and edit notebooks and notes
  • forgetting: MindForger handles the process of scoping and forgetting analogous to human mind

Learning

...learning data, relationships, similarity (granularity N and O), relevancy in time (timestamps and R/W count), ...

MindForger can be used to learn:

MindForger repository

MindForger repository is a directory with specific structure where MindForger stores your knowledge. It contains Markdown files (Markdown hosted DSL) allowing you to get most of MindForger capabilities.

If you run MindForger without parameters, then it opens the default MindForger repository:

$ mindforger

If MindForger default repository doesn't exist, then it is created on MindForger first start in:

~/mindforger-repository

Repository structure looks like this:

$ tree mindforger-repository/

mindforger-repository/
├── limbo
├── memory
├── mind
└── stencils
    ├── notebooks
    └── notes

Metadata

Tags

Read/write statistics

Progress

Deadlines

Things and types

Relationships

Auto-linking

Autolinking

Autolinking discovers relevant notes in your MindForger repository and/or Markdown document and automatically injects links to the text. In the screenshot above all links were injected i.e. source text (Markdown) is just plain text without links.

Autolinking helps in immediately finding remarks related to the notebooks and notes you are browsing.

Autolinking also saves the time - you don't have to create/change/maintain links in your remarks.

Tips and tricks:

  • If note name contains :, then only text preceding : is used for matching.
    • Example: if "GPS: General positioning system" is note name, then text is searched for "GPS" only as it brings more matcheds.
  • Autolinking can be configured so that it performs case insensitive search for the first letters in note names.
    • Example: if "Stencils" is note name, then text is searched also for "stencils" as it brings more matcheds.
  • Autolinking can be quickly toggled using menu.

TaYR: Think as you Read

TAYR

MindForger is able to suggest relevant notes as you browse and read:

  • relevant notes are computed for the note being currently selected
  • relevant notes are shown in the lower left corner by Associations table
  • similarity score in the Associations table indicates relative relevancy in %

In the screenshot above you can see relevant notes (lower left corner) for the selected note My 3D Printer MK2S by Prusa RESEARCH.

See also: think vs. sleep mode

TaYW: Think as you Write

TAYW

MindForger is able to suggest relevant notes as you write note content in the editor:

  • relevant notes are computed for the word under the cursor
  • relevant notes are shown in the lower left corner by Associations table
  • similarity score in the Associations table indicates relative relevancy in %

In the screenshot above you can see relevant notes (lower left corner) for the selected word graph (notice cursor between letter g and r on the current line with light-gray background).

TaYB: Think as you Browse

Navigator

Knowledge graph navigator allows you to browse notebooks, notes, tags and other resources in visually.

Navigator can be either activated using toolbar or using CtrlShiftk keyboard shortcut. It is scope sensitive e.g. if you activate navigator while viewing note, then this note becomes central node of the visualization.

Knowledge graph can be zoomed, shuffled and its edgest can be (globally) stretched/shrinked.

... how exactly it thinks and why it's useful

TaYS: Think as you Search

...[semantic search - this feature is being implemented - RAG]...

Knowledge graph navigator

"I hear, and I forget; I see, and I remember." -- Chinese proverb

Scopes

MindForger works with two types of scopes:

Time Scope

Use menu Mind/Scope or Alt+m c to configure time scope.

Consider the following situations:

  • Over the years your employer company internal systems change and/or you work for a number of different employers. Each time there is a different/better/stronger Wifi authentication configuration (video conference setup, payslips system, etc.). Therefore in you memory (or in MindForger remarks) there are multiple how-tos, but you want to use only the recent want. At the same time you do not want to (explicitly) remove/purge the previous how-tos as they can be useful in different situations.

  • You learn how to manually divide two long numbers as a child. Then you do not need this skill for years as you use calculator/computer. When you want to learn your child how to manually divide numbers, you have to find it (deep) in your memory.

This is where MindForger time scope functionality comes in - you can restrict the scope (notes working set) by time. For example:

  • you work on a project and want to see only notes you modified today
  • whenever you use MindForger you want to work with notes not older than 18 months
  • when reading/working with your employer internal systems how-to notebook you want to see only notes younger than 1 year

In particular you can set global time scope:

  • Notebooks listing:
    • Only noteboks within given time scope (younger) will be shown.
  • Add/forget notebook:
    • Notebooks can be added/forgotten.
  • Notebook's note tree view:
    • Only notes within given time scope will be shown. If note is within timescope and note's parent notes are not, then note is shown along with its parents (parents would be normally hidden). In other words, fresh note ensures its parents are shown.
  • Add/remove note:
    • Notes can be added/forgotten.
    • IMPORTANT: remember that note can be forgotten along with its child notes that can be hidden (if they didn't match time scope) i.e. you may delete notes you don't see.
  • Promote/demote/up/down note:
    • Notes can be added/forgotten.
    • IMPORTANT: remember that these operations work on the *non-filtered model i.e. you perform operation (e.g. up), nothing seems to happen, but the note was just moved above a hiddin note that is not in scope i.e. you refactor notes you don't see.
  • Note refactoring:
    • Notes can be refactoring (to other notebook) and extracted.
    • IMPORTANT: remember that note can be refactored along with its child notes that can be hidden (if they didn't match time scope) i.e. you may move notes you don't see.

In particular you can set note specific time scope that overrides global time scope:

  • ... behaviour is the same as above except that this setting has no effect on notebooks listing ...

Tag Scope

Use menu Mind/Scope or Alt+m c to configure tag(s) scope.

Scoping using tag(s) allows you to limit notebook working set only to notebooks having specified set of tags. It's useful when you work with bigger MindForger repositoriers and you don't want to be distracted by unrelated notebooks.

Scoping using tags can be combined (AND) with scoping using time.

Recognize what matters

Named-entity recognition


This feature is being implemented.

Semantic search and domains

...[semantic search - this feature is being implemented - RAG]...

Word embeddings based search, associations and navigation.

Forgetting

Motto: "Computers need to forget". -- Viktor Mayer-Schönberger

Before I deep dive to MindForger features let me formulate a few questions to explain the motivation behind forgetting/scoping related functionality:

  • Do we forget or we simply don’t remember?
  • When we forget?
  • How and where exactly forgetting in our minds happens?
  • If we remember something, can it be forgotten?
  • Do we need to forget and why?

I believe that if a concept makes it to long term memory (LTM), then it can be never forgotten. It’s in LTM and it always be there. The only question is how many association/links it has. In the worst case it may happen that there is no association path it it - it ends as an island or orphan better said. If it’s not reminded or not used for long time, association can get weaker and weaker and such concepts is diving deeper and deeper to LTM. However, it is always there. Thus it’s just about the lookup. According to my experience a strong emotional experience or return to the deeper paths of LTM (talking about your friends or family about your early childhood) helps to remind such concepts and in the latter case even strongly bind them to upper level LTM (move them up in the memory) and refresh such memories so that you can remind them later much more easier.

If there would be no possibility of the selection of sensed informations and all the sensing will be fixed in our memory, its capacity would be fully used very soon.

MindForger, as computer program, needs to forget. But forgetting does NOT mean deleting of information.

MindForger maintains all the remarks you ever written (see limbo), but works with/shows only with a scope configurable by you.

Limbo

v

MindForger does not delete notebooks - it moves them to a location called Limbo that can be found in ${ACTIVE_MF_REPOSITORY}/limbo. This is where you can delete Markdown documents permanently.

MindForger, in its current implementation, does delete notes. They are not moved to a note Limbo. If you use menu Note/Forget, then the note is deleted.

Side note: I personally use CMS (Git) - I have full history of notebooks and notes. Tracking of all notes would be useful, however HW resource consumption intensive. This is also why I don't want to duplicate this (already sophisticated) functionality within MindForger.

Productivity

MindForger aims to help you when you study, write a document/paper/article/book or want to achieve a goal.

Therefore it enables you to...

  • prioritize work on notebooks using urgency and importance
  • helps you to decide what you do first and next using Eisenhower matrix
  • track progress in %
  • specify deadlines (for notes)

Urgency and Importance


When creating (menu Notebook/New) or editing notebook (edit mode More... button) you can specify:

  • importance property ~ how important is the notebook
  • urgency property ~ how important is (study/challenge/...) task related to notebook (or notebook content itself)


These properties are in turn shown in notebooks view (menu View/Notebooks) and Eisenhower matrix.

Eisenhower matrix


Wikipedia: Eisenhower matrix stems from a quote attributed to Dwight D. Eisenhower: "I have two kinds of problems, the urgent and the important. The urgent are not important, and the important are never urgent."

Using the Eisenhower Decision Principle, tasks are evaluated using the criteria important/unimportant and urgent/not urgent, and then placed in according quadrants in an Eisenhower Matrix (also known as an "Eisenhower Box" or "Eisenhower Decision Matrix"). Tasks are then handled as follows:

Tasks in

  1. Important/Urgent quadrant are done immediately and personally e.g. crises, deadlines, problems.
  2. Important/Not Urgent quadrant get an end date and are done personally e.g. relationships, planning, recreation.
  3. Unimportant/Urgent quadrant are delegated e.g. interruptions, meetings, activities.
  4. Unimportant/Not Urgent quadrant are dropped e.g. time wasters, pleasant activities, trivia.

This method is said to have been used by U.S. President Dwight D. Eisenhower.

Organizers: tag-based aspects

v

Eisenhower matrix on tags

i

The Eisenhower Matrix, also known as the Eisenhower Decision Matrix or simply the Eisenhower Box, is a time management tool that helps prioritize tasks based on their urgency and importance. It is named after Dwight D. Eisenhower, the 34th President of the United States, who was known for his effective time management skills.

The matrix categorizes tasks into four quadrants:

  1. Urgent and Important (Do First): These are the tasks that require immediate attention and have high priority. They should be done as soon as possible to avoid negative consequences or missed opportunities.

  2. Important, but Not Urgent (Schedule): These tasks are important for long-term goals but do not require immediate action. They should be scheduled and given appropriate time and attention.

  3. Urgent, but Not Important (Delegate): These tasks are time-sensitive but do not contribute significantly to your goals. They should be delegated to others if possible, to free up your time for more important tasks.

  4. Not Urgent and Not Important (Eliminate): These tasks are low priority and do not contribute to your goals. They should be eliminated or minimized to make room for more important activities.

Using the Eisenhower Matrix helps in prioritizing tasks effectively, reducing procrastination, and ensuring that important goals are not overlooked. It encourages a focus on important tasks, enables better time allocation, and maximizes productivity.

Kanban on Tags

v

Kanban is a project management methodology that originated from the Toyota Production System in the late 1940s. It is a visual system that helps teams track and manage their work. The word "Kanban" translates to "visual signal" or "card" in Japanese.

In Kanban, the work is represented as cards or sticky notes, which are placed on a board with different columns that represent the various stages of the workflow, such as "To Do", "In Progress", and "Done". This provides a clear visual representation of the work in progress and allows team members to see what tasks are in each stage of development.

The key principles of Kanban include visualizing workflow, limiting work in progress, and focusing on continuous improvement. By visualizing the work, you can identify bottlenecks and areas for improvement.

MindForger allows you to create Kanban boards and organize notes to columns using tags.

Machine learning: NLP

"Artificial intelligence will overcome natural intelligence soon. However, natural stupidity can never be replaced by the artificial one." -- Jára da Cimrman

CSV export

i

You can export workspace to comma separated file (CSV):

  1. open menu Workspace
  2. choose Export menu item
  3. choose CSV sub-menu item
  4. Export Workspace to CSV dialog is opened:
    • type in file name
    • choose whether you want to encode notebook tags using one hot encoding (OHE)
  5. click Export to export the workspace

Coaching

(Auto) coaching is a self-improvement process where individuals provide themselves with guidance, support, and feedback to achieve personal or professional goals. It involves self-reflection, setting goals, creating action plans, and monitoring progress.

Auto coaching usually incorporates various techniques like journaling, visualization, affirmations, and self-assessment tools to foster self-awareness, self-motivation, and personal growth. It is a proactive approach to personal development and can be done through books, online resources, or through the use of specific self-coaching methodologies.

MindForger can be used as an auto coaching tool.

GROW model


The GROW model is a popular (auto) coaching framework that is used to structure a conversation or coaching session. GROW stands for Goal, Reality, Options, and Way Forward. The model helps individuals or teams set clear goals, explore the current reality, generate options for actions, and establish a plan to move forward. It is widely used in areas such as personal development, career coaching, and leadership coaching.

Use MindForger GROW model stencil to create G.R.O.W. notebook with questions allowing you to efficiently use the G.R.O.W method.

SMARTER goals

SMARTER goals is a framework used to set effective and measurable goals. It stands for:

  1. Specific: Goals should be clear and well-defined. Avoid vague or general statements. Specify what exactly you want to achieve.

  2. Measurable: Goals should be quantifiable so that progress can be easily tracked. Include specific criteria or indicators to measure success.

  3. Attainable: Goals should be realistic and within reach. Consider the resources, skills, and time available to achieve the goal.

  4. Relevant: Goals should be aligned with your overall objectives and have significance to your life or work. Ensure they are worthwhile and meaningful.

  5. Time-bound: Goals should have a clear deadline or timeline. Set specific dates to create a sense of urgency and to keep yourself accountable.

  6. Evaluate: Continuously monitor and evaluate progress towards your goals. Assess whether adjustments or improvements are needed.

  7. Readjust: Adapt or readjust your goals as necessary, based on new information or changing circumstances. Remain flexible and open to revisions.

Tools

MindForger tools:

CLI

In certain situations, it is faster to use commands to navigate around the MindForger UI instead of using a mouse. In these cases, you can use the command line interface (CLI):

  • activate CLI using one of the following options:
    • Alt-x
    • choose View menu, CLI sub-menu
  • type ? to get help
  • type / to find notebooks and notes
  • type @ to search internet sites like arXiv or Wikipedia for knowledge
  • type > to run a command

Cheatsheets

See MindForger cheetsheet(s):

Markdown cheatsheet

See Markdown cheat sheet.

MathJax cheatsheet

See MathJax cheat sheet.

Keyboard shortcuts

Prefer menu based keyboard shortcuts which are self-documented e.g.

  • Alt+o n
    • create new notebook
  • Alt+o e
    • edit currently viewed notebook
  • Alt+n n
    • create new note
  • Alt+n e
    • edit currently viewed note
  • ... and many others...

Editor:

  • Alt+Left
    • ... save Note, leave editor and show rendered HTML.
  • Ctrl+g
    • ... cancel editation and leave editor without saving

Views:

  • Ctrl+Shift+o
    • ... recall notebook.
  • Ctrl+Shift+n
    • ... recall note.

Linux keyboard shortcuts

...

macOS keyboard shortcuts

...

Windows keyboard shortcuts

...

Command line and man

For information on MindForger command line options read the manual page:

man mindforger

For command options see the help file:

$ mindforger --help

Usage: mindforger [options] [<directory>|<file>]
Thinking notebook.

Options:
  -t, --theme <theme>            Use 'dark', 'light' or other GUI <theme>.
  -c, --config-file-path <file>  Load configuration from given <file>.
  -v, --version                  Displays version information.
  -h, --help                     Displays this help.

Arguments:
  [<directory>|<file>]           MindForger repository or directory/file with
                                 Markdown file(s) to open

Library

i

Library bring ability to index external PDF files and generate Notebooks which represent them in MindForger. Synchronization and removal of the library (directory with files) is supported as well.

Credits

Written by Martin Dvorak.

Acknowledgements to contributors:

  • Vlasta 'Šaman' Hajek / Bonitoo.io (Windows port)

Big thanks to 3rd party FOSS content authors:

  • John Gruber (Markdown - spec)
  • Qt Company (Qt - lib and code)
  • GitHub (CMark GFM - Markdown rendering - lib)
  • Kevin Hendricks, Bjoern Jacke, Lázsló Németh (Hunspell - spellcheck - lib)
  • Daniel Stenberg (cURL - libcurl with GnuTLS flavor)
  • Niels Lohmann (json - JSon for modern C++ library)
  • NetBSD Foundation (strptime - Windows port - lib)
  • Toni Ronkko (dirent - Windows port - lib)
  • Microsoft (getopt - Windows port - lib)
  • Jordan Russell (jrsoftware.org - Windows installer framework)
  • Graeme Gott and Wereturtle (Ghostwriter - inspiration and code)
  • Christian Loose (CuteMarkEd - inspiration and code)
  • Jean-loup Gailly, Mark Adler (Zlib - library)
  • David Parsons (Discount - Markdown rendering - library used in the past)
  • Google (Google C++ unit testing framework)
  • Knut Sveidqvist (Mermaid.js - diagrams and flowcharts rendering in HTML)
  • AMS and SIAM (MathJax.js - math rendering in HTML)
  • Ivan Sagalaev (Highlight.js - source code syntax highlighting)
  • Danny Allen (primary icon theme store.kde.com - icons)
  • Krita (https://github.com/KDE/krita - menu icons - remixed)
  • Travis CI (travis-ci.org - continous integration tests and builds infra - Ubuntu, macOS)
  • AppVeyor CI (appveyor.com - continous integration tests and builds infra - Windows)
  • Raimund Hocke (SikuliX- GUI automation testing)
  • Lewis Van Winkle (GENANN - minimal neural network - library)
  • Oleander Software (Oleander stemming library - stemmer - library)
  • Jamie McGowan (Remarkable - inspiration and code)
  • Andrey Smirnov (Aptly - Debian PPAs mgmt tool)
  • Apiary (API blueprints - test data)
  • Mark Summerfield (Advanced Qt Programming book examples - code snippets)
  • Andres Mejia (Aho-Corasick algorithm implementation - code snippets)
  • SQLite (main file blessing - inspiration)

See licenses folder for 3rd party content licensing details.

Acknowledgements to researchers:

  • Karel Moulik (long term vision and ideas, consultations)
  • Tomas Sieger (MindForger applications ideas, consultations)
  • Gekaremi (comprehensive AI/NLP research, ideas and suggestions)

Acknowledgements to reviewers, testers and supporters:

  • Ivan Kudibal (review, adoption and project support)
  • Stefan Pacinda (review, testing)
  • Petr Kozelka (MacBook borrowing, consultations)
  • Tomas 'Floex' Dvorak (review, testing)
  • Honza Odstrcil (feedback)

Special thanks to:

  • Bjarne Stroustrup (C++ - for inspiring visions and being the authority behind C++ language)
  • Linus Torvalds (Linux and Git - for being inspiration and strong opinions)
  • Richard Stallman (GNU and GNU GPL - for passionate software freedom activism)

Created with passion for my personal pleasure.
Released on the day of my 42nd birthday to confirm answer to the Ultimate Question of life, the Universe, and Everything.
[email protected] and contributors
2018-2024

Table of Contents

Getting started:

About:

Installation:

User documentation:

Developer documentation:

Frequently Asked Questions

Clone this wiki locally
