Architecture

The entire system is divided into five components: apiserver, sfuserver, fsserver, turnserver, and allocateserver.

• apiserver: Acts as the hub of the entire Meeting. It needs to connect to a mysql database and has low server requirements. The static binary has no dependencies and can be deployed with a single line of command.
• sfuserver: Acts as a relay for audio and video. It needs to connect to apiserver and has high server requirements. The static binary has no dependencies and can be deployed with a single line of command.
• turnserver: Acts as a role to ensure successful user connection to the meeting. It needs to connect to apiserver and theoretically has low server requirements. The static binary has no dependencies and can be deployed with a single line of command.
• fsserver: Acts as a storage role for writing meeting minutes images or files. It needs to connect to apiserver and has low server requirements. The static binary has no dependencies and can be deployed with a single line of command.
• allocateserver: When a user connects to apiserver to create a meeting, apiserver will request allocateserver to allocate for the meeting: sfuserver, turnserver, fsserver. Requires simple development by the enterprise to implement its own allocation strategy.

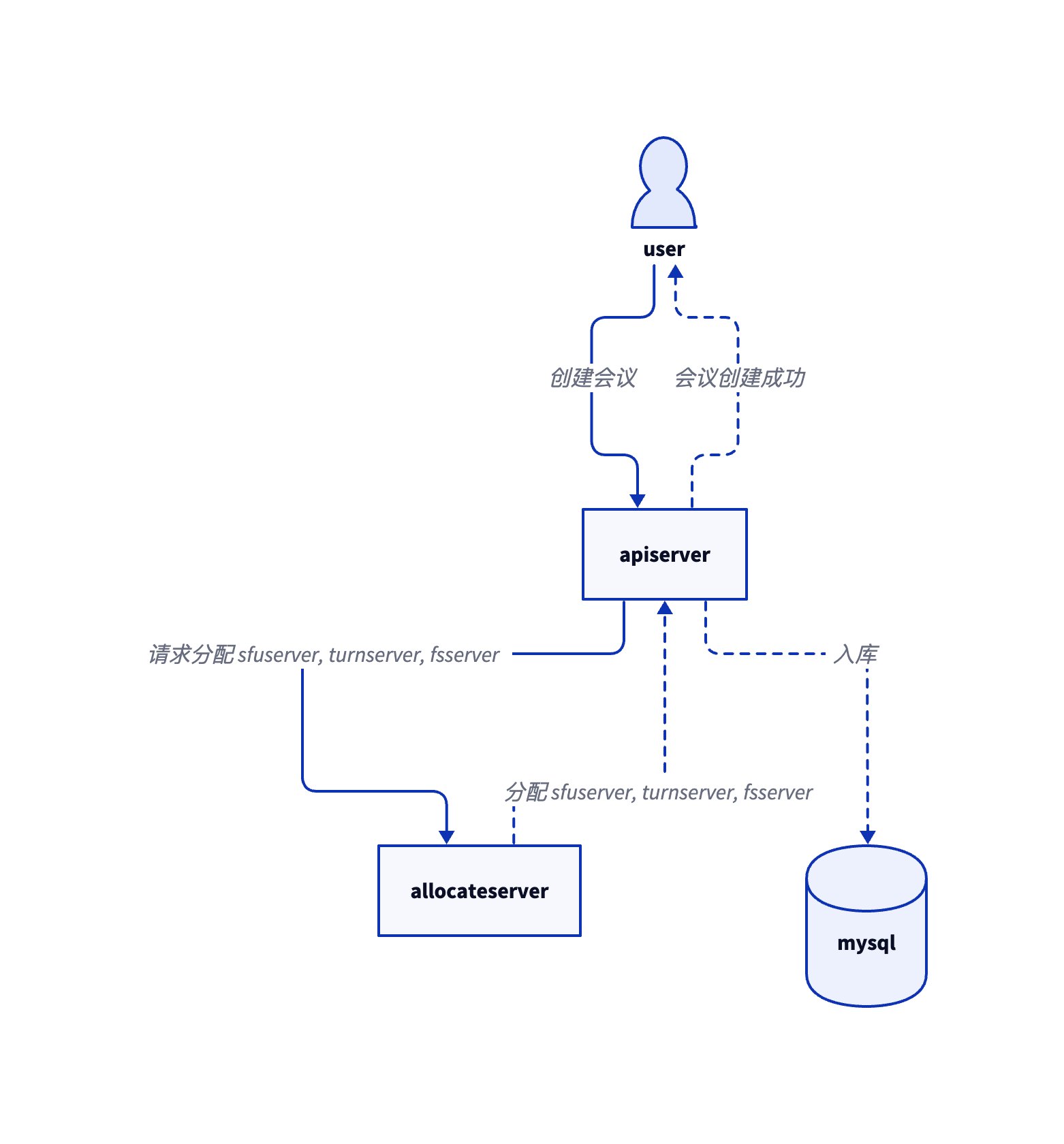

Topology for Creating a Meeting

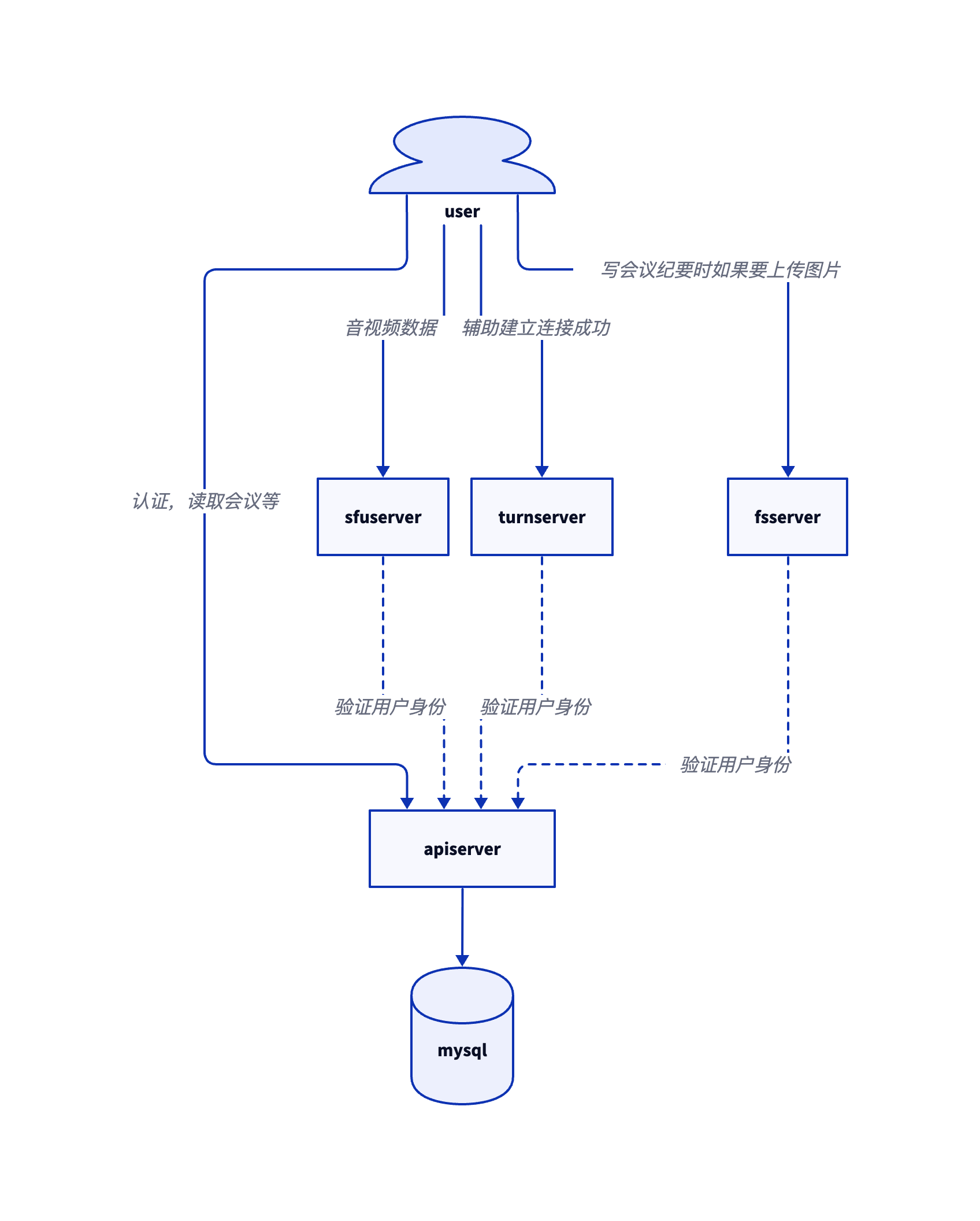

Topology for Joining a Meeting

Deployment

Install

bash <(curl https://bash.ooo/nami.sh)

nami install meeting

meeting is a standalone binary file, you can also download without nami.

apiserver

Usually, Meeting is used by enterprise employees and some external people, rather than a profit-making internet system pursuing user volume, so apiserver generally does not have high server requirements, so choose server configuration as appropriate. apiserver is a subcommand of the meeting dependency-free static binary, which can be deployed with a single line of command.

meeting apiserver
    --secret xxx
    --mysqlAddress 127.0.0.1:3306
    --mysqlUser root
    --mysqlPassword 111111
    --mysqlDatabase Meeting
    --domainaddress apiserver.com:443
    --cert /path/to/cert.pem
    --certkey /path/to/certkey.pem
    --mailServer smtp.hello.com
    --mailPort 587
    --mailUsername hello
    --mailFrom hi@hello.com
    --allocateserver http://192.168.1.2:80/path

• --secret: Please contact BD to obtain
• --cert and --certkey: Optional. If not specified, it will listen on port 80 to self-sign certificates.
• --mailServer, --mailPort, --mailUsername and --mailFrom: Multiple can be specified, for example, specifying both internal and external mail, example: --mailServer smtp1.hello.com --mailServer smtp2.hello.com
• --allocateserver: Although allocateserver supports any URL, generally apiserver and allocateserver can be connected via intranet. If apiserver accesses allocateserver via the external network, it is recommended that allocateserver use https and an unpredictable, irregular path.
• Firewall needs to open 443/TCP, 80/TCP (as needed)

sfuserver

sfuserver acts as an audio and video relay server and has high server requirements. For inbound and outbound bandwidth estimation, please check FAQ. Taking Google Cloud as an example, it is recommended that a single meeting use at least a dedicated n2-standard-16, 16 vCPU, 64 GB memory server. sfuserver is a subcommand of the meeting dependency-free static binary, which can be deployed with a single line of command.

meeting sfuserver
    --secret xxx
    --domainaddress 1.sfuserver.com:443
    --cert /path/to/cert.pem
    --certkey /path/to/certkey.pem
    --apiserver apiserver.com:443

• --secret: Please contact BD to obtain
• --cert and --certkey: Optional. If not specified, it will listen on port 80 to self-sign certificates. The frequency of self-signed certificates is a maximum of 50 per week. If estimated to exceed this limit, please specify your own certificate.
• Firewall needs to open ALL/TCP, ALL/UDP

turnserver

turnserver is used to assist users in successfully establishing connections. It will relay audio and video data when necessary, but generally, connections are successful and do not relay audio and video data, so theoretically, it does not require high server requirements. So choose server configuration as appropriate. turnserver is a subcommand of the meeting dependency-free static binary, which can be deployed with a single line of command.

meeting turnserver
    --secret xxx
    --port 3478
    --ip 1.2.3.4
    --apiserver apiserver.com:443

• --secret: Please contact BD to obtain
• --ip: If serving users outside the enterprise, please specify the public IP of the current server, otherwise intranet IP is also acceptable depending on the actual situation.
• Firewall needs to open ALL/TCP, ALL/UDP

fsserver

fsserver acts as a storage role for writing meeting minutes images or files. Generally, it does not require high server requirements. So choose server configuration as appropriate. fsserver is a subcommand of the meeting dependency-free static binary, which can be deployed with a single line of command.

meeting fsserver
    --secret xxx
    --domainaddress fsserver.com:443
    --cert /path/to/cert.pem
    --certkey /path/to/certkey.pem
    --directory /path/storage
    --apiserver apiserver.com:443

• --secret: Please contact BD to obtain
• --cert and --certkey: Optional. If not specified, it will listen on port 80 to self-sign certificates.
• --directory: Specify the directory used to store files.
• Firewall needs to open 443/TCP, 80/TCP (as needed)

allocateserver

When a user connects to apiserver to create a meeting, apiserver will request allocateserver to allocate for the meeting: sfuserver, turnserver, fsserver. Requires simple development by the enterprise to implement its own allocation strategy. allocateserver only needs to provide one interface, such as /path/a_unpredictable_path. apiserver will have three types of requests, determined by the different parameters carried by the request:

1. Request to allocate sfuserver, turnserver for Scheduled Meeting

   GET /path/a_unpredictable_path?Kind=SFUTURN&Email=xxx&BeginAt=xxx&EndAt=xxx

   HTTP/1.1 200 OK
   Content-Type: application/json

   {"sfu": "1.sfuserver.com:443", "turn": "1.2.3.4:3478"}


   Request

   • Kind: SFUTURN
   • Email: Email of the user creating the meeting
   • BeginAt: Scheduled meeting start timestamp
   • EndAt: Scheduled meeting end timestamp

   Response

   • sfu: Allocated sfuserver
   • turn: Allocated turnserver

2. Request to allocate sfuserver, turnserver for Instant Meeting

   GET /path/a_unpredictable_path?Kind=SFUTURN&Email=xxx&BeginAt=0&EndAt=0

   HTTP/1.1 200 OK
   Content-Type: application/json

   {"sfu": "1.sfuserver.com:443", "turn": "1.2.3.4:3478"}


   Request

   • Kind: SFUTURN
   • Email: Email of the instant meeting owner
   • BeginAt: 0
   • EndAt: 0

   Response

   • sfu: Allocated sfuserver
   • turn: Allocated turnserver

3. Request to allocate fsserver

   GET /path/a_unpredictable_path?Kind=FS&Email=xxx

   HTTP/1.1 200 OK
   Content-Type: application/json

   {"fs": "fsserver.com:443"}


   Request

   • Kind: FS
   • Email: Email of the requester

   Response

   • fs: Allocated fsserver

Since turnserver and fsserver generally do not have high server configuration requirements, it is usually sufficient to deploy one of each. However, sfuserver has higher server requirements and needs to be deployed in multiples. Here are two allocation schemes:

• First: According to the number of Scheduled Meeting that the enterprise may produce within a week, create the corresponding amount of sfuserver in advance, and allocate them one by one when allocating. Considering that server configuration has a ceiling, it is recommended to allocate one separately for each Scheduled Meeting. However, the time and number of Scheduled Meeting occurrences are uncertain, so the disadvantage of this scheme is that if the number of pre-created sfuserver is small, it will cause insufficient resources, and if the number is large, it will waste server resources.
• Second: Because Scheduled Meeting occurs in the future, you can automatically create sfuserver using a program only when the Scheduled Meeting is created, that is, when apiserver requests resources for Scheduled Meeting, for example, 2 hours before the start time of Scheduled Meeting. Then wait for 2 hours after the Scheduled Meeting ends to delete sfuserver to release resources. The advantage of this scheme is that it does not waste server resources, and requires enterprise R&D personnel to programmatically create servers on private clouds or trusted public clouds.

For instant meetings, there are also two allocation schemes:

• First: According to the number of Instant Meeting that the enterprise may produce within a week, create the corresponding amount of sfuserver in advance, and allocate them one by one when allocating. Considering that the number of participants in Instant Meeting is generally small, multiple Instant Meeting owners can also share one sfuserver. However, the time and number of Instant Meeting occurrences are uncertain, so the disadvantage of this scheme is that if the number of pre-created sfuserver is small, it will cause insufficient resources, and if the number is large, it will waste server resources.
• Second: Only when Instant Meeting occurs, that is, when apiserver requests resources for Instant Meeting, automatically create sfuserver using a program, allocating one separately for each Instant Meeting owner. Then wait for 3 hours before deleting sfuserver to release resources. The disadvantage of this scheme is that when a user joins an Instant Meeting, if there are no sfuserver resources or they have been released, allocateserver returns a non-200 to apiserver prompting the user to wait a moment, while immediately starting to deploy sfuserver. The advantage is that it does not waste server resources.

Without considering bandwidth and traffic, the cost of a Google Cloud n2-standard-16 server alone is about $600 per month, while it is about $1 per hour. Therefore, adopting the second scheme can save a lot of costs.
