Tracebook

Conformance testing and reproducible failure analysis for matching engines.

Tracebook runs the same normalized order-lifecycle trace against an inspectable reference engine and your Rust, C++, Java, Python, or other candidate. It stops at the first semantic difference, explains what drifted, and reduces the failure to a deterministic JSONL reproducer.

Give it an engine. Get back the smallest trace that proves where it disagrees.

Quick start · Real failure · Profiles · Adapters · CI · Architecture

Quick Start

Tracebook requires Python 3.10-3.13. Install the public package and materialize the hash-verified adversarial suite:

python -m pip install --upgrade tracebook-sim
tracebook-conformance sample ./tracebook-suite
tracebook-conformance --help

Those commands require only the published wheel. A candidate engine remains a separate process by design. Once it speaks the versioned NDJSON protocol, run a deterministic campaign:

tracebook-conformance campaign \
  --profile fifo-limit-v1 \
  --seed 42 \
  --traces 25 \
  --events-per-trace 200 \
  --candidate-cmd './matching-engine --tracebook-stdio' \
  --corpus-dir .tracebook/corpus \
  --stop-after-first \
  --junit-output .tracebook/conformance.xml

Exit code 0 means every requested trace conformed. Exit code 1 means the corpus contains the original failure, reduced reproducer, semantic diff, coverage evidence, campaign metadata, and JUnit result.

For a working adapter before writing your own, use the native orderbook-rs walkthrough or the smaller Python process example.

A Real Four-Event Rust Failure

Flash's matching-engine benchmark reported a historical FIFO defect in an orderbook-rs dependency: after a partial fill, the oldest maker's remainder moved behind a later maker at the same price. Upstream tracked the defect as orderbook-rs #88 and fixed it in PR #131.

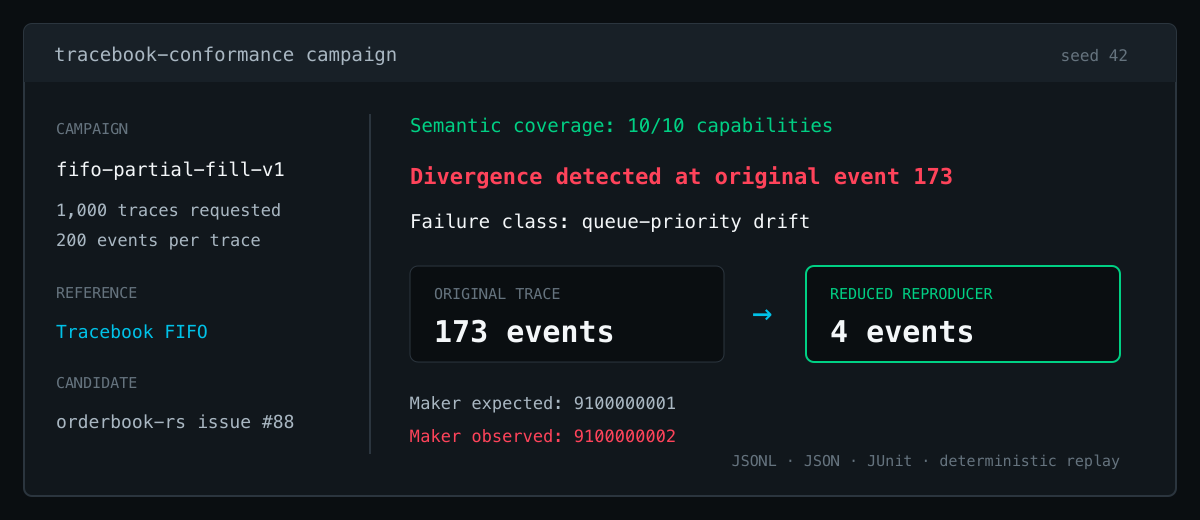

On main, Tracebook runs the exact affected revision and the current fixed engine through the same native adapter. Seed 42 generates the first incorrect trade at event 173; deterministic delta debugging reduces the lifecycle history to four events while preserving the same maker-ID mismatch.

The reduced trace then becomes an ordinary CI regression: it must reproduce against the affected revision and pass against orderbook-rs 0.11.0.

• Read the provenance and reduction case study
• Inspect the four-event JSONL reproducer
• Review the native Rust adapter

This is a retrospective import of a defect Flash discovered, not a Tracebook discovery claim. The value Tracebook adds is deterministic generation, first-divergence localization, minimization, replay, and a reusable regression artifact.

What It Compares

Surface	Comparison
Outcomes	Applied or rejected status plus stable rejection reason
Trades	Ordered maker/taker source IDs, side, price, and quantity
Resting state	Full price-time queue order, remaining quantity, owner, and symbol
Lifecycle	New, cancel, reduce, replace, clear, duplicate, and inactive requests
Instructions	Limit, market, IOC, FOK, and configured self-trade prevention
Isolation	Independent multi-symbol books and canonical state hashes
Evidence	Candidate-independent semantic coverage for compared events

Tracebook transfers compact observations after each event and requests a full queue snapshot only at divergence and completion. Candidate execution time is not presented as engine latency because it includes process, serialization, and adapter overhead.

Portable Semantic Profiles

Profiles are versioned contracts. Existing names do not silently acquire new behavior, so seeds and campaign hashes remain reproducible.

Profile	Contract
fifo-limit-v1	FIFO limit orders, partial fills, cancel, reduce, replace, clear, duplicates, inactive requests, and multiple symbols
fifo-full-v1	fifo-limit-v1 plus market, IOC, and FOK instructions
fifo-partial-fill-v1	Portable FIFO lifecycle plus the real partial-fill continuation probe
Standard suite v1	Eight adversarial fixtures covering FIFO, instructions, STP, tick grids, deep cancellation, multiple symbols, and pro-rata

Campaigns use specified SplitMix64 trace seeds and candidate-independent generation. Reports distinguish semantic workload coverage from Python source coverage.

Read the profile, protocol, hashing, and minimizer contracts.

Architecture

flowchart LR
    G["Versioned campaign"] --> R["Runner"]
    T["Normalized trace"] --> R
    R --> O["Reference engine"]
    R --> A["NDJSON adapter"]
    A <--> E["Candidate engine"]
    O --> D["Semantic diff"]
    A --> D
    D --> P["JSON / JUnit"]
    D --> M["Minimizer"] --> B["Failure bundle"]

Loading

The process boundary keeps the candidate independent of Tracebook's Python implementation. Adapters translate only between native engine operations and the canonical protocol.

Open the detailed component map.

Engine Adapters

Candidate	Native surface	Evidence
orderbook-rs 0.11.0	Rust FIFO lifecycle, market/IOC/FOK, STP, deterministic trade IDs, full queue snapshots	Conformant generated FIFO campaign; 7/8 standard cases with pro-rata explicitly unsupported; semantics reviewed in upstream issue #203
Historical orderbook-rs issue #88	Exact affected Rust dependency behind an opt-in Cargo feature	Event 173 localized and reduced to the committed four-event regression
faulty-orderbook-adapter	Real Rust engine plus one documented injected queue-priority fault	Synthetic negative control reduced from event 173 to five causal events
PythonMatchingEngine	Pinned FIFO limit lifecycle, cancellation, reduction, replacement, clear, and queue snapshots	Compatible trace passes; unsupported instructions, STP, tick grid, and pro-rata remain visible differences
Your engine	Any language that can read and write newline-delimited JSON	Start from the adapter contract and gate only the profile your engine claims

A divergence means two configured contracts disagree. It does not, by itself, declare either project incorrect.

Failure Artifacts

Every stopped campaign writes an atomic, content-addressed bundle:

Artifact	Purpose
campaign.json	Seed, profile, generator version, trace count, campaign hash, and coverage
failure.json	Failure class, exact semantic path, engines, IDs, and reproduction expectation
original.jsonl	Complete generated history through the first divergence
reduced.jsonl	Deterministic minimized reproducer
minimization.json	Run budget, reduction evidence, and one-minimal status
JUnit XML	Native pull-request annotation and test-report ingestion

Replay a stored expectation without regenerating anything:

tracebook-conformance reproduce \
  .tracebook/corpus/<failure-id>/reduced.jsonl \
  --candidate-cmd './matching-engine --tracebook-stdio'

Continuous Integration

This minimal job installs the public PyPI release. Replace only the candidate build and command:

name: Matching engine conformance

on: [pull_request]

jobs:
  conformance:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7
      - uses: actions/setup-python@v6
        with:
          python-version: "3.12"
      - run: python -m pip install "tracebook-sim==0.4.1"
      - run: make build
      - run: |
          tracebook-conformance campaign \
            --profile fifo-limit-v1 \
            --seed 42 \
            --traces 25 \
            --events-per-trace 200 \
            --candidate-cmd './build/matching-engine --tracebook-stdio' \
            --corpus-dir artifacts/corpus \
            --stop-after-first \
            --junit-output artifacts/conformance.xml

The repository includes a copy-paste workflow with artifact upload and a short CI integration guide.

Reference Semantics

The bundled Python engine is intentionally small and inspectable. It supports:

• FIFO and pro-rata allocation;
• limit, market, IOC, and FOK orders;
• cancellation, priority-preserving reduction, and priority-losing replacement;
• configurable self-trade prevention;
• detached queue snapshots and deterministic record/replay;
• stable structured outcomes for validation and lifecycle failures.

It is the executable oracle for declared Tracebook profiles, not a production exchange engine.

Additional Workbench Tools

The conformance wedge sits on top of useful lower-level tooling rather than removing it:

Tool	Use
Normalized event replay	Replay CSV, JSON, or JSONL lifecycle streams with source-ID preservation
Coinbase Exchange L3	Validate snapshot/feed sequence and normalize public Level 3 messages
Verified corpora	Bind local datasets to manifests, golden states, and reproducible import benchmarks
Performance reports	Separate generation, matching, lifecycle, memory, and monitoring measurements
Local dashboard	Inspect simulation and profiling artifacts without a hosted service

These tools support correctness investigations. Tracebook does not claim that local Python timings predict production Rust or C++ latency.

Project Boundaries

Tracebook is not:

• a production exchange or broker gateway;
• a complete strategy backtester or portfolio platform;
• a realistic multi-agent market economy;
• a source of redistributable exchange data;
• a universal performance ranking for matching engines.

Read the product position and comparison with adjacent projects.

Contributing

Tracebook supports Python 3.10 through 3.13 and is alpha software. The real four-event orderbook-rs case study currently requires a source checkout.

git clone https://github.com/Taz33m/tracebook.git
cd tracebook
python -m venv venv
source venv/bin/activate
python -m pip install -e ".[dev,dashboard]"
make quality

Start with the contribution guide, the command reference, or an issue. Security reports follow the private process in SECURITY.md.

License

MIT
