This project demonstrates a basic cloud-based Security Operations workflow using Microsoft Azure and Microsoft Sentinel.
I built a controlled honeypot environment by deploying a Windows 10 virtual machine in Azure and intentionally exposing it to the internet for security monitoring practice. Failed authentication attempts were collected from the VM, forwarded into a Log Analytics Workspace, analyzed with KQL, enriched with geographic IP data, and visualized in Microsoft Sentinel using a custom attack map workbook.
The purpose of this lab was to practice core SOC analyst skills, including log collection, SIEM configuration, failed login investigation, IP enrichment, detection logic, and security event visualization.
Security Note:
This VM was intentionally exposed as a controlled honeypot for lab purposes only. It contained no sensitive data, used disposable credentials, and was deleted after testing to reduce cost and security risk.
This project supports my SOC Analyst Technical Assessment portfolio by providing hands-on evidence of log collection, Microsoft Sentinel configuration, KQL-based investigation, and failed authentication analysis.
The findings from this lab can be used as a practical case study for SIEM alert triage, Event ID 4625 investigation, MITRE ATT&CK mapping, and SOC reporting.
- Deploy a Windows VM honeypot in Microsoft Azure
- Configure Microsoft Sentinel with a Log Analytics Workspace
- Collect Windows Security Events using Azure Monitor Agent
- Investigate failed login attempts using Event ID 4625
- Query security logs using Kusto Query Language
- Enrich source IP addresses with geographic data using a Sentinel watchlist
- Build a Microsoft Sentinel Workbook to visualize attack origins
- Practice basic SOC investigation and cloud threat detection workflows
- Microsoft Azure
- Microsoft Sentinel
- Log Analytics Workspace
- Azure Monitor Agent
- Data Collection Rules
- Windows Security Events
- Kusto Query Language
- Sentinel Watchlists
- Sentinel Workbooks
- Remote Desktop Protocol
- Windows 10 VM
- Cloud security monitoring
- SIEM configuration
- Windows event log analysis
- Failed authentication investigation
- KQL querying
- Threat enrichment
- Attack visualization
- Basic detection engineering
- SOC workflow documentation
flowchart LR
A[Internet Authentication Attempts] --> B[Azure Windows VM Honeypot]
B --> C[Windows Security Event Logs]
C --> D[Azure Monitor Agent]
D --> E[Data Collection Rule]
E --> F[Log Analytics Workspace]
F --> G[Microsoft Sentinel]
G --> H[KQL Investigation]
G --> I[GeoIP Watchlist Enrichment]
I --> J[Sentinel Attack Map Workbook]
This lab focused on identifying failed authentication activity against an internet-facing Windows VM.
| Event ID | Description |
|---|---|
| 4625 | Failed Windows logon attempt |
| Technique | Description |
|---|---|
| T1110 | Brute Force |
| T1021.001 | Remote Services: Remote Desktop Protocol |
| T1078 | Valid Accounts, if valid credentials are successfully used |
I created an Azure subscription and accessed the Azure Portal to begin building the lab environment.
Azure sign-up page:
https://azure.microsoft.com/en-us/pricing/purchase-options/azure-account
Azure Portal:
https://portal.azure.com

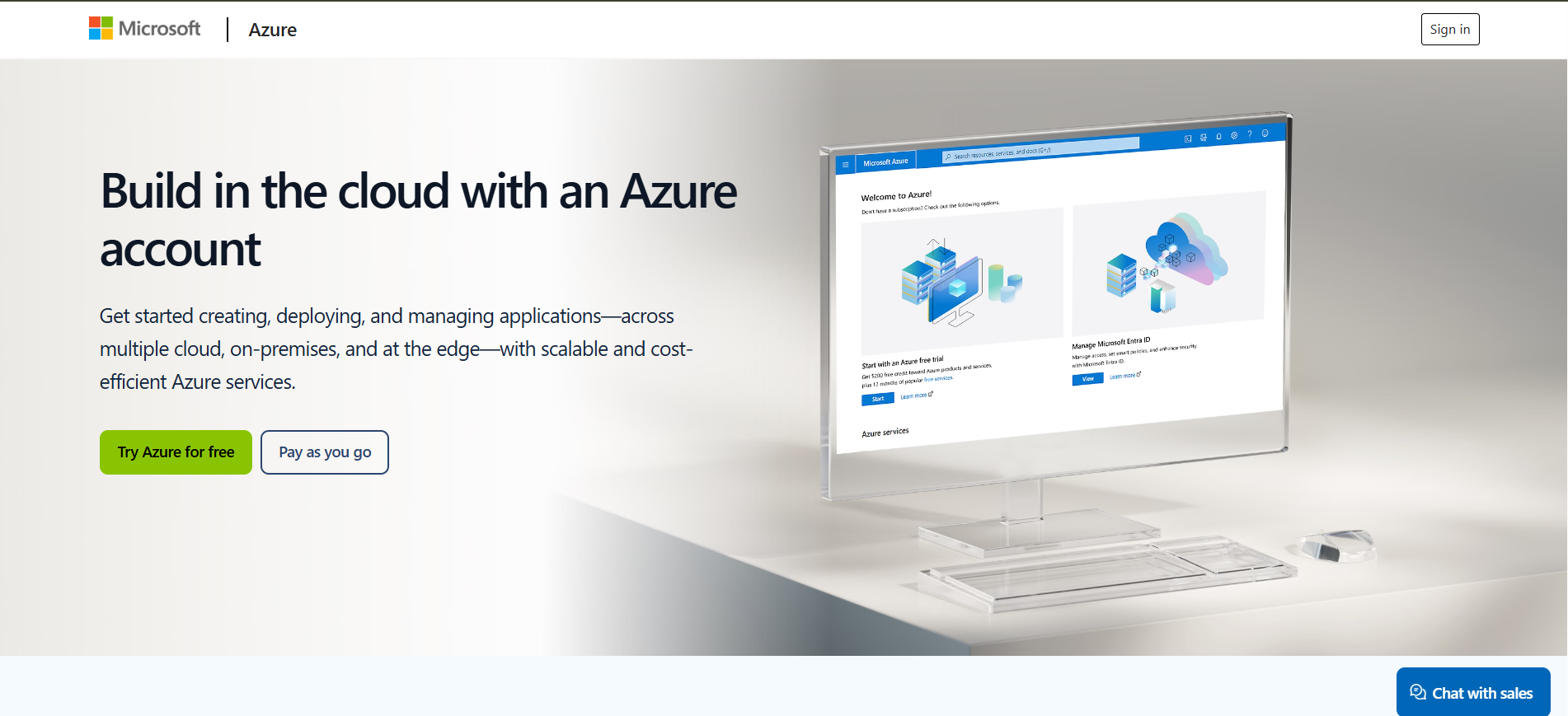

Azure sign-up page:
Cost Note:
If using a paid subscription, make sure all resources are deleted after the lab to avoid unnecessary charges.
I created a Resource Group, Virtual Network, and Windows 10 Virtual Machine to act as the honeypot endpoint.

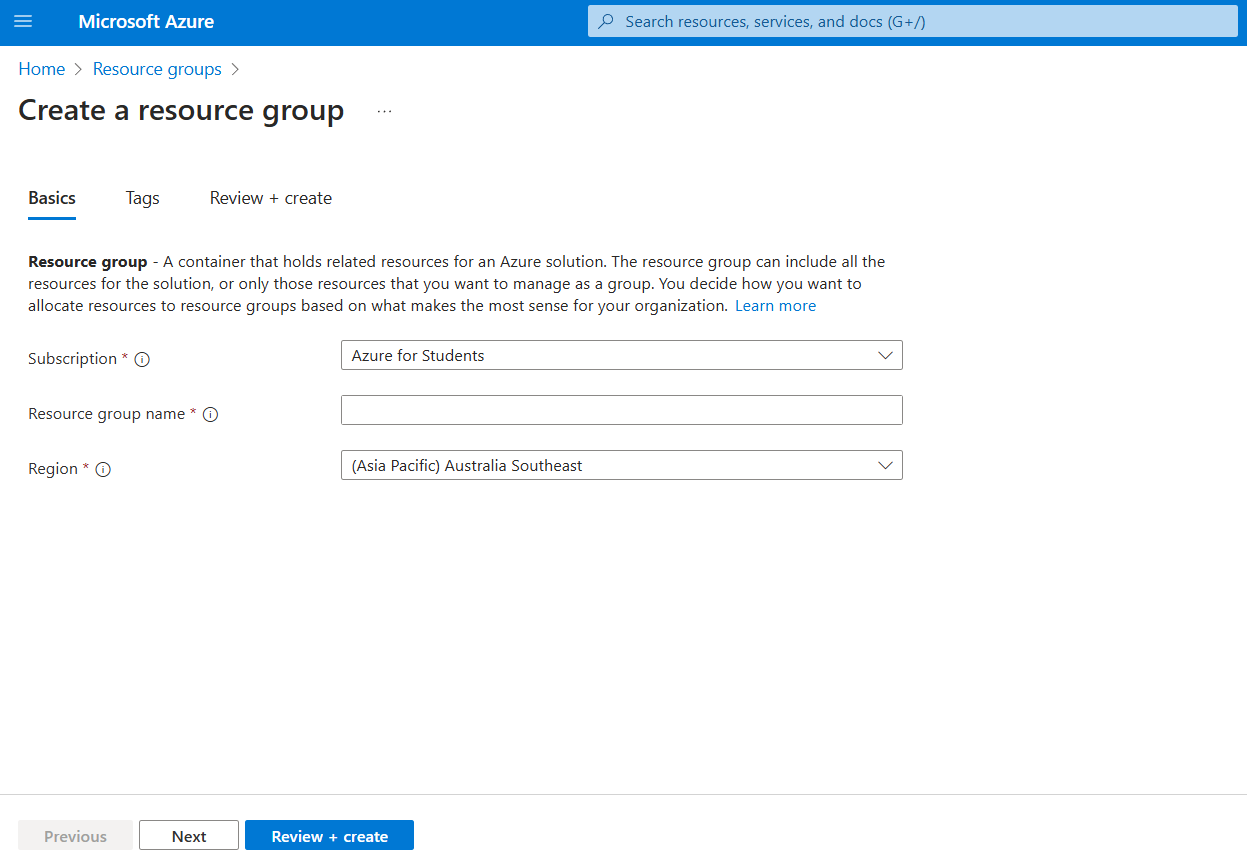

Create Resource Group:
Choose subscription, resource group name, and region:

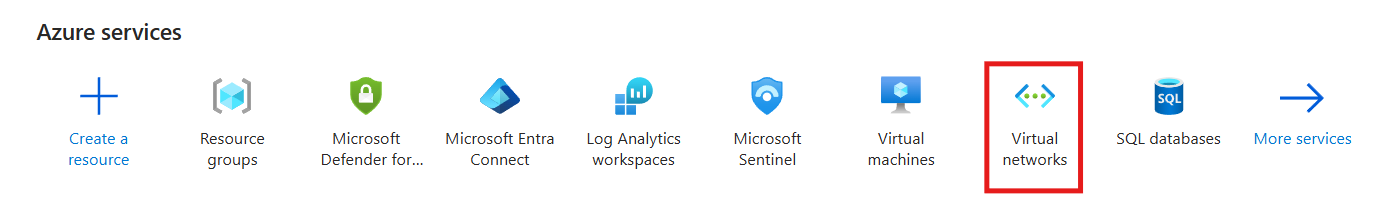

Search for Virtual Network:

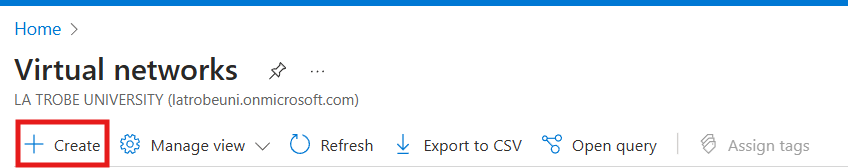

Create Virtual Network:

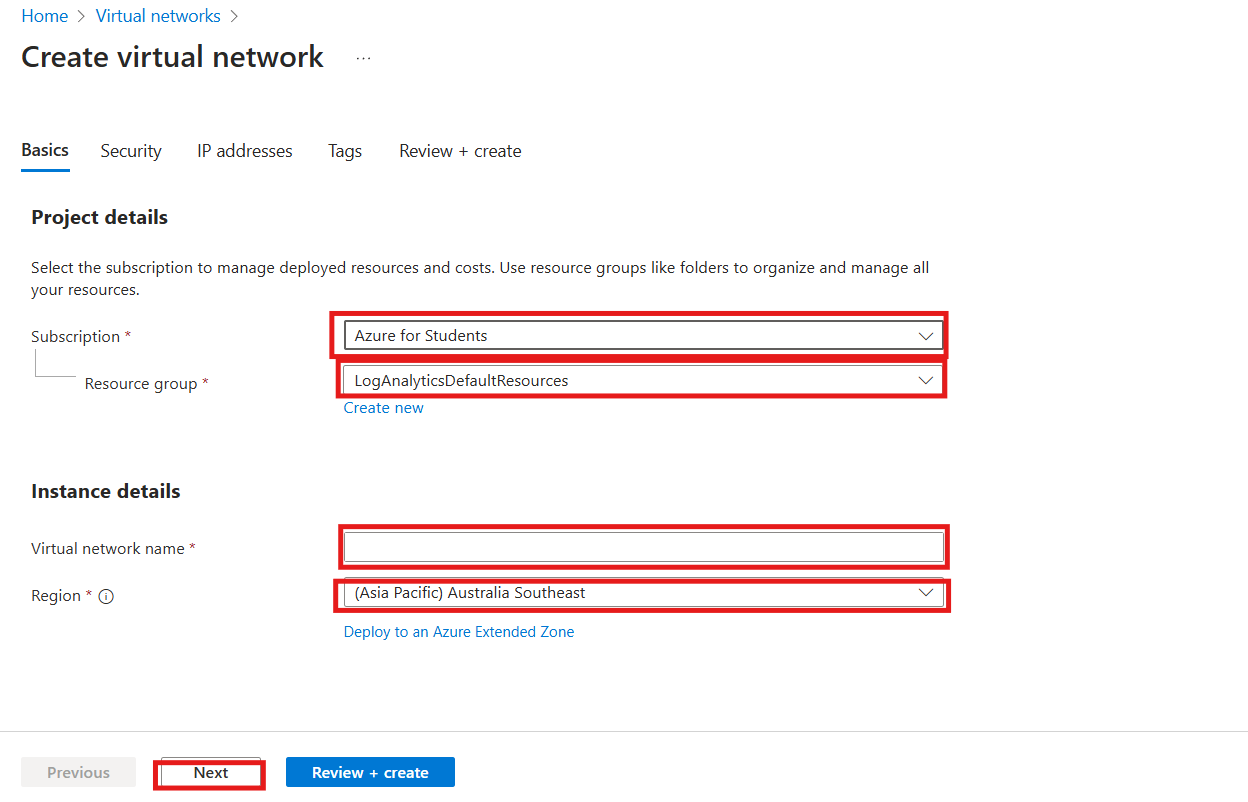

Configure subscription, resource group, name, and region:

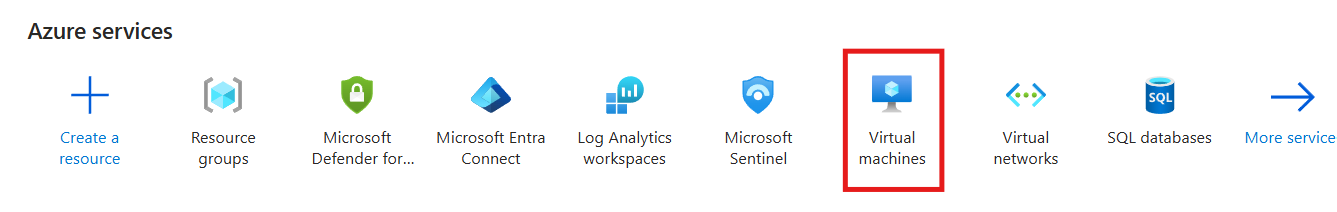

Search for Virtual Machines:

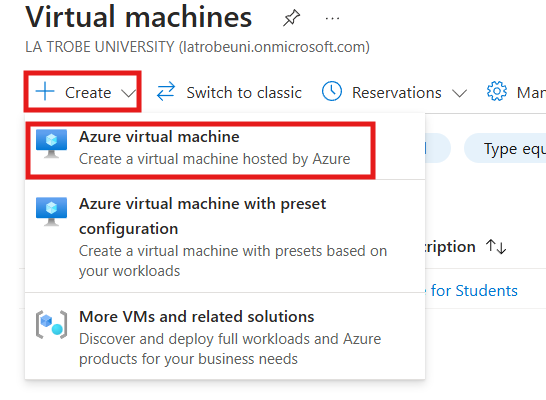

Create Azure Virtual Machine:

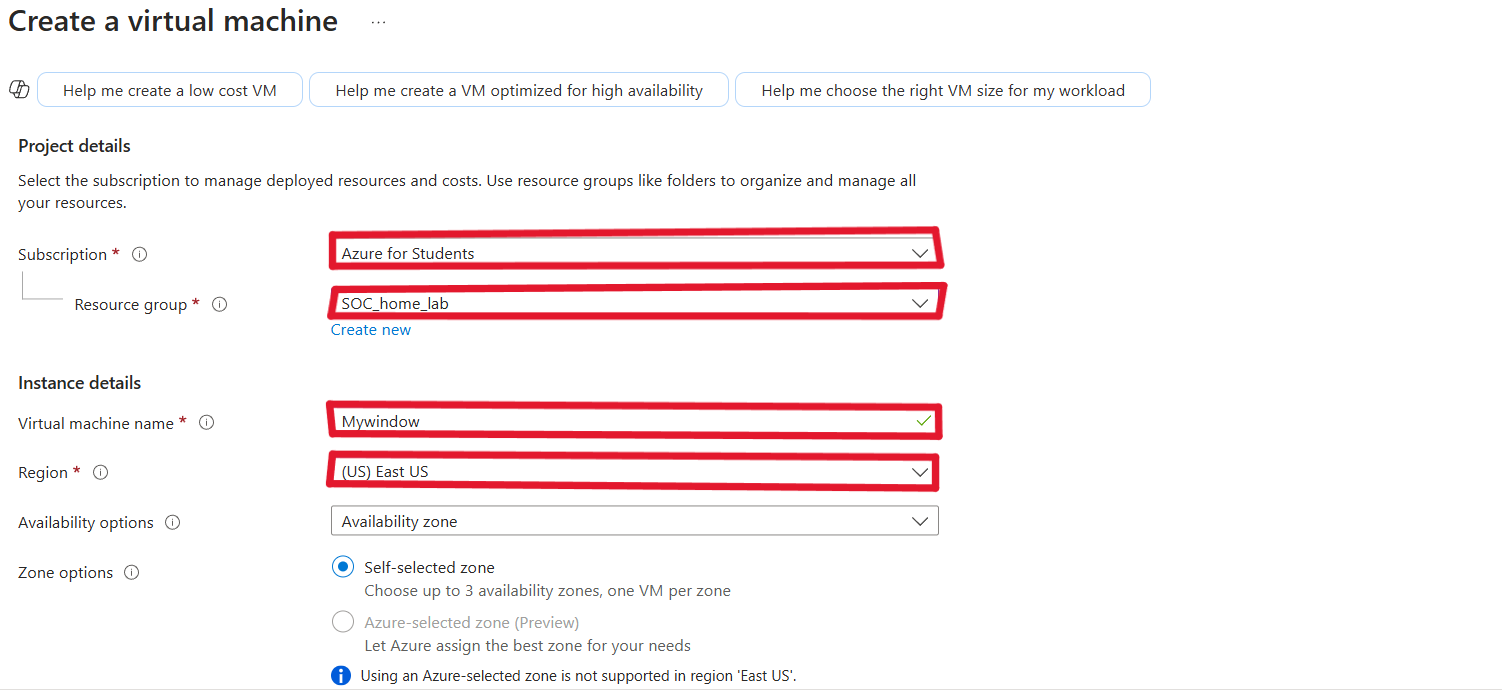

Configure subscription, resource group, VM name, and region:

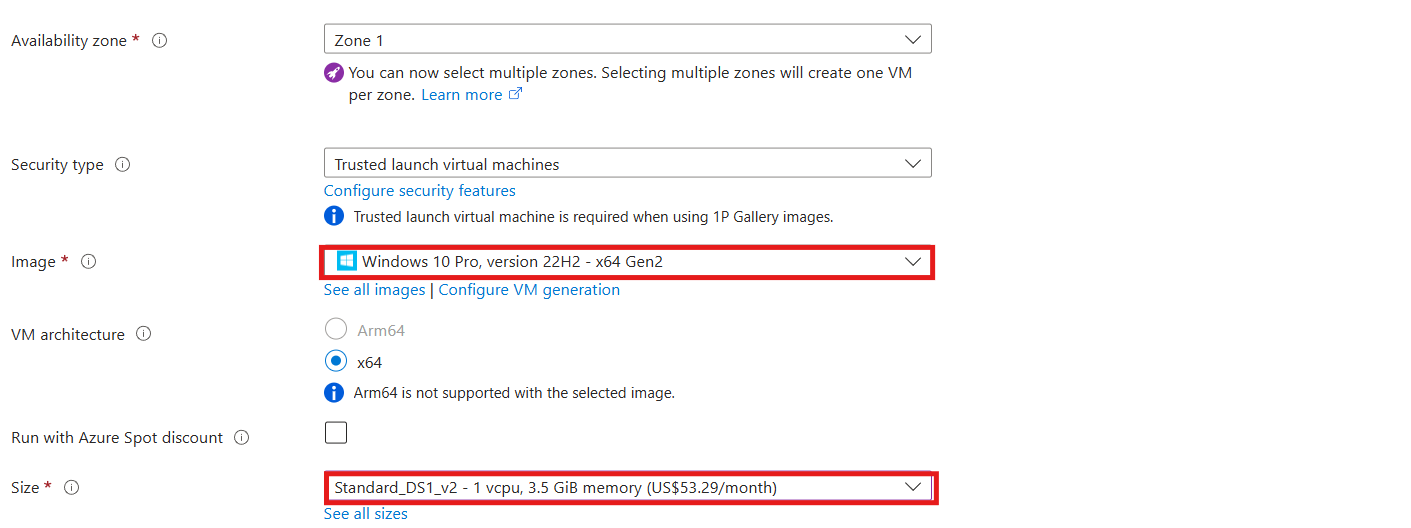

Select Windows 10 Pro image and VM size:

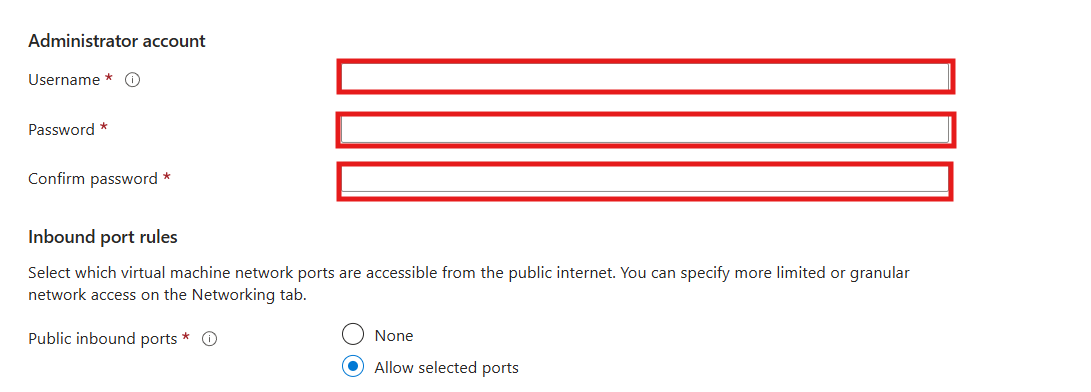

Create local administrator credentials:

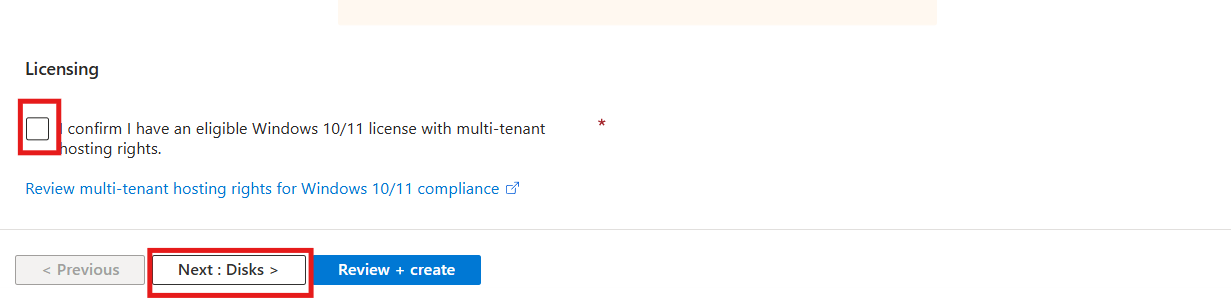

Confirm licensing and proceed to disk configuration:

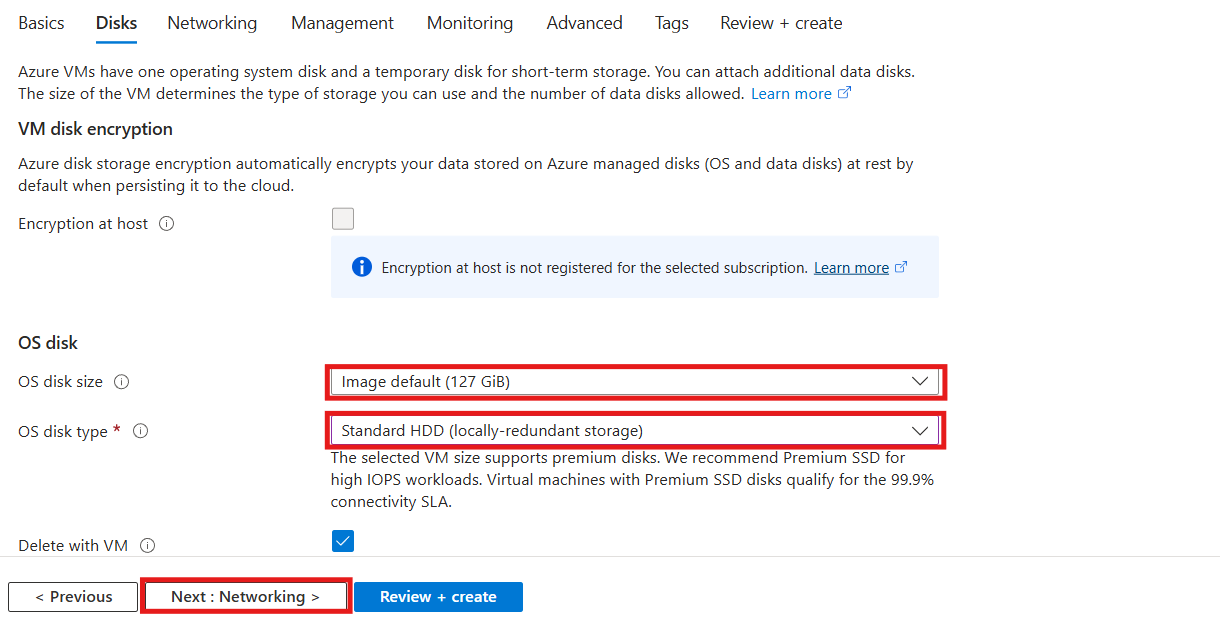

Configure OS disk settings:

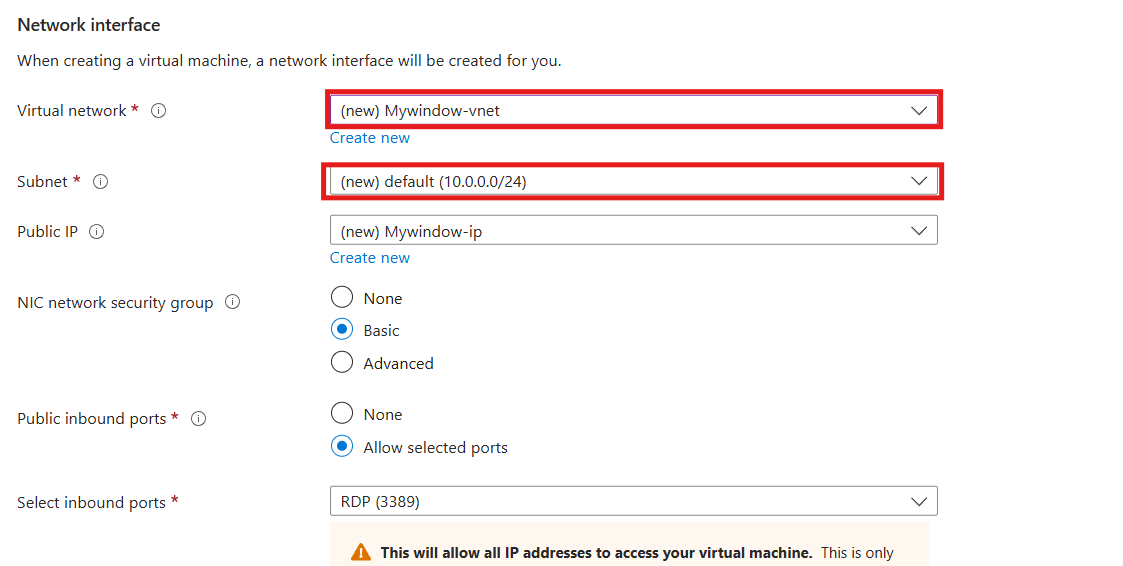

Attach the VM to the virtual network:

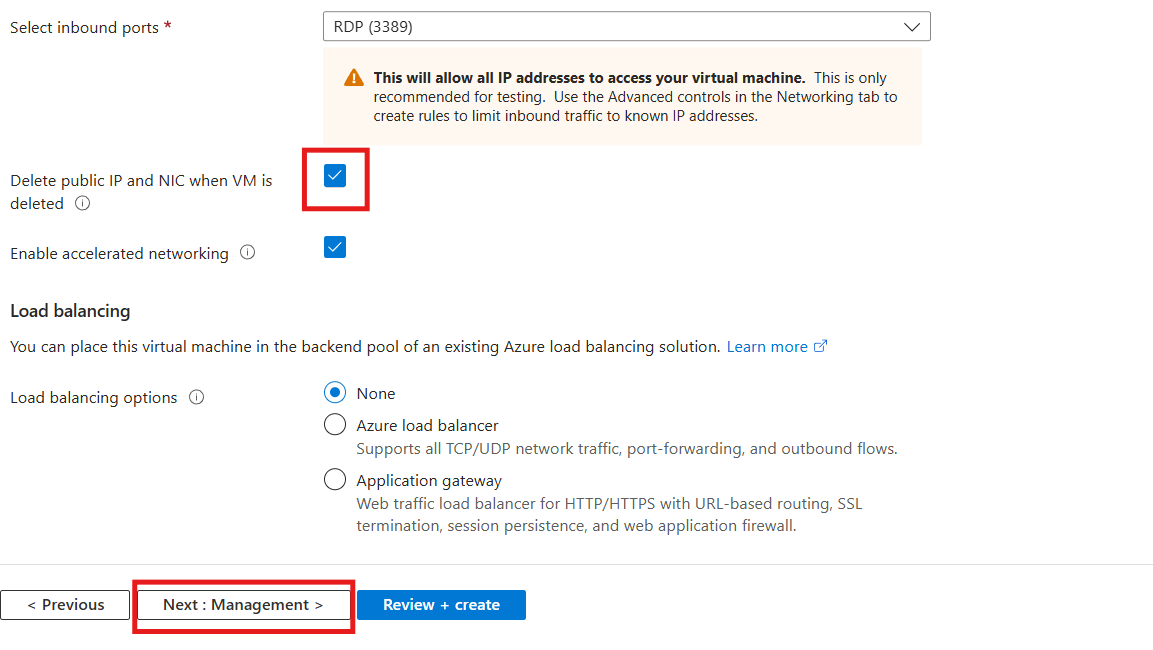

Enable deletion of public IP and NIC when the VM is deleted:

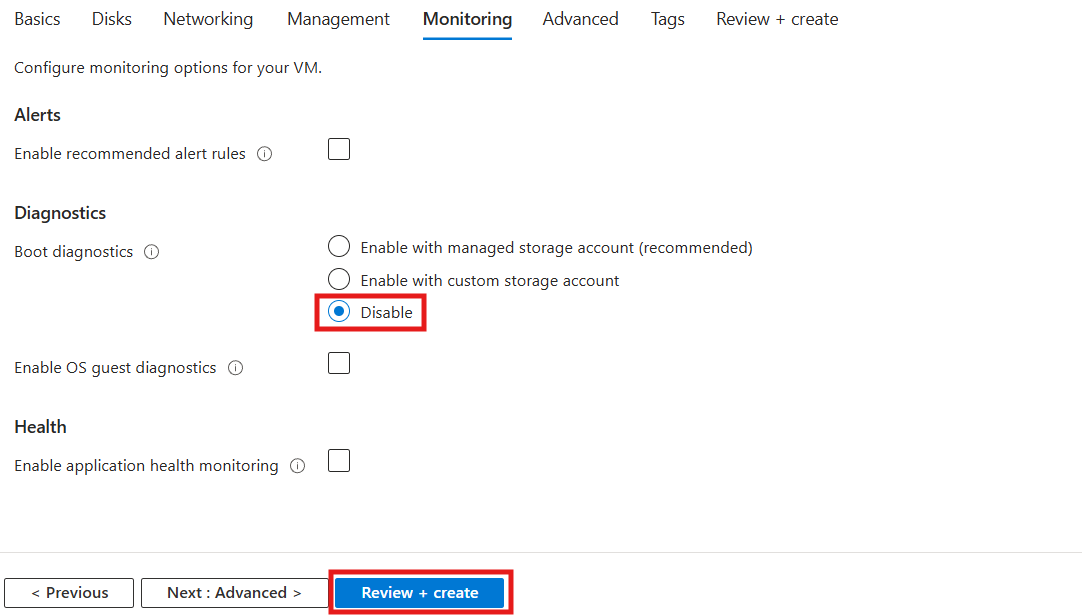

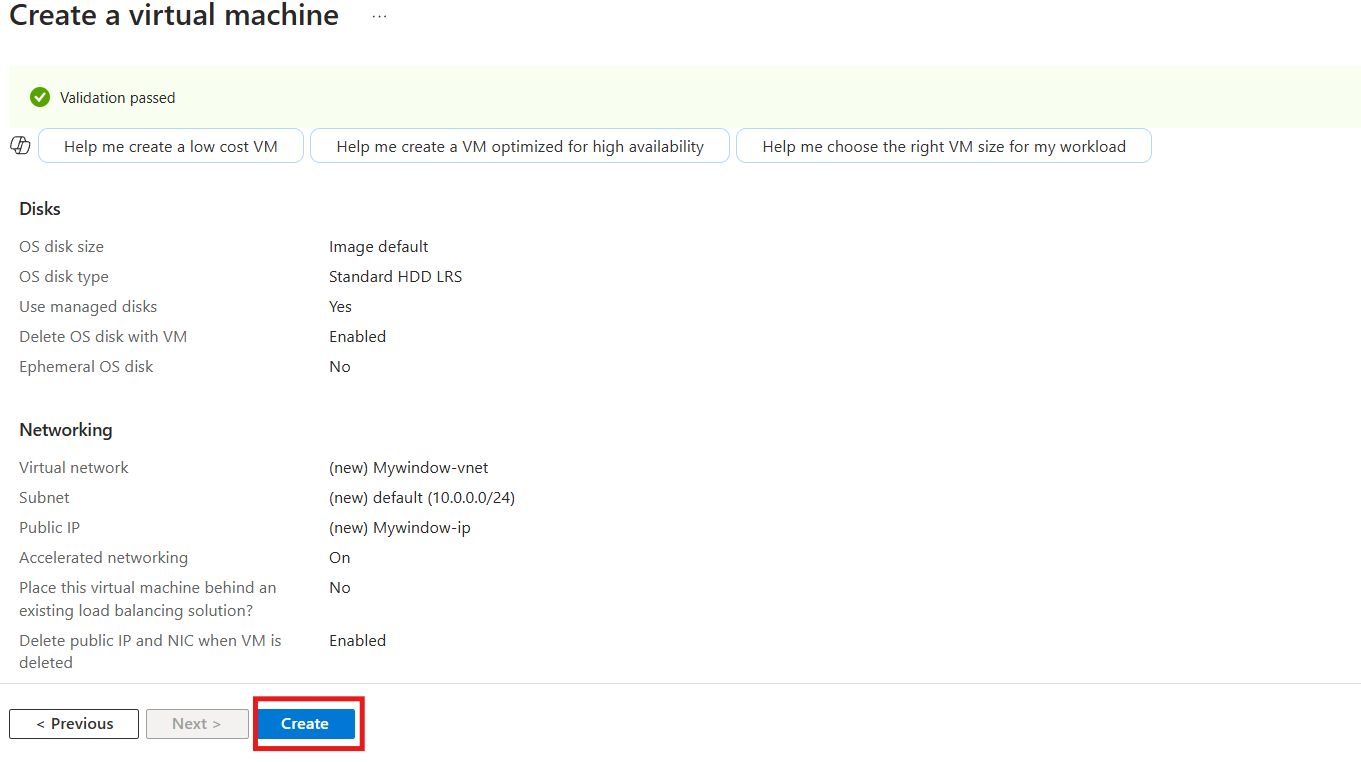

Review and create the VM:
To generate security events for analysis, I modified the Network Security Group to allow inbound traffic and then disabled the Windows Firewall inside the VM.
Important:
This configuration should only be used in an isolated lab. It is not suitable for production environments.

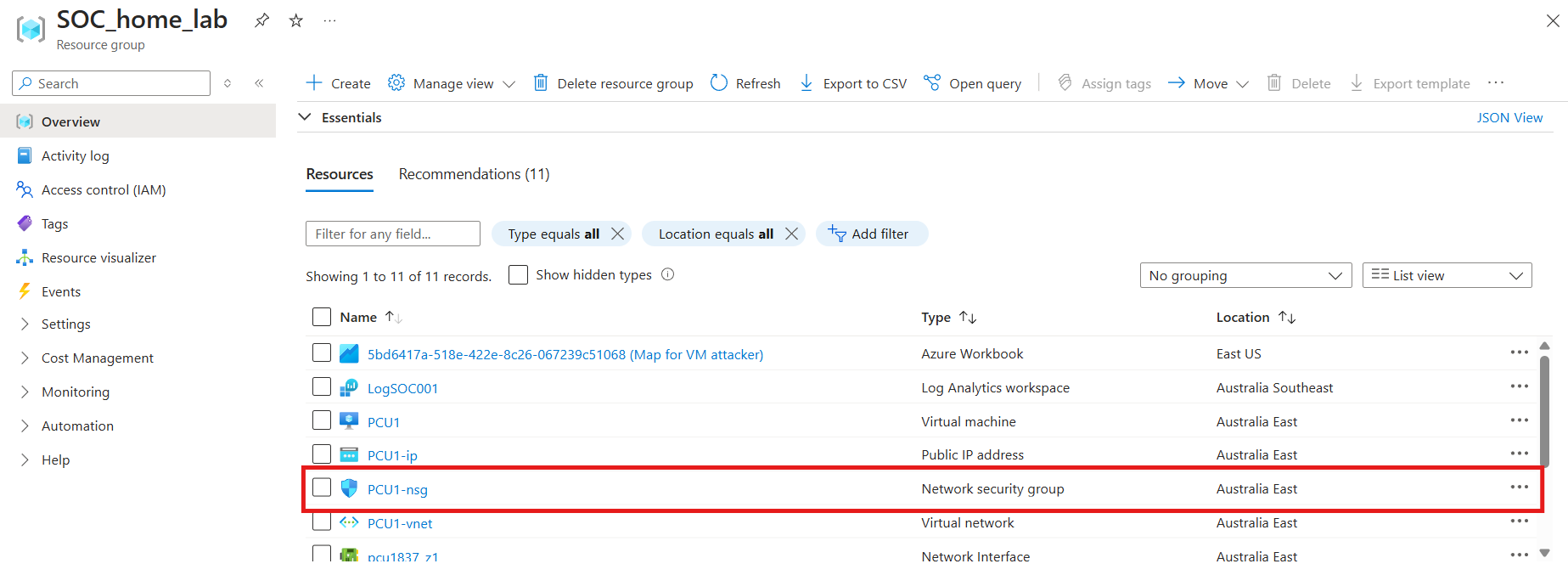

Open the Network Security Group from the Resource Group:

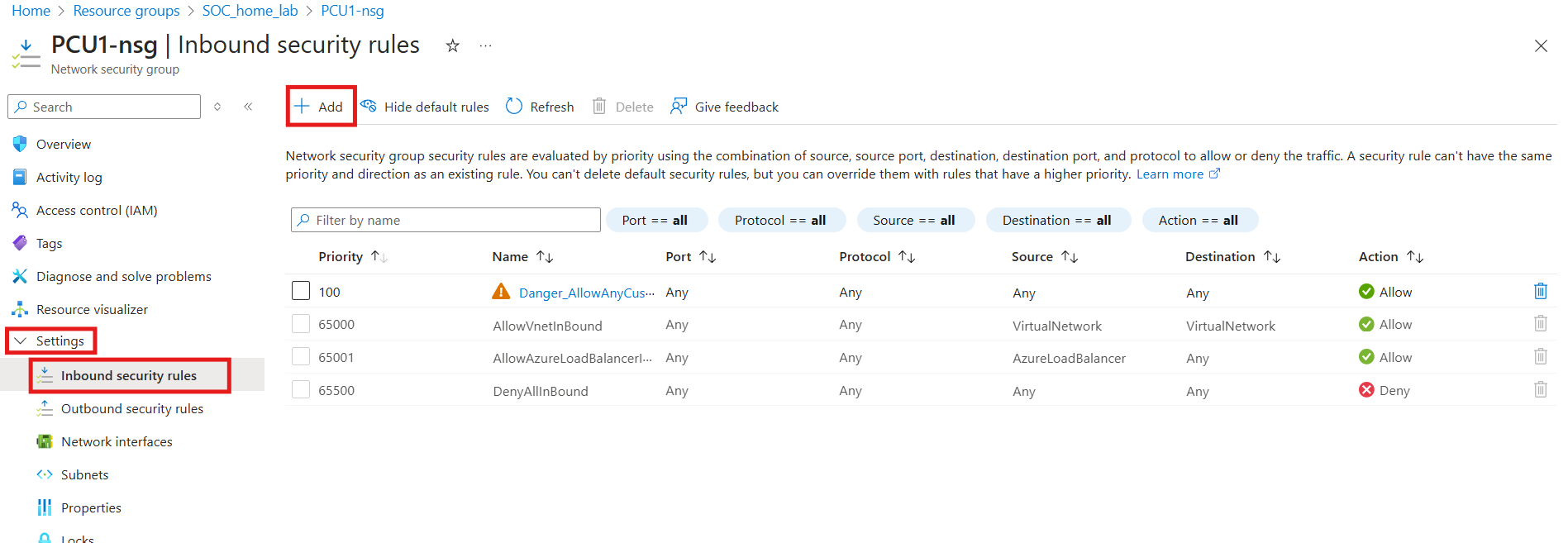

Remove the default inbound rule blocking traffic:

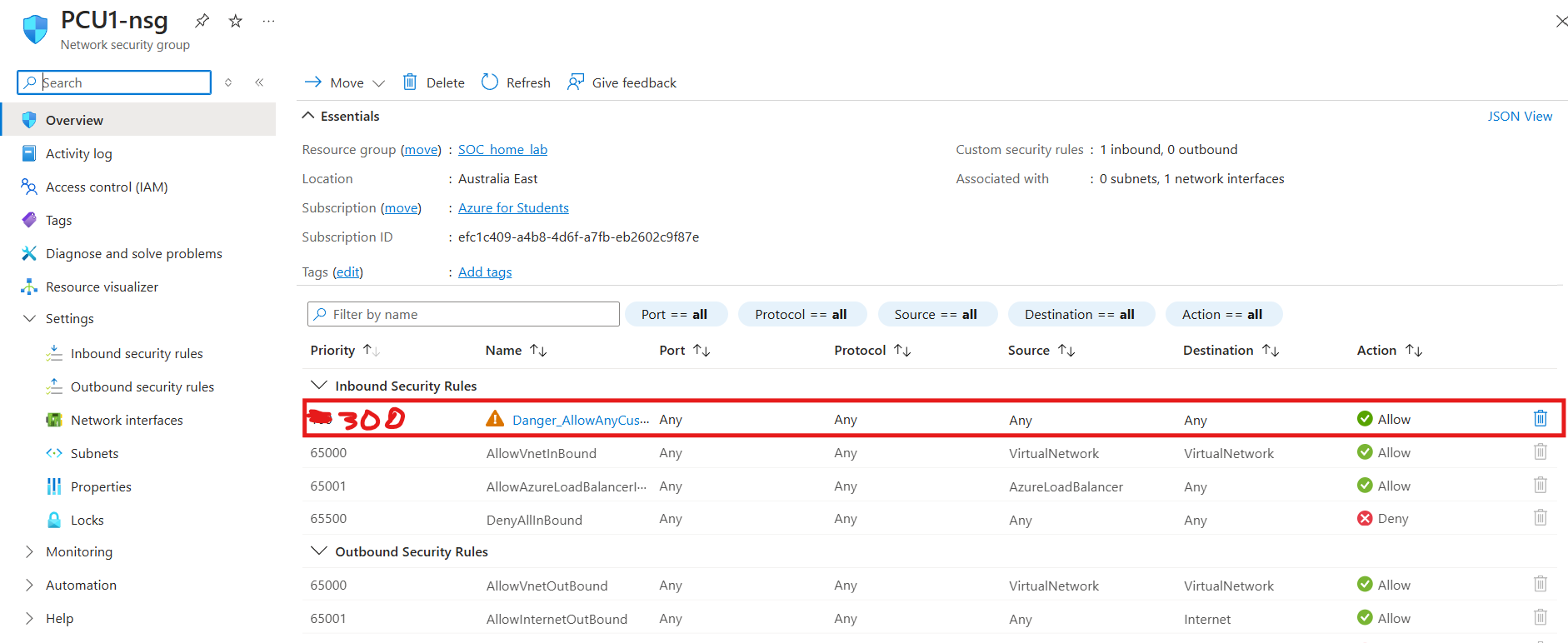

Create a new inbound security rule:

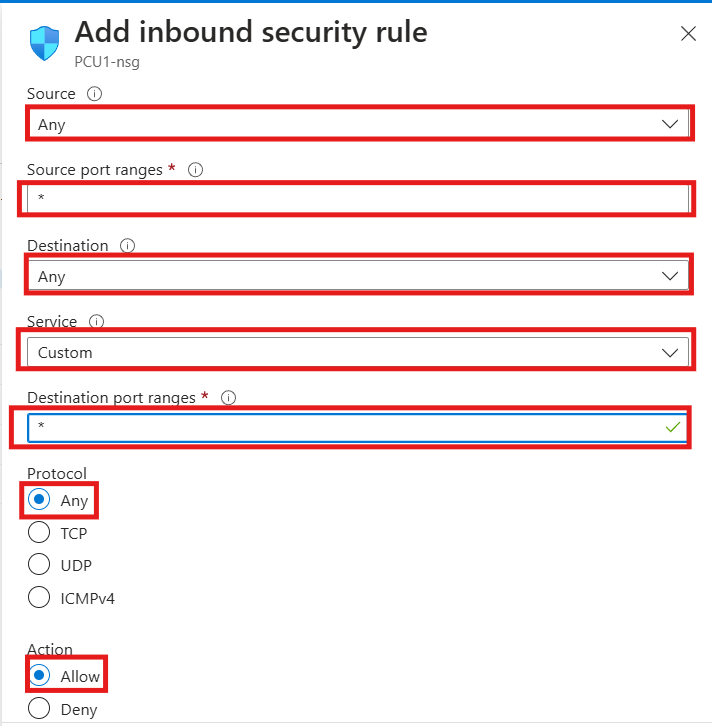

Allow inbound traffic for lab testing:

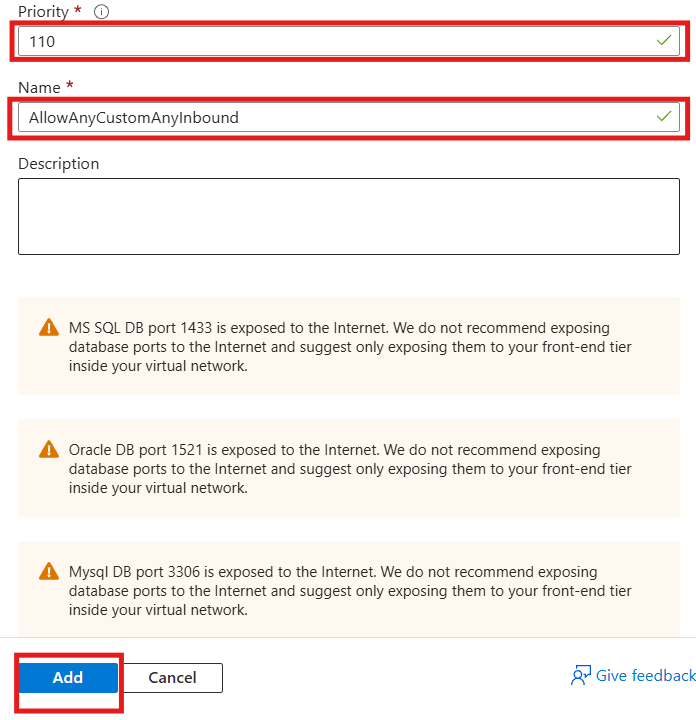

Set rule priority and name:

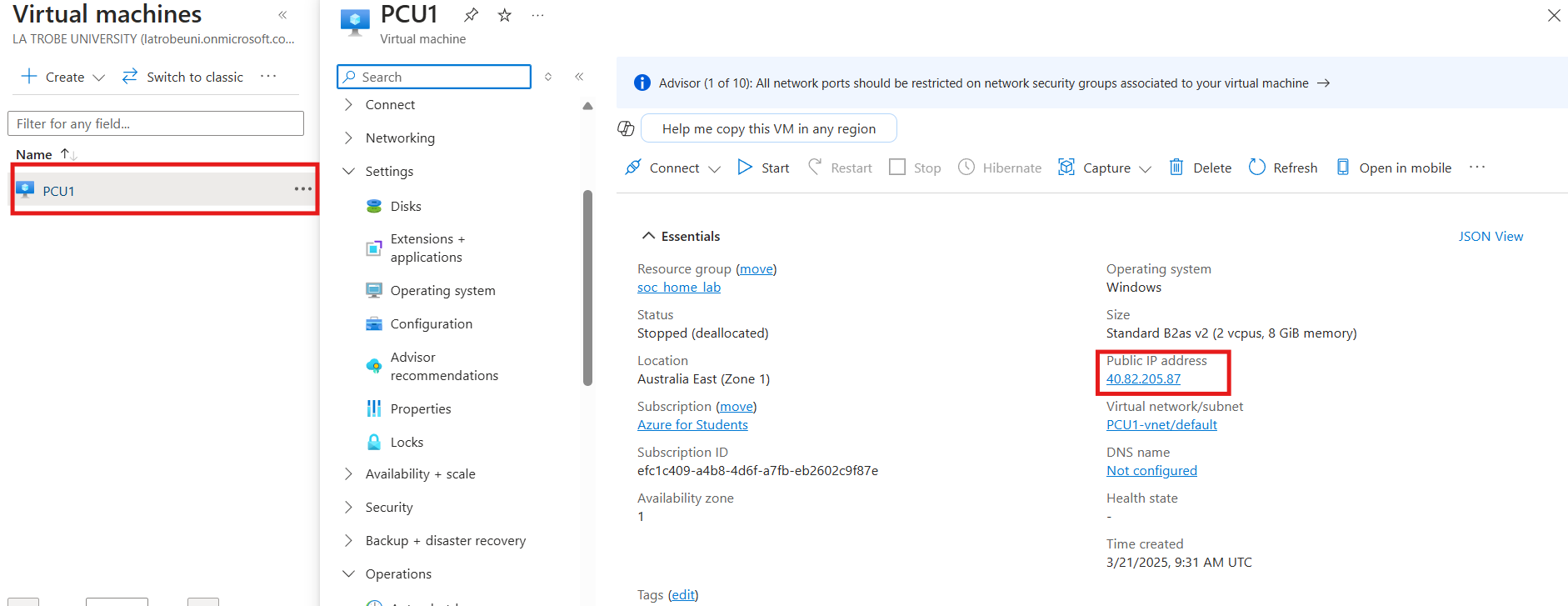

Copy the VM public IP address:

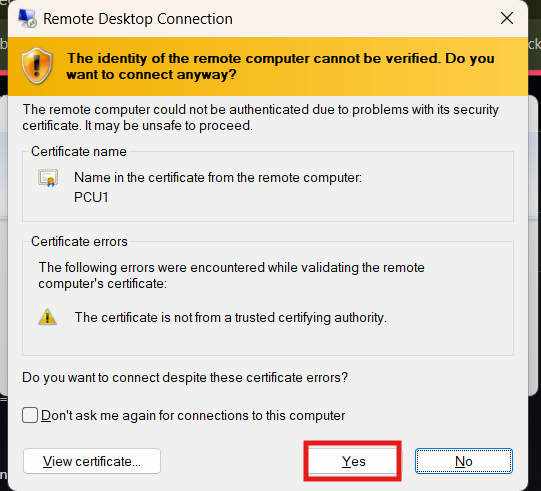

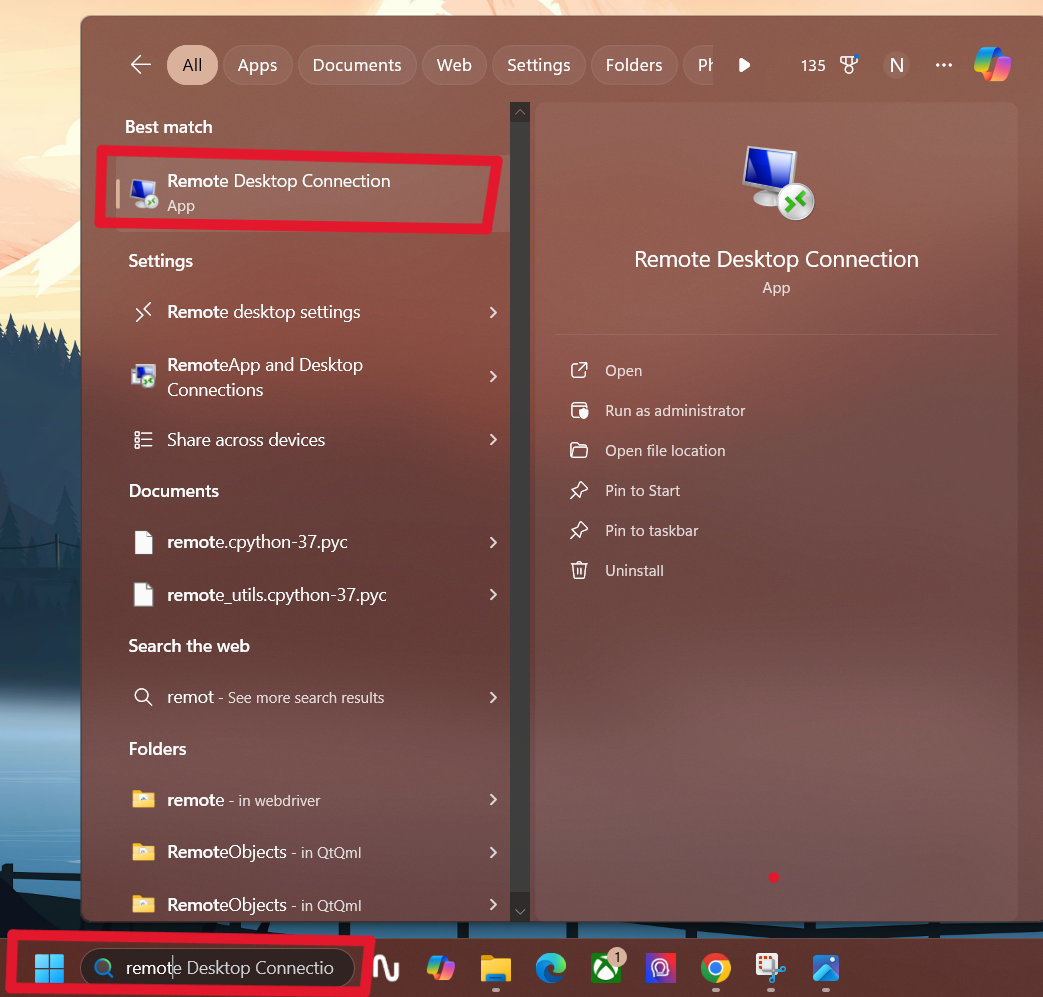

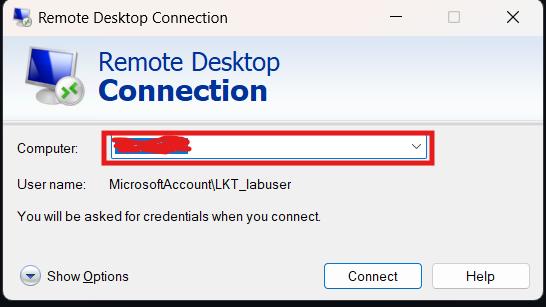

Connect using Remote Desktop:

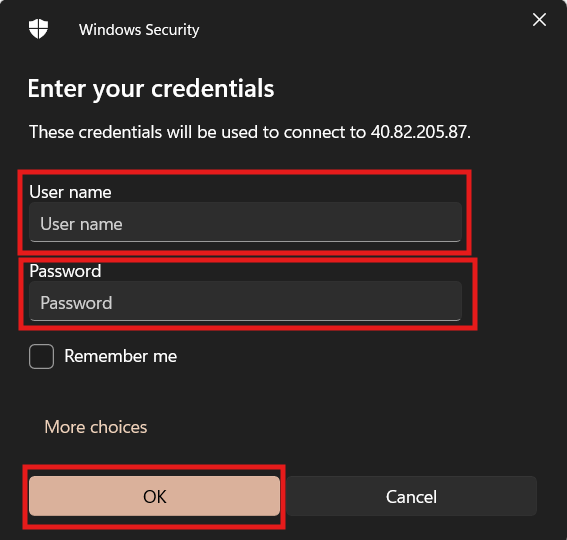

Enter the VM username and password:

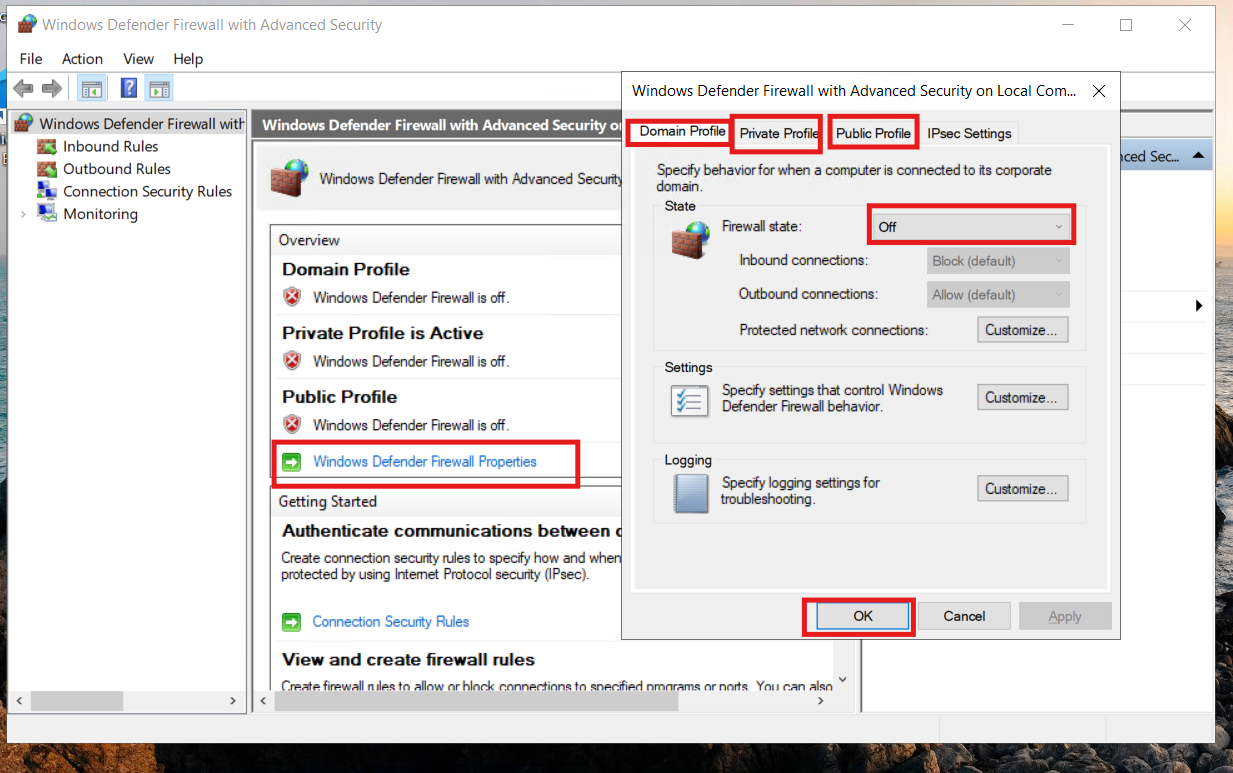

Inside the VM, I opened wf.msc and disabled the Windows Defender Firewall for Domain, Private, and Public profiles.
Open Windows Defender Firewall settings:

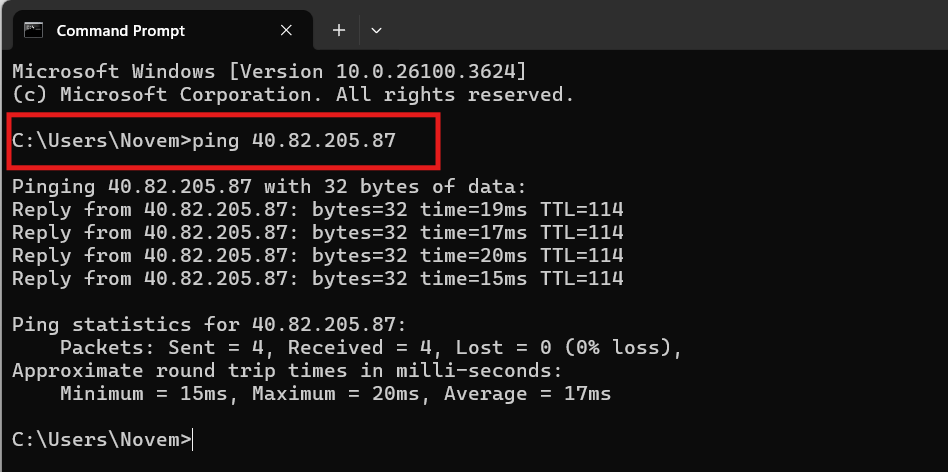

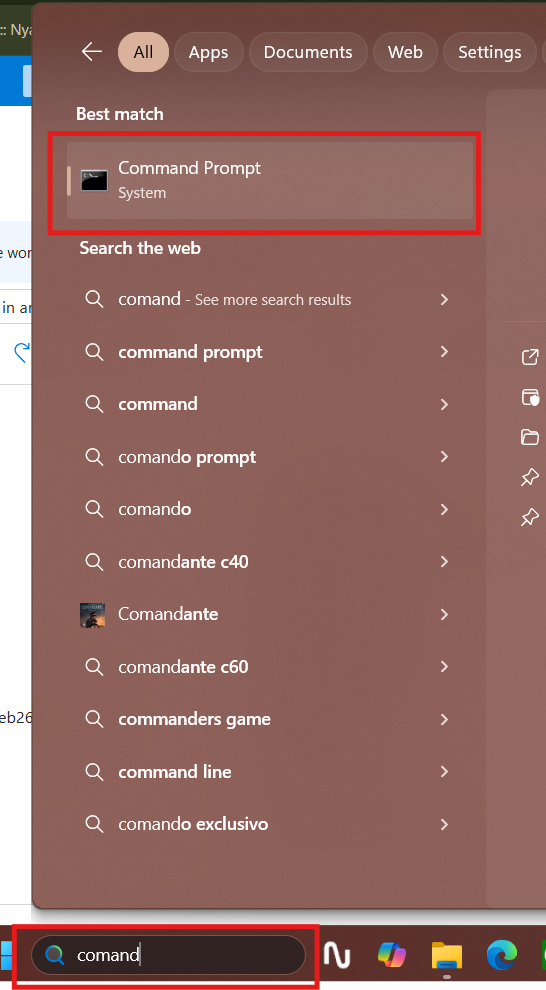

Test connectivity to the VM using ping:
To create test security events, I attempted several failed logins against the VM using an invalid username.

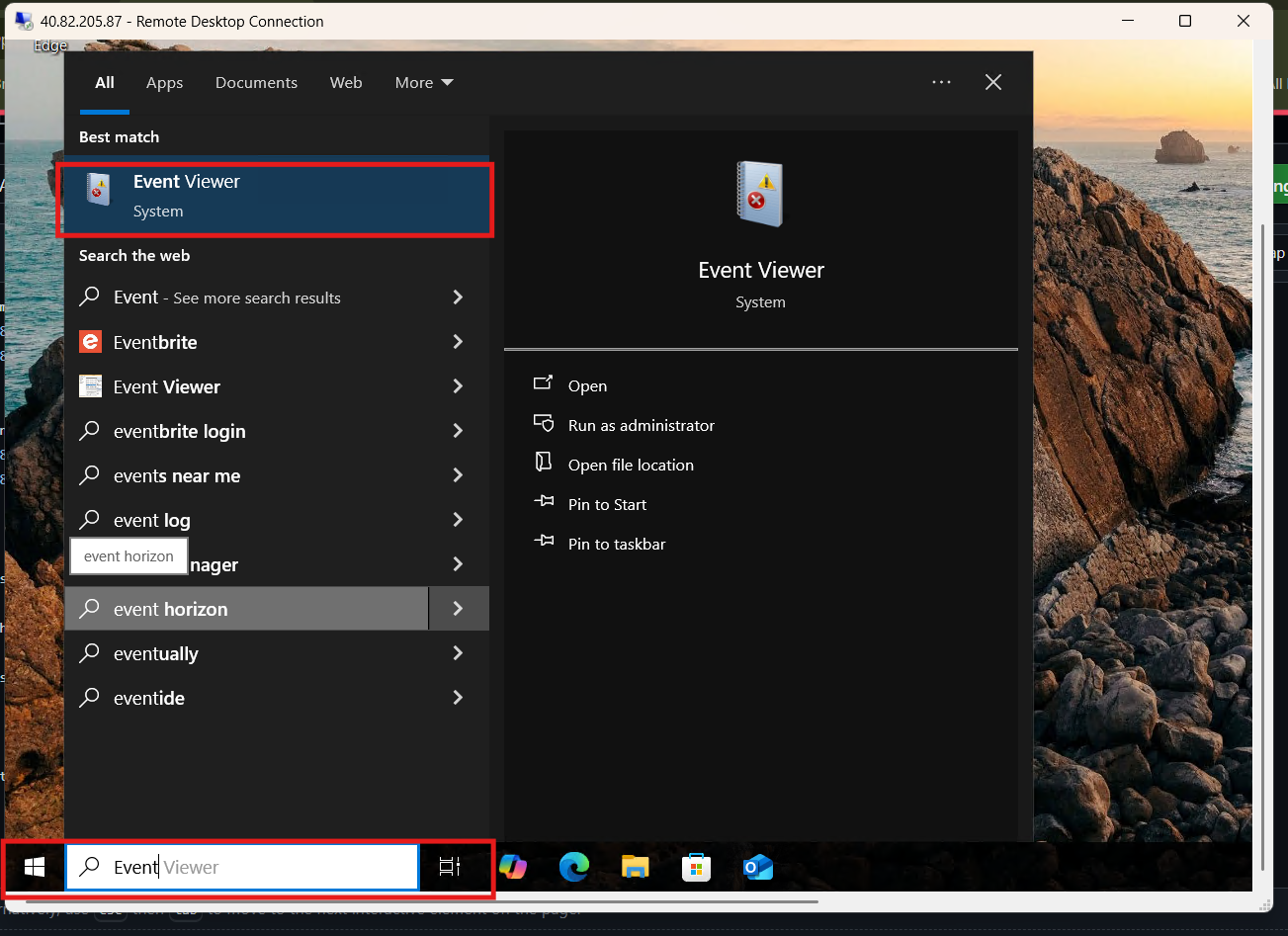

After logging back into the VM, I opened Event Viewer and reviewed the Windows Security logs.
The failed login attempts appeared as:
Event ID: 4625
Description: An account failed to log on

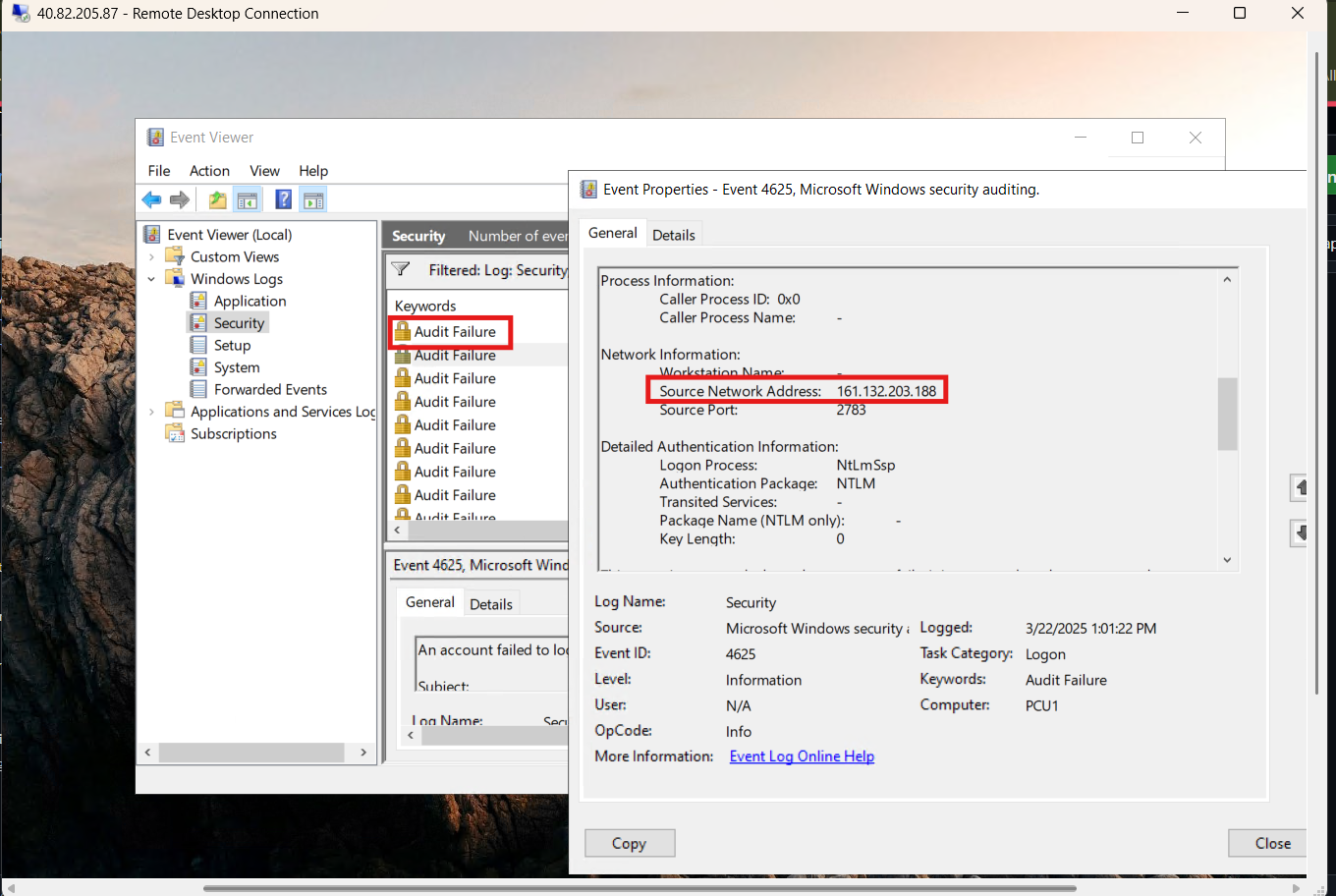

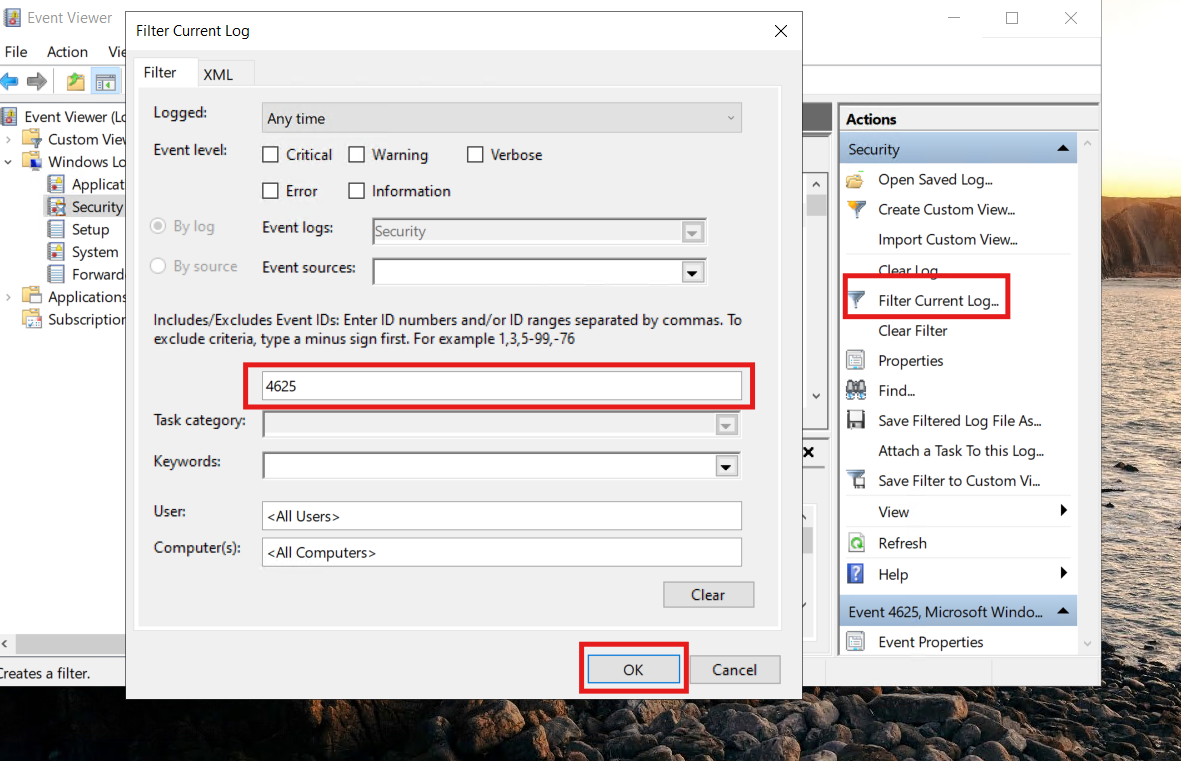

Failed login event evidence in Event Viewer:
This confirmed that the VM was generating useful authentication logs before forwarding them into Microsoft Sentinel.
Next, I created a Log Analytics Workspace to act as the central log repository, then enabled Microsoft Sentinel on top of the workspace.

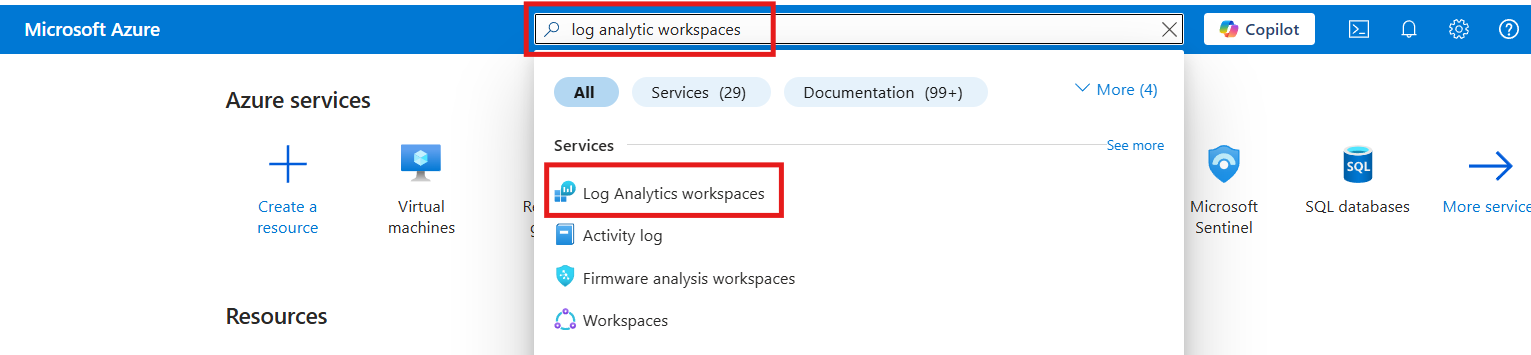

Search for Log Analytics Workspaces:

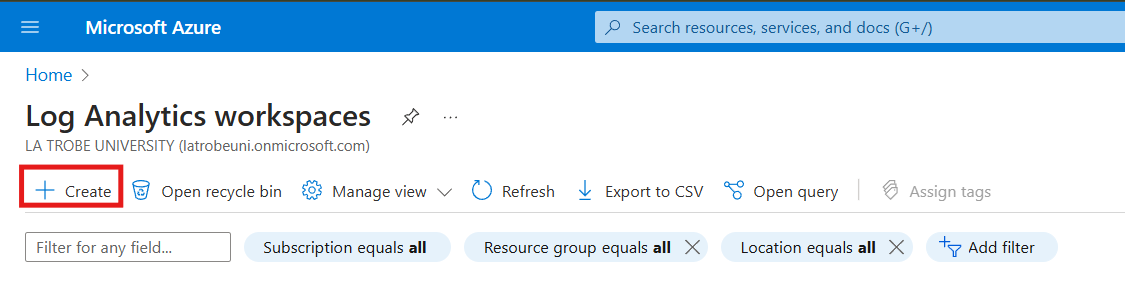

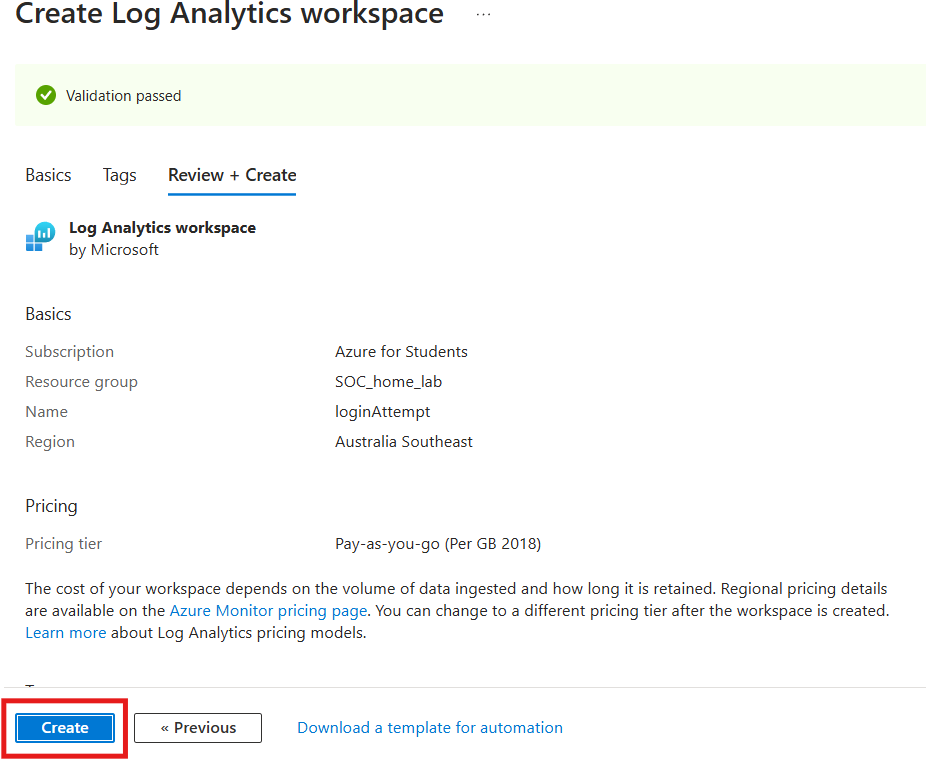

Create Log Analytics Workspace:

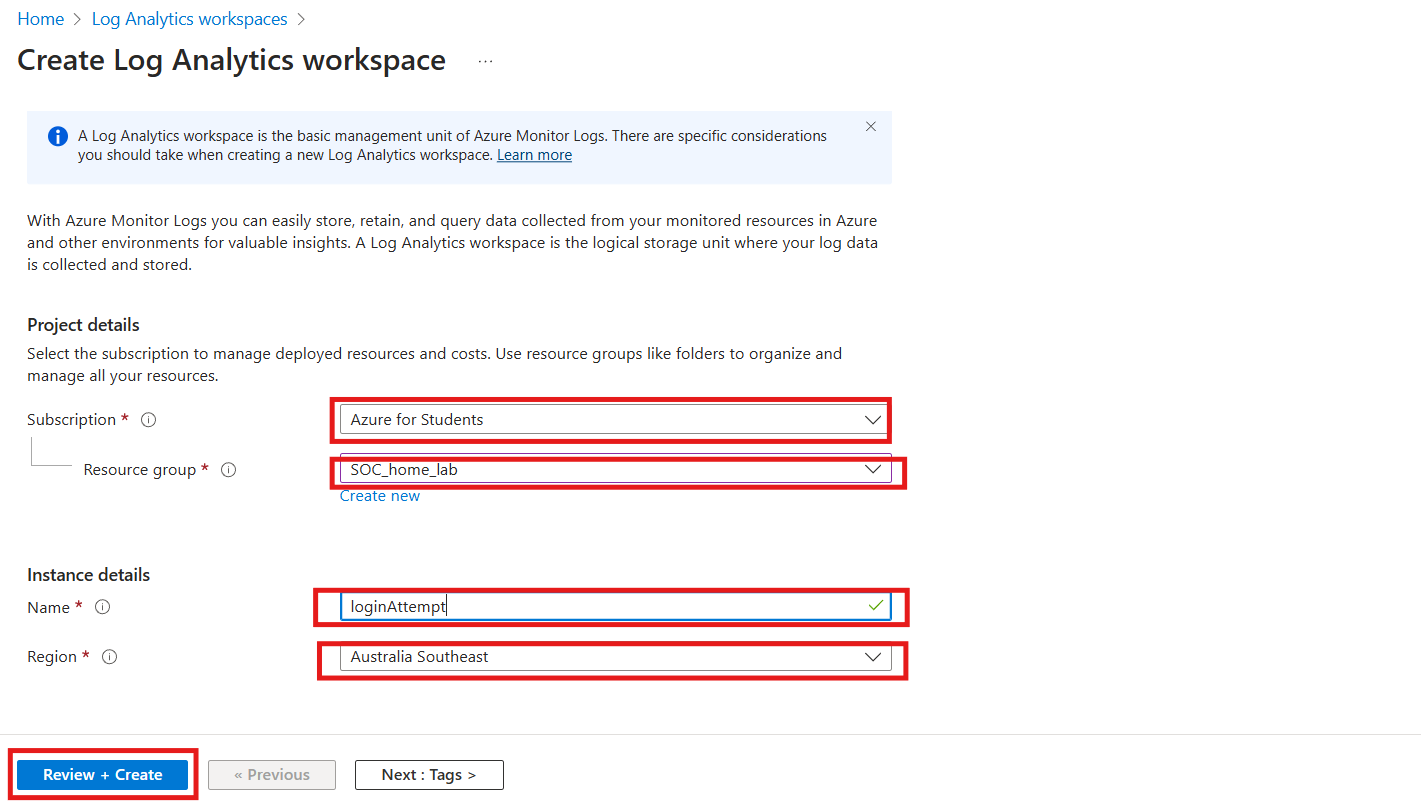

Configure subscription, resource group, workspace name, and region:

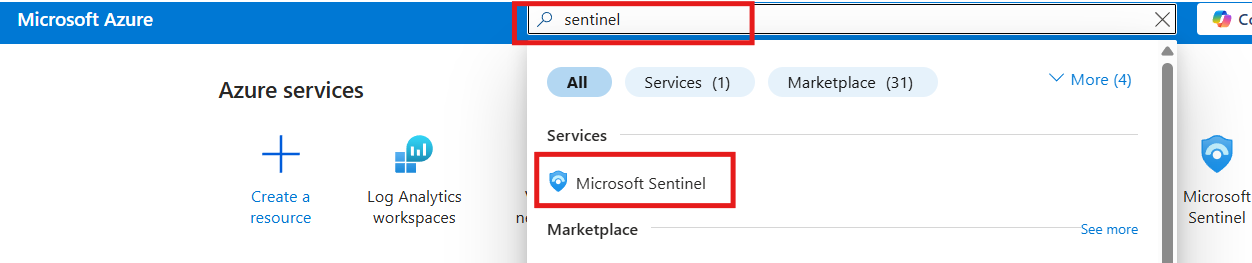

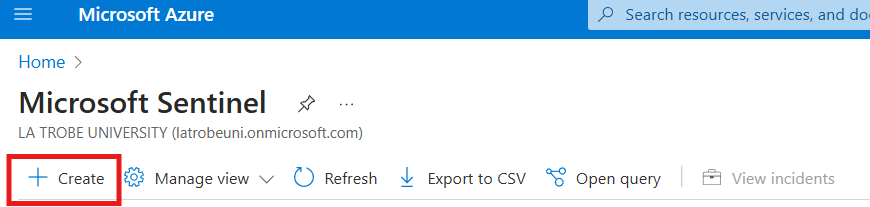

Search for Microsoft Sentinel and create a Sentinel instance:

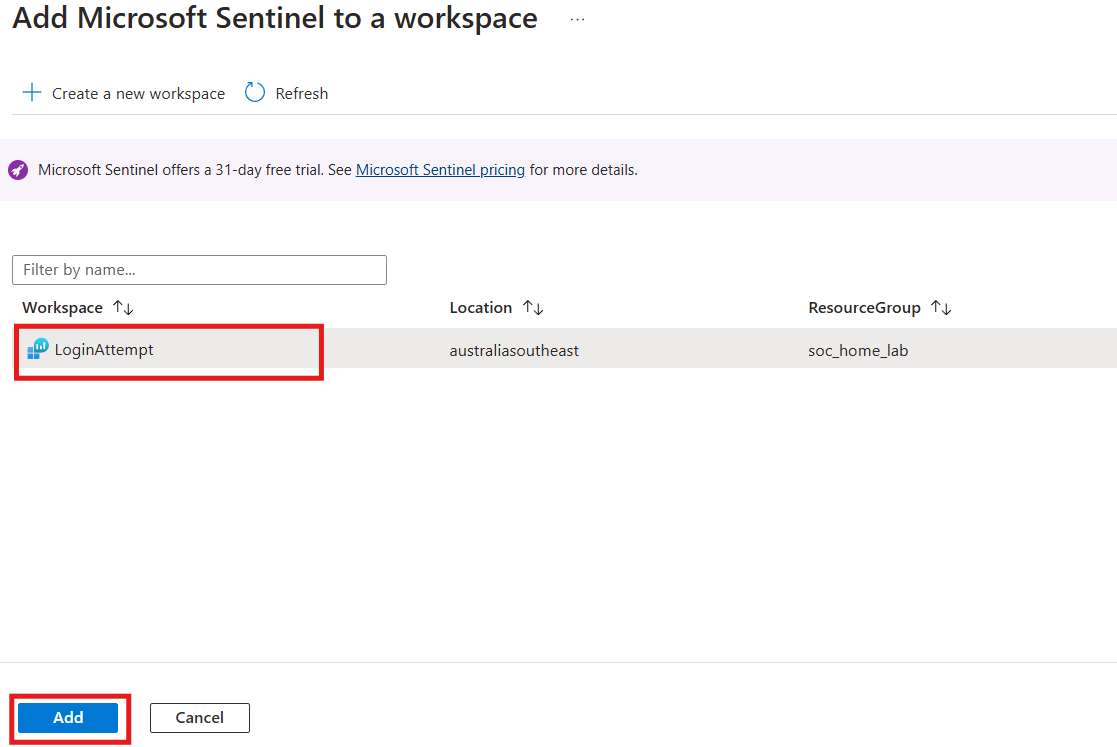

Select the Log Analytics Workspace and add Sentinel:
I configured the Windows Security Events via AMA connector in Microsoft Sentinel.
This created a Data Collection Rule that collected Windows Security Events from the VM and forwarded them to the Log Analytics Workspace.

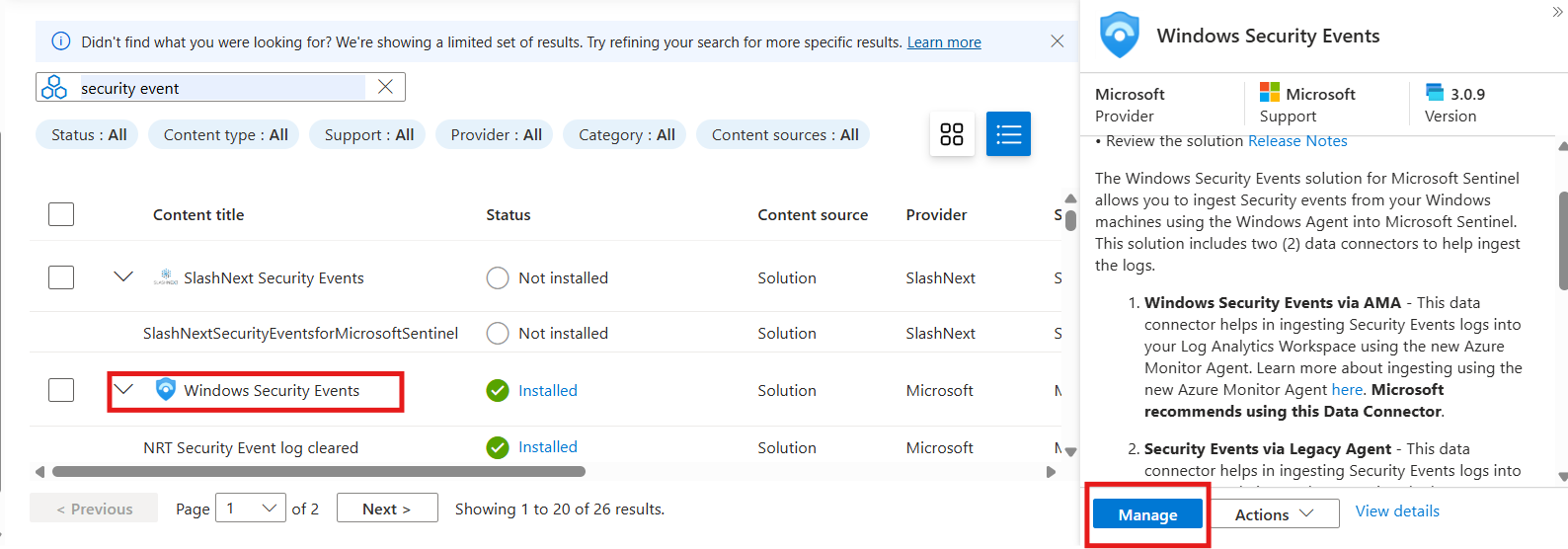

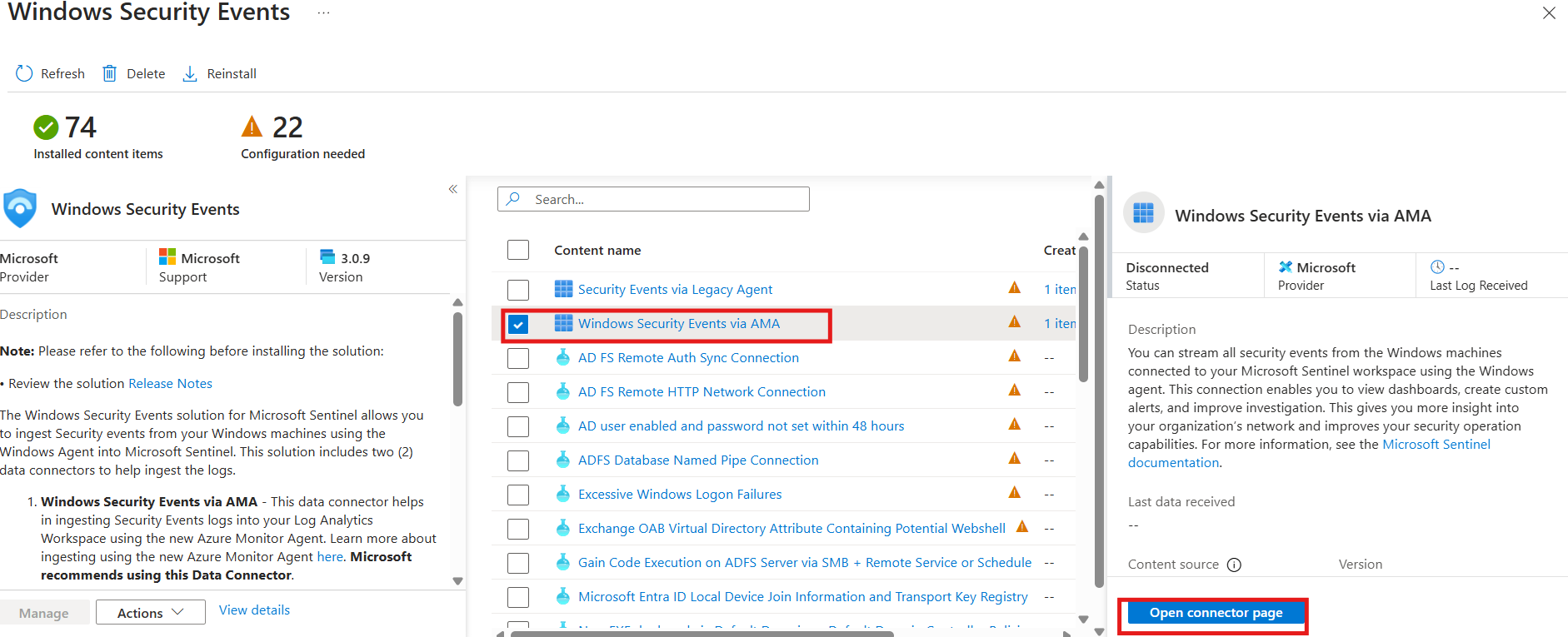

Open Content Hub and select Windows Security Events:
Open Windows Security Events via AMA connector:

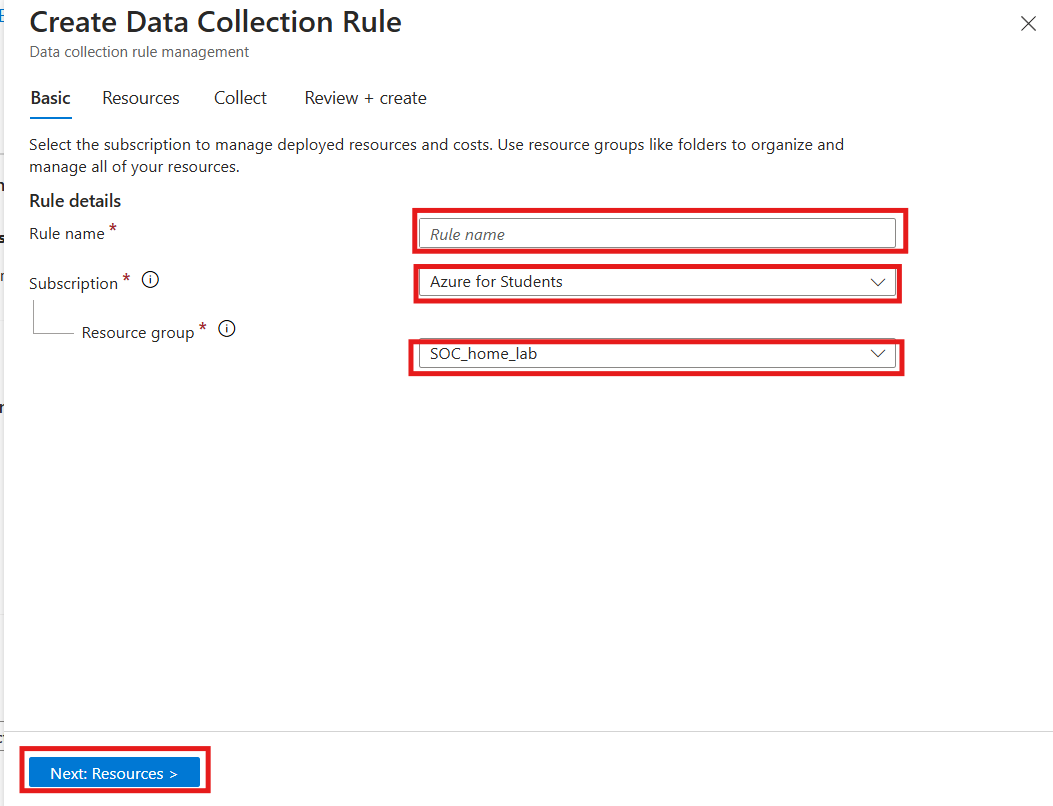

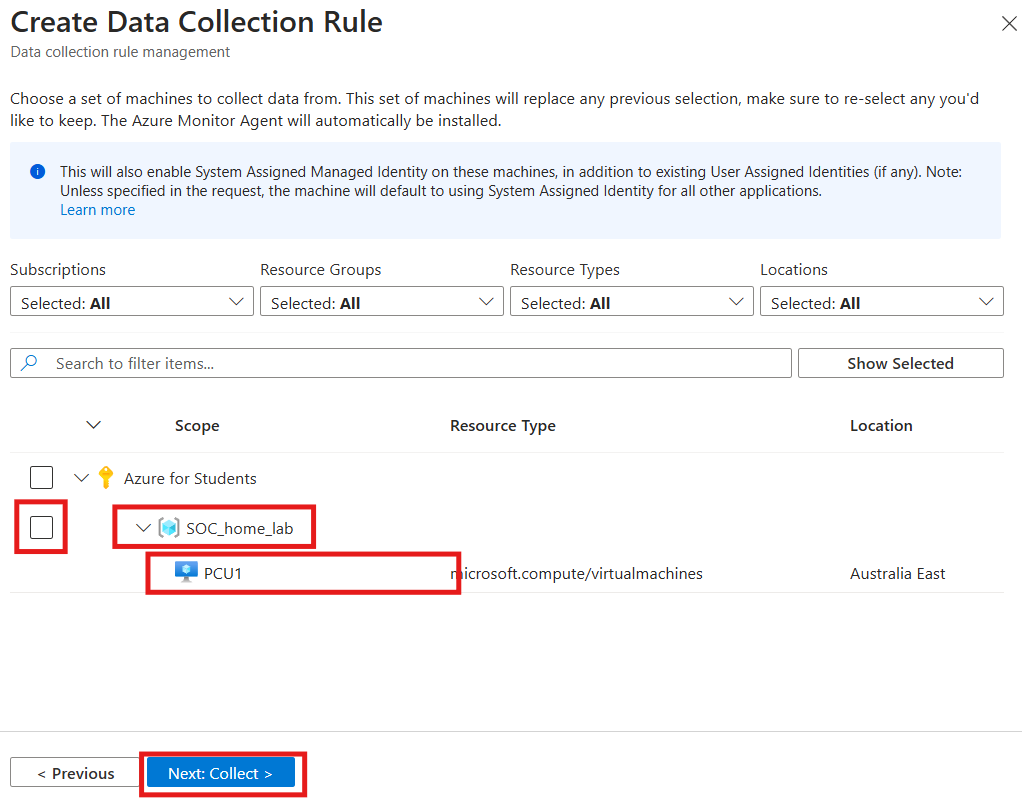

Create Data Collection Rule:

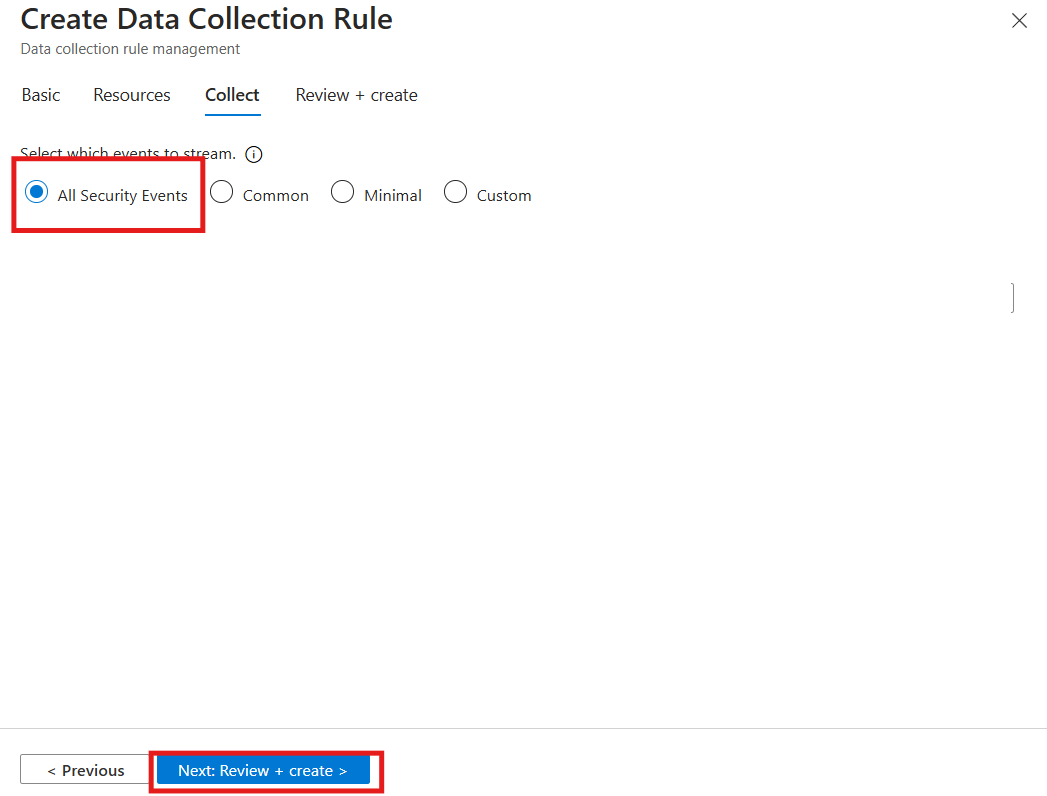

Collect all Security Events:

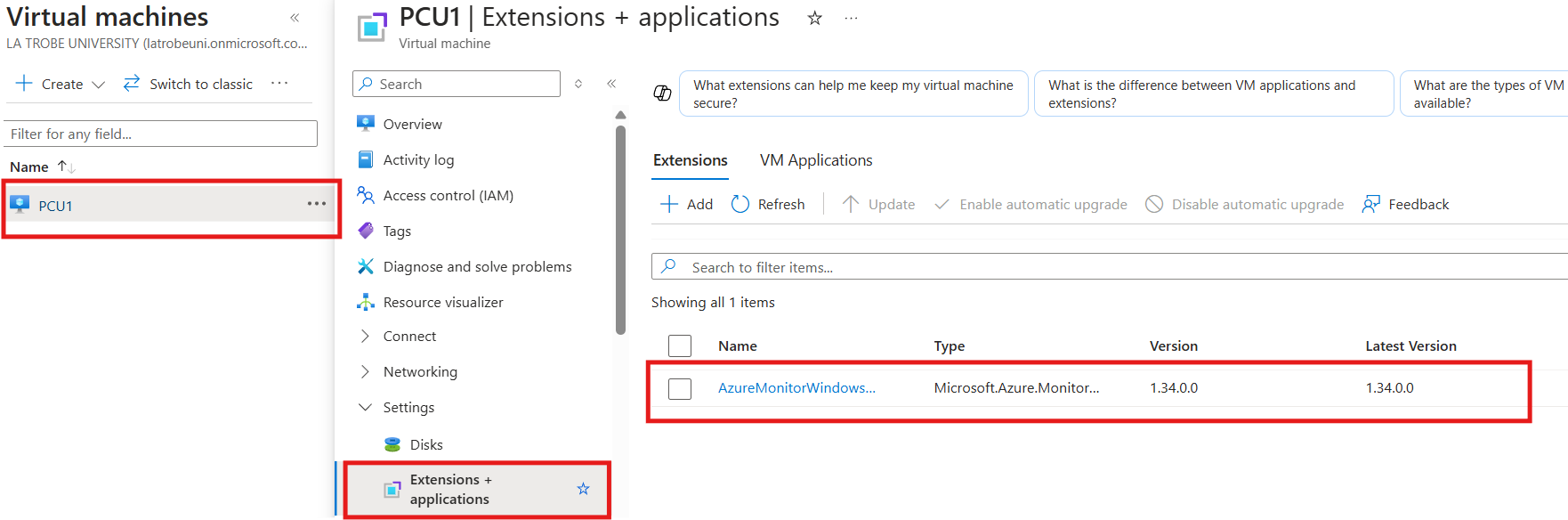

Verify extension installation on the VM:
After logs were collected, I queried the Log Analytics Workspace using KQL.
SecurityEvent
| where EventID == 4625SecurityEvent
| where EventID == 4625
| project TimeGenerated, Account, Computer, IpAddress, Activity, LogonTypeName
| order by TimeGenerated descSecurityEvent
| where EventID == 4625
| where isnotempty(IpAddress)
| summarize FailedLogonAttempts = count() by IpAddress
| order by FailedLogonAttempts descSecurityEvent
| where EventID == 4625
| summarize FailedAttempts = count() by Account, IpAddress
| order by FailedAttempts descSecurityEvent
| where EventID == 4625
| summarize FailedAttempts = count() by bin(TimeGenerated, 1h)
| order by TimeGenerated ascThese queries helped identify failed login patterns, targeted accounts, source IP addresses, and authentication activity over time.
The raw Windows Security Events contained source IP addresses but did not include geographic location data.
To enrich the logs, I imported a GeoIP dataset as a Microsoft Sentinel Watchlist.
GeoIP dataset used in the lab:
https://drive.google.com/file/d/1akZFLmTWRxHECPQaYIHnIfTwPZTctRnz/view?usp=sharing
| Setting | Value |
|---|---|
| Name / Alias | geoip |
| Source Type | Local File |
| Number of lines before row | 0 |
| Search Key | network |
After the watchlist was imported, I was able to correlate source IP addresses with geographic data and use that enrichment in the Sentinel Workbook.
Example enrichment concept:
let GeoIPDB = _GetWatchlist("geoip");
SecurityEvent
| where EventID == 4625
| where isnotempty(IpAddress)
| evaluate ipv4_lookup(GeoIPDB, IpAddress, network)
| project TimeGenerated, Account, IpAddress, latitude, longitude, cityname, countrynameI created a Microsoft Sentinel Workbook to visualize failed authentication attempts by geographic location.
Workbook JSON used in the lab:
https://drive.google.com/file/d/1FLUIkzdbk4ypYg-OEza9e4ZJ9w7kYnu7/view?usp=sharing
- Open Microsoft Sentinel
- Go to Workbooks
- Create a new Workbook
- Remove the default elements
- Add a Query element
- Open the Advanced Editor
- Paste the workbook JSON
- Save and run the Workbook
- Review the attack map visualization
The attack map provided a visual summary of where failed login attempts originated.
This lab successfully demonstrated a basic SOC monitoring workflow in Azure.
- Built an internet-facing Azure Windows VM honeypot
- Generated failed authentication activity
- Confirmed Event ID 4625 logs in Windows Event Viewer
- Forwarded Windows Security Events into Log Analytics Workspace
- Connected Microsoft Sentinel to the workspace
- Queried failed login events using KQL
- Enriched source IP addresses using a Sentinel watchlist
- Created an attack map workbook to visualize authentication activity
- Microsoft Sentinel can be used to collect, investigate, enrich, and visualize Windows security events
- Event ID 4625 is useful for identifying failed authentication attempts
- Azure Monitor Agent and Data Collection Rules are important parts of the log ingestion pipeline
- KQL is essential for SOC investigations and threat detection in Microsoft Sentinel
- Watchlists can enrich security data and improve investigation context
- Honeypots must be isolated, disposable, and removed after testing
- Strong documentation helps turn a lab into portfolio evidence
To reduce cost and security exposure, I deleted the lab resources after testing.
Resources removed:
- Windows VM
- Public IP address
- Network Security Group
- Log Analytics Workspace
- Microsoft Sentinel instance
- Resource Group
Completed.
Future improvements may include:
- Adding Sentinel analytic rules
- Creating incident automation playbooks
- Adding alert severity logic
- Mapping detections to MITRE ATT&CK
- Adding Defender for Cloud recommendations
- Expanding the lab to include multiple log sources
