1D3V Cartesian Support #2307

prkkumar · 2021-09-17T00:21:34Z

This PR introduces 1D3V Cartesian support to WarpX. We adopted the same strategy as for 2D/RZ/3D, i.e. we introduced new preprocessor macro (WARPX_DIM_1D_Z) and corresponding #ifdef conditions. Main updates are listed below:

build system
documentation
algorithms, algorithms:
- Field solver (Cartesian Yee, CKC, Nodal)
- Boundary Conditions (PEC, Silver Muller, Periodic)
- Field Gather
- Current/charge deposition (Only Esirkepov Current Deposition is implemented at the moment)
- Particle pusher
- Filter (Only BilnearFilter)
- Moving Window
- Laser Profiles (Only Gaussian is supported)
data structures & accessors (e.g., particle positions)
tests
CI
I/O
GNUMake build system

Following algorithms have not been adapted for 1D as part of this PR:

PSATD, PML, QED, Ionization, Collisions, OPENPMD.

We have also introduced two CI tests, which are 1D adaptations of Langmuir and laser injection tests. Results of the analysis of these two tests are attached below. Input file corresponding to these tests are
Test 1. Examples/Tests/Langmuir/inputs_1d_multi_rt (Langmuir Test)
Test 2. Examples/Modules/laser_injection/inputs_1d_rt (Laser Injection)

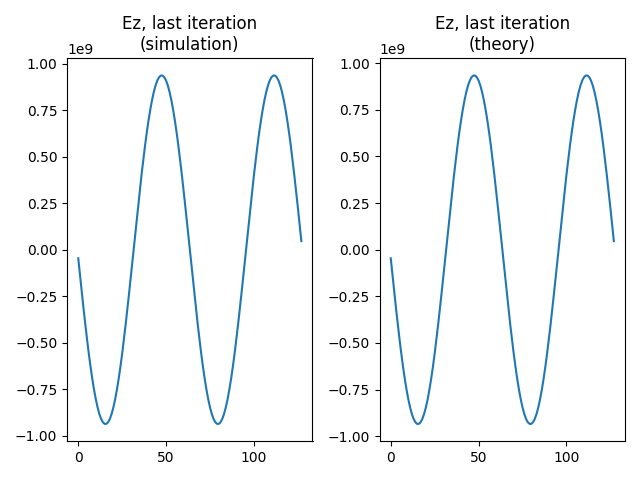

Test 1

Test 2 (Ex)
