Wrong lines in scatter_spec

[swasun]

Hello @timsainb,

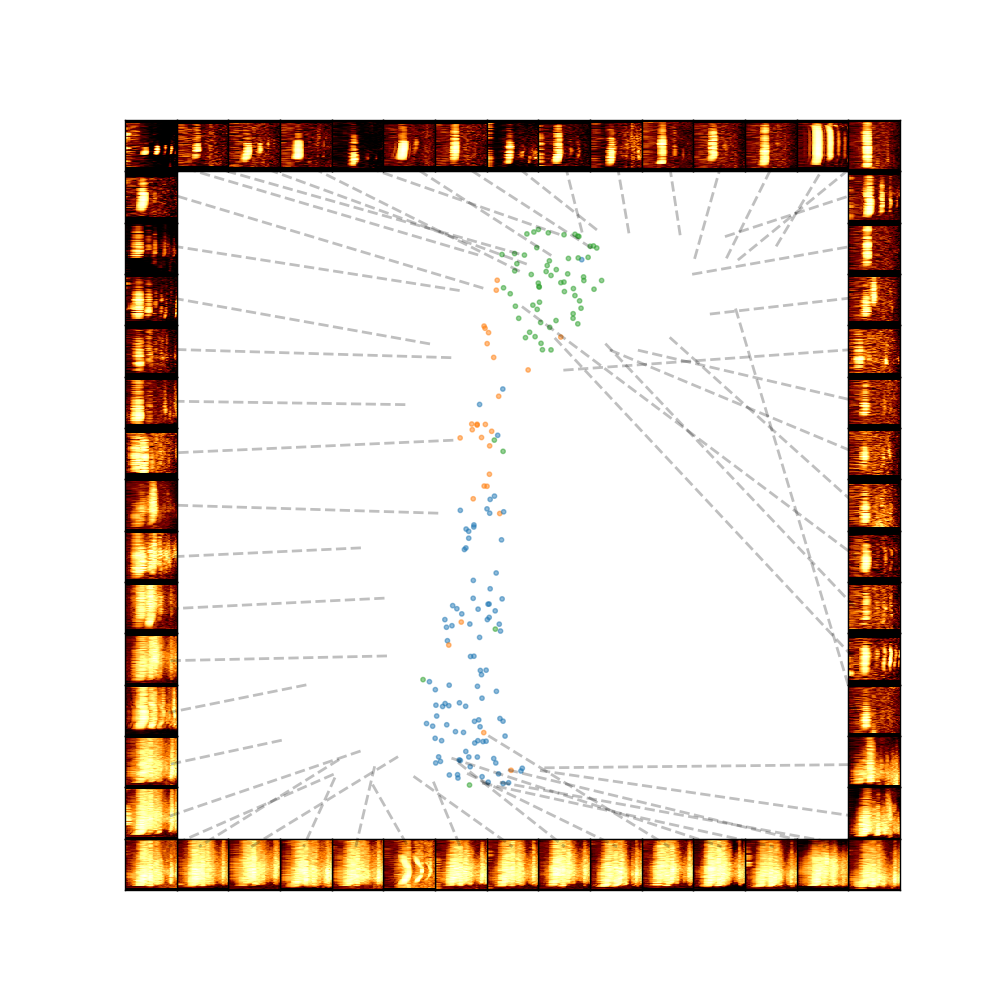

Using scatter_spec() I plotted successfully my UMAP's projection, however the lines added by the parameter draw_lines seem to point at the wrong locations.

Any ideas?

Thanks

[timsainb]

It looks like there's a mismatch between the bounds on the axis with the scatterplot, and what the lines think the bounds are (they seem to think it's more stretched).

The bit of code drawing the lines is here:

avgn_paper/avgn/visualization/projections.py

Lines 443 to 516 in 63e25ca

	lines_list = []
	# loop through regions and select a point
	for key in axs.keys():
	# sample a point in (or near) voronoi region
	nearest_points = np.argsort(np.abs(point_regions - key))
	possible_points = np.where(point_regions == point_regions[nearest_points][0])[0]
	chosen_point = np.random.choice(a=possible_points, size=1)[0]
	point_regions[chosen_point] = 1e4
	# plot point
	if enlarge_points > 0:
	if color_points:
	color = pal[key]
	else:
	color = "k"
	main_ax.scatter(
	[z[chosen_point, 0]],
	[z[chosen_point, 1]],
	color=color,
	s=enlarge_points,
	)
	# draw spec
	axs[key]["ax"].matshow(
	specs[chosen_point],
	origin=img_origin,
	interpolation="none",
	aspect="auto",
	**matshow_kwargs,
	)
	axs[key]["ax"].set_xticks([])
	axs[key]["ax"].set_yticks([])
	if color_points:
	plt.setp(axs[key]["ax"].spines.values(), color=pal[key])
	for i in axs[key]["ax"].spines.values():
	i.set_linewidth(border_line_width)
	# draw a line between point and image
	if draw_lines:
	mytrans = (
	axs[key]["ax"].transAxes + axs[key]["ax"].figure.transFigure.inverted()
	)
	line_end_pos = [0.5, 0.5]
	if axs[key]["row"] == 0:
	line_end_pos[1] = 0
	if axs[key]["row"] == column_size - 1:
	line_end_pos[1] = 1
	if axs[key]["col"] == 0:
	line_end_pos[0] = 1
	if axs[key]["col"] == column_size - 1:
	line_end_pos[0] = 0
	infig_position = mytrans.transform(line_end_pos)
	xpos, ypos = main_ax.transLimits.transform(
	(z[chosen_point, 0], z[chosen_point, 1])
	)
	mytrans2 = main_ax.transAxes + main_ax.figure.transFigure.inverted()
	infig_position_start = mytrans2.transform([xpos, ypos])
	color = pal[key] if color_points else "k"
	lines_list.append(
	lines.Line2D(
	[infig_position_start[0], infig_position[0]],
	[infig_position_start[1], infig_position[1]],
	color=color,
	transform=fig.transFigure,
	**line_kwargs,
	)
	)

I don't have time to debug where that issue is coming from at the moment. I did re-write that function recently to sample from the scatterplot distributionally, rather than using a voronoi diagram, which should not have the same error. Rather than drawing a spectrogram on the sides, it will draw a line plot because the function was meant for plotting spikes. But you can just replace the line drawing bit (plot_chans) with matshow.

import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
import umap
from tqdm.autonotebook import tqdm
import matplotlib.collections as mcoll
import matplotlib.path as mpath
from matplotlib import collections as mc
import seaborn as sns
from matplotlib.lines import Line2D
from matplotlib import gridspec
from scipy.spatial import Voronoi, voronoi_plot_2d
from scipy.spatial import cKDTree
from matplotlib import lines
import matplotlib.colors
import matplotlib.cm as cm
from mpl_toolkits.axes_grid1.inset_locator import inset_axes


def scatter_spikes(
    z,
    spikes,
    z_samples=None,
    column_size=10,
    pal_color="hls",
    matshow_kwargs={"cmap": plt.cm.Greys},
    scatter_kwargs={"alpha": 0.5, "s": 1},
    line_kwargs={"lw": 1, "ls": "dashed", "alpha": 1},
    color_points=False,
    figsize=(10, 10),
    range_pad=0.1,
    x_range=None,
    y_range=None,
    enlarge_points=0,
    draw_lines=True,
    n_subset=-1,
    ax=None,
    show_scatter=True,
    border_line_width=1,
    range_pct=0.99,
    plot_spike_line=False,
    img_origin="lower",
):
    """"""
    n_columns = column_size * 4 - 4
    pal = sns.color_palette(pal_color, n_colors=n_columns)

    fig = plt.figure(figsize=figsize)
    gs = gridspec.GridSpec(column_size, column_size)

    if x_range is None and y_range is None:
        xmin, xmax = np.sort(np.vstack(z)[:, 0])[
            np.array([int(len(z) * (1 - range_pct)), int(len(z) * range_pct)])
        ]
        ymin, ymax = np.sort(np.vstack(z)[:, 1])[
            np.array([int(len(z) * (1 - range_pct)), int(len(z) * range_pct)])
        ]
        # xmin, ymin = np.min(z, axis=0)
        # xmax, ymax = np.max(z, axis=0)
        xmin -= (xmax - xmin) * range_pad
        xmax += (xmax - xmin) * range_pad
        ymin -= (ymax - ymin) * range_pad
        ymax += (ymax - ymin) * range_pad
    else:
        xmin, xmax = x_range
        ymin, ymax = y_range

    x_block = (xmax - xmin) / column_size
    y_block = (ymax - ymin) / column_size

    # ignore segments outside of range
    z = np.array(z)
    mask = np.array(
        [(z[:, 0] > xmin) & (z[:, 1] > ymin) & (z[:, 0] < xmax) & (z[:, 1] < ymax)]
    )[0]

    if "labels" in scatter_kwargs:
        scatter_kwargs["labels"] = np.array(scatter_kwargs["labels"])[mask]
    if z_samples is None:
        spikes = np.array(spikes)[mask]
    z = z[mask]

    # prepare the main axis
    main_ax = fig.add_subplot(gs[1 : column_size - 1, 1 : column_size - 1])
    # main_ax.scatter(z[:, 0], z[:, 1], **scatter_kwargs)
    if show_scatter:
        scatter_projections(projection=z, ax=main_ax, fig=fig, **scatter_kwargs)

    # loop through example columns
    axs = {}
    for column in range(n_columns):
        # get example column location
        if column < column_size:
            row = 0
            col = column

        elif (column >= column_size) & (column < (column_size * 2) - 1):
            row = column - column_size + 1
            col = column_size - 1

        elif (column >= ((column_size * 2) - 1)) & (column < (column_size * 3 - 2)):
            row = column_size - 1
            col = column_size - 3 - (column - column_size * 2)
        elif column >= column_size * 3 - 3:
            row = n_columns - column
            col = 0

        axs[column] = {"ax": fig.add_subplot(gs[row, col]), "col": col, "row": row}

        # sample a point in z based upon the row and column
        xpos = xmin + x_block * col + x_block / 2
        ypos = ymax - y_block * row - y_block / 2
        # main_ax.text(x=xpos, y=ypos, s=column, color=pal[column])

        axs[column]["xpos"] = xpos
        axs[column]["ypos"] = ypos

    main_ax.set_xlim([xmin, xmax])
    main_ax.set_ylim([ymin, ymax])

    # create a voronoi diagram over the x and y pos points
    points = [[axs[i]["xpos"], axs[i]["ypos"]] for i in axs.keys()]

    voronoi_kdtree = cKDTree(points)
    vor = Voronoi(points)

    # plot voronoi
    # voronoi_plot_2d(vor, ax = main_ax);

    # find where each point lies in the voronoi diagram
    if z_samples is None:
        z = z[:n_subset]
        point_dist, point_regions = voronoi_kdtree.query(list(z))
    else:
        point_dist, point_regions = voronoi_kdtree.query(list(z_samples))

    lines_list = []

    # loop through regions and select a point
    for key in axs.keys():
        # sample a point in (or near) voronoi region
        nearest_points = np.argsort(np.abs(point_regions - key))
        possible_points = np.where(point_regions == point_regions[nearest_points][0])[0]
        chosen_point = np.random.choice(a=possible_points, size=1)[0]
        point_regions[chosen_point] = 1e4

        def plot_chans(chans, ax):
            std_chan = np.std(chans)
            for ci, chan in enumerate(chans):
                ax.plot(chan + 3 * (std_chan * ci))  # , color="k")
            if plot_spike_line:
                ax.axvline(30, color="k", ls="dashed", alpha=0.5)

        plot_chans(spikes[chosen_point], axs[key]["ax"])

        axs[key]["ax"].set_xticks([])
        axs[key]["ax"].set_yticks([])
        if color_points:
            plt.setp(axs[key]["ax"].spines.values(), color=pal[key])

        for i in axs[key]["ax"].spines.values():
            i.set_linewidth(border_line_width)

        # draw a line between point and image
        if draw_lines:
            mytrans = (
                axs[key]["ax"].transAxes + axs[key]["ax"].figure.transFigure.inverted()
            )

            line_end_pos = [0.5, 0.5]

            if axs[key]["row"] == 0:
                line_end_pos[1] = 0
            if axs[key]["row"] == column_size - 1:
                line_end_pos[1] = 1

            if axs[key]["col"] == 0:
                line_end_pos[0] = 1
            if axs[key]["col"] == column_size - 1:
                line_end_pos[0] = 0

            infig_position = mytrans.transform(line_end_pos)
            if z_samples is None:
                xpos, ypos = main_ax.transLimits.transform(
                    (z[chosen_point, 0], z[chosen_point, 1])
                )
            else:
                xpos, ypos = main_ax.transLimits.transform(
                    (z_samples[chosen_point, 0], z_samples[chosen_point, 1])
                )
            mytrans2 = main_ax.transAxes + main_ax.figure.transFigure.inverted()
            infig_position_start = mytrans2.transform([xpos, ypos])

            lines_list.append(
                lines.Line2D(
                    [infig_position_start[0], infig_position[0]],
                    [infig_position_start[1], infig_position[1]],
                    transform=fig.transFigure,
                    **line_kwargs,
                )
            )
    if draw_lines:
        for l in lines_list:
            fig.lines.append(l)

    gs.update(wspace=0, hspace=0)
    # gs.update(wspace=0.5, hspace=0.5)

    fig = plt.gcf()

    if ax is not None:
        buf = io.BytesIO()
        plt.savefig(buf, dpi=300, bbox_inches="tight", pad_inches=0)
        buf.seek(0)
        im = Image.open(buf)
        ax.imshow(im)
        plt.close(fig)

    return fig, axs, main_ax, [xmin, xmax, ymin, ymax]


def scatter_projections(
    projection,
    labels=None,
    ax=None,
    figsize=(10, 10),
    alpha=0.1,
    s=1,
    color="k",
    color_palette="tab20",
    categorical_labels=True,
    show_legend=True,
    tick_pos="bottom",
    tick_size=16,
    cbar_orientation="vertical",
    log_x=False,
    log_y=False,
    grey_unlabelled=True,
    fig=None,
    colornorm=False,
    rasterized=True,
    equalize_axes=True,
    print_lab_dict=False,  # prints color scheme
):
    """creates a scatterplot of syllables using some projection"""

    # color labels
    if labels is not None:
        if categorical_labels:
            if (color_palette == "tab20") & (len(np.unique(labels)) < 20):
                pal = sns.color_palette(color_palette, n_colors=20)
                pal = np.array(pal)[
                    np.linspace(0, 19, len(np.unique(labels))).astype("int")
                ]
                # print(pal)
            else:
                pal = sns.color_palette(color_palette, n_colors=len(np.unique(labels)))
            lab_dict = {lab: pal[i] for i, lab in enumerate(np.unique(labels))}
            if grey_unlabelled:
                if -1 in lab_dict.keys():
                    lab_dict[-1] = [0.95, 0.95, 0.95, 1.0]
                if print_lab_dict:
                    print(lab_dict)
            colors = np.array([lab_dict[i] for i in labels])
    else:
        colors = color

    if ax is None:
        fig, ax = plt.subplots(figsize=figsize)

        # plot
    if colornorm:
        norm = norm = matplotlib.colors.LogNorm()
    else:
        norm = None
    if categorical_labels or labels is None:
        ax.scatter(
            projection[:, 0],
            projection[:, 1],
            rasterized=rasterized,
            alpha=alpha,
            s=s,
            color=colors,
            norm=norm,
        )

    else:
        cmin = np.quantile(labels, 0.01)
        cmax = np.quantile(labels, 0.99)
        sct = ax.scatter(
            projection[:, 0],
            projection[:, 1],
            vmin=cmin,
            vmax=cmax,
            cmap=plt.get_cmap(color_palette),
            rasterized=rasterized,
            alpha=alpha,
            s=s,
            c=labels,
        )

    if log_x:
        ax.set_xscale("log")
    if log_y:
        ax.set_yscale("log")

    if labels is not None:
        if categorical_labels == True:
            legend_elements = [
                Line2D([0], [0], marker="o", color=value, label=key)
                for key, value in lab_dict.items()
            ]
        if show_legend:
            if not categorical_labels:
                if cbar_orientation == "horizontal":
                    axins1 = inset_axes(
                        ax,
                        width="50%",  # width = 50% of parent_bbox width
                        height="5%",  # height : 5%
                        loc="upper left",
                    )
                    # cbar = fig.colorbar(sct, cax=axins1, orientation=cbar_orientation

                else:
                    axins1 = inset_axes(
                        ax,
                        width="5%",  # width = 50% of parent_bbox width
                        height="50%",  # height : 5%
                        loc="lower right",
                    )
                cbar = fig.colorbar(sct, cax=axins1, orientation=cbar_orientation)
                cbar.ax.tick_params(labelsize=tick_size)
                axins1.xaxis.set_ticks_position(tick_pos)
            else:
                ax.legend(handles=legend_elements)
    if equalize_axes:
        ax.axis("equal")
    return ax

avgn_paper/avgn/visualization/projections.py

Line 323 in 63e25ca

def scatter_spec(

[braycarlson]

I had the same issue, and it got even worse when I resized the figure. I also noticed some of the example figures in notebooks suffered from the same issue. My issue stemmed from the scatter_projections() function, which is conditionally used in scatter_spec(). The culprit was the following:

if equalize_axes:
    ax.axis("equal")

After I set equalize_axes to False or removed the above code from scatter_projections(), then everything worked perfectly.
