Synesis

Knowledge engineering in VS Code — the official interface for the Synesis ecosystem.

Synesis turns your qualitative-research project into live, navigable data: bibliographic references, analytical codes, causal relations, and ontology annotations — all derived directly from your template and annotation files, with real-time diagnostics as you type.

---

Setup (3 steps)

1. Install the compiler and language server (they do the analysis; the extension is the interface):

pip install synesis synesis-lsp

2. Create your first project — in an empty folder, run:

synesis init

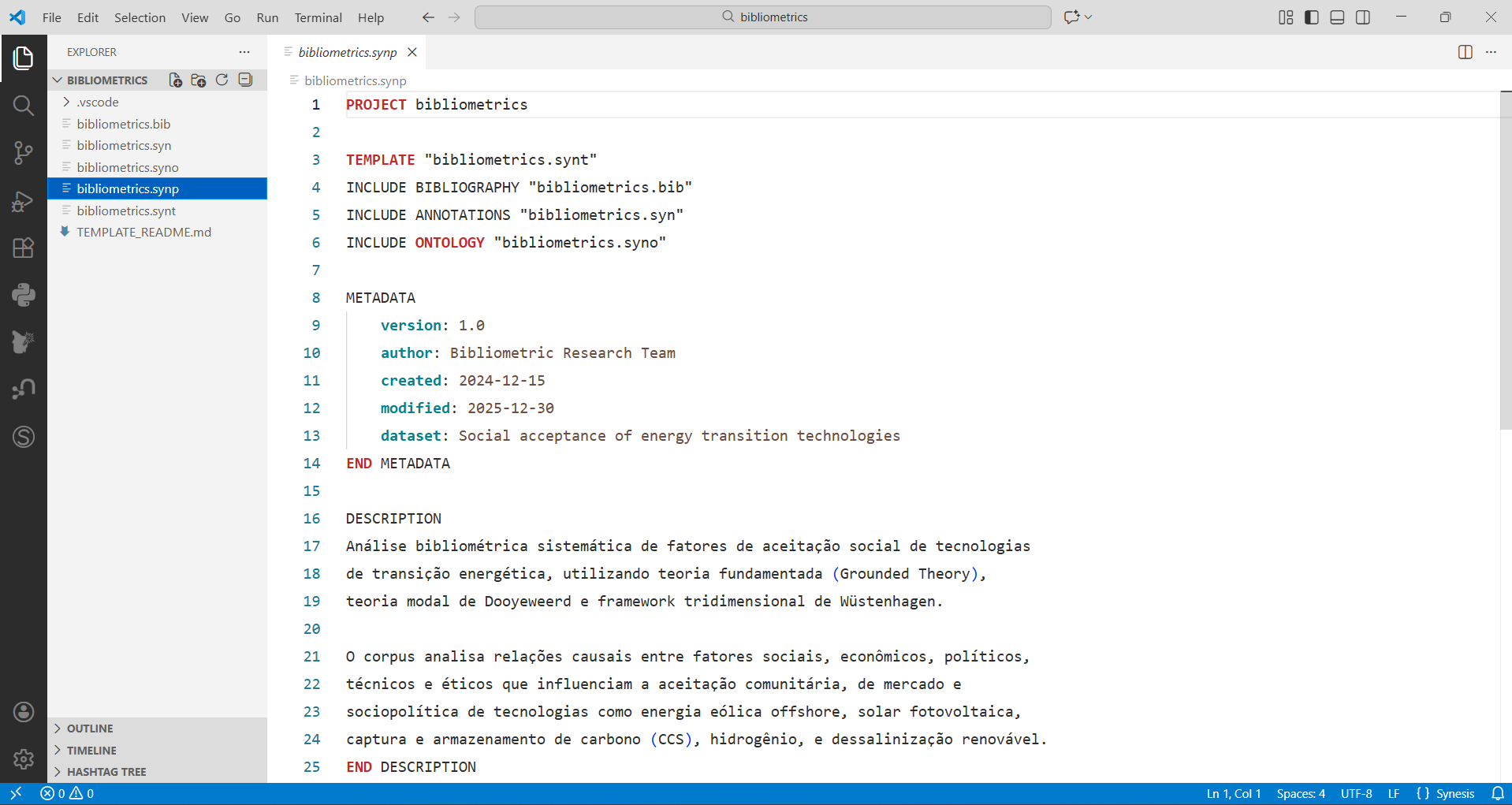

This generates a complete, compilable example: project.synp, template.synt, references.bib, annotations.syn, and ontology.syno. It is the fastest way to see every panel populated.

3. Install the extension and open that folder in VS Code. The Synesis icon appears in the Activity Bar and the panels fill in automatically.

If pip installed to a location outside your PATH, set synesisExplorer.lsp.pythonPath in Settings to the full path of synesis-lsp.

---

First 60 seconds

1. Run synesis init in an empty folder, then open it in VS Code.
2. Click the Synesis icon in the Activity Bar (left).
3. Browse the References and Codes panels — click any entry to jump to its exact line.
4. Open annotations.syn: errors appear inline and in the Problems panel (Ctrl+Shift+M).
5. Press Ctrl+Alt+G to see the relation graph.

Keep the Synesis cheatsheet handy — a one-page reference for the Synesis language syntax.

New to the language itself? Start from the Synesis documentation.

---

What you get

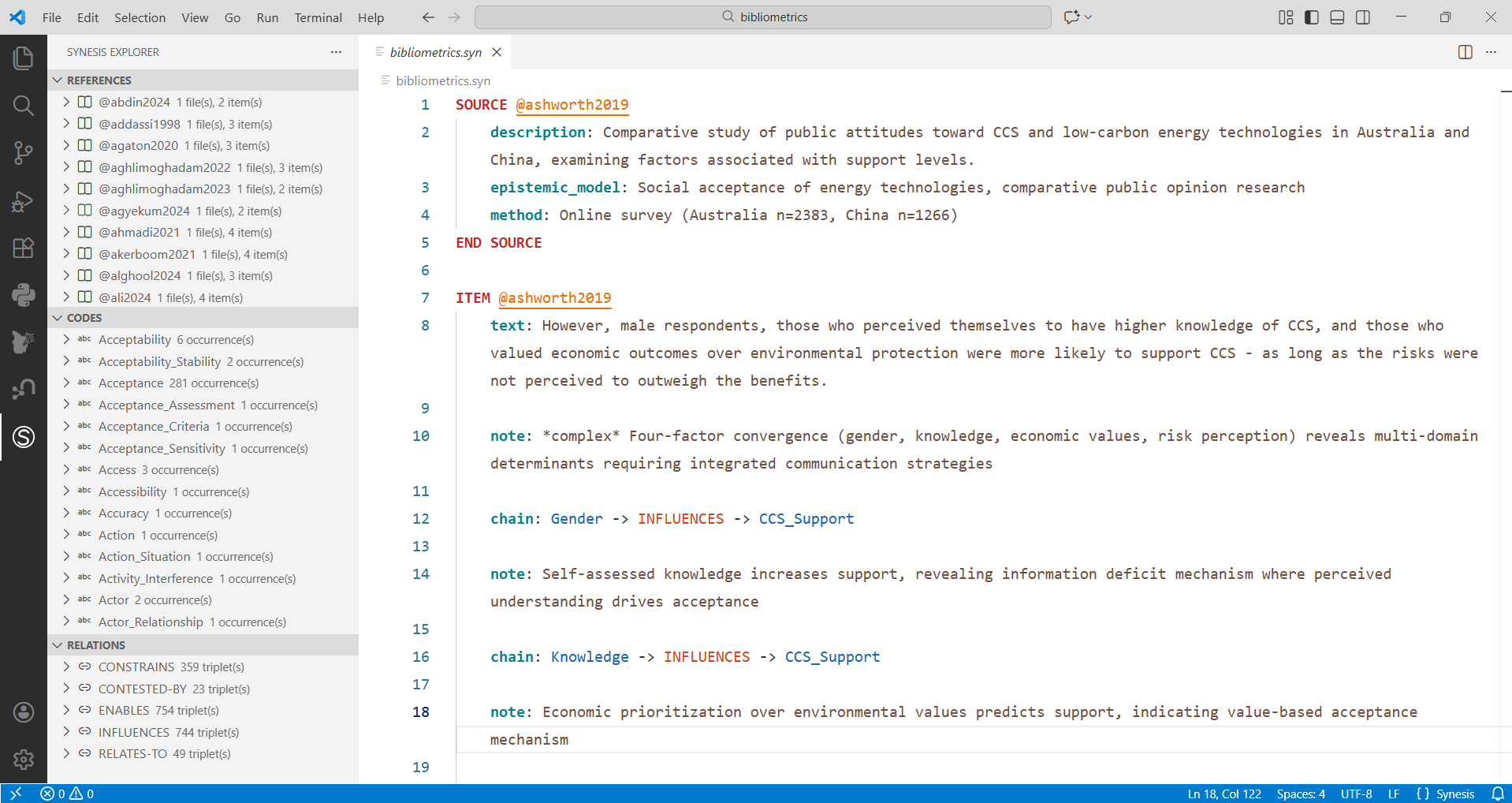

Navigation panels (Activity Bar → Synesis). Some appear only for the relevant file type:

Panel	Shows	Visible when
References	Bibliographic sources (SOURCE), items nested below	always
Codes	Analytical codes, with each occurrence	a project is loaded
Relations	Causal chains (CHAIN), grouped by source	editing a .syn file
Ontology Topics	Topics from ontology files	editing a .syno file
Ontology Annotations	Where ontology topics are used across .syn files	editing a .syn file
Template Fields	Fields from the template (.synt), by scope	always

Click any entry to open the file at the exact line.

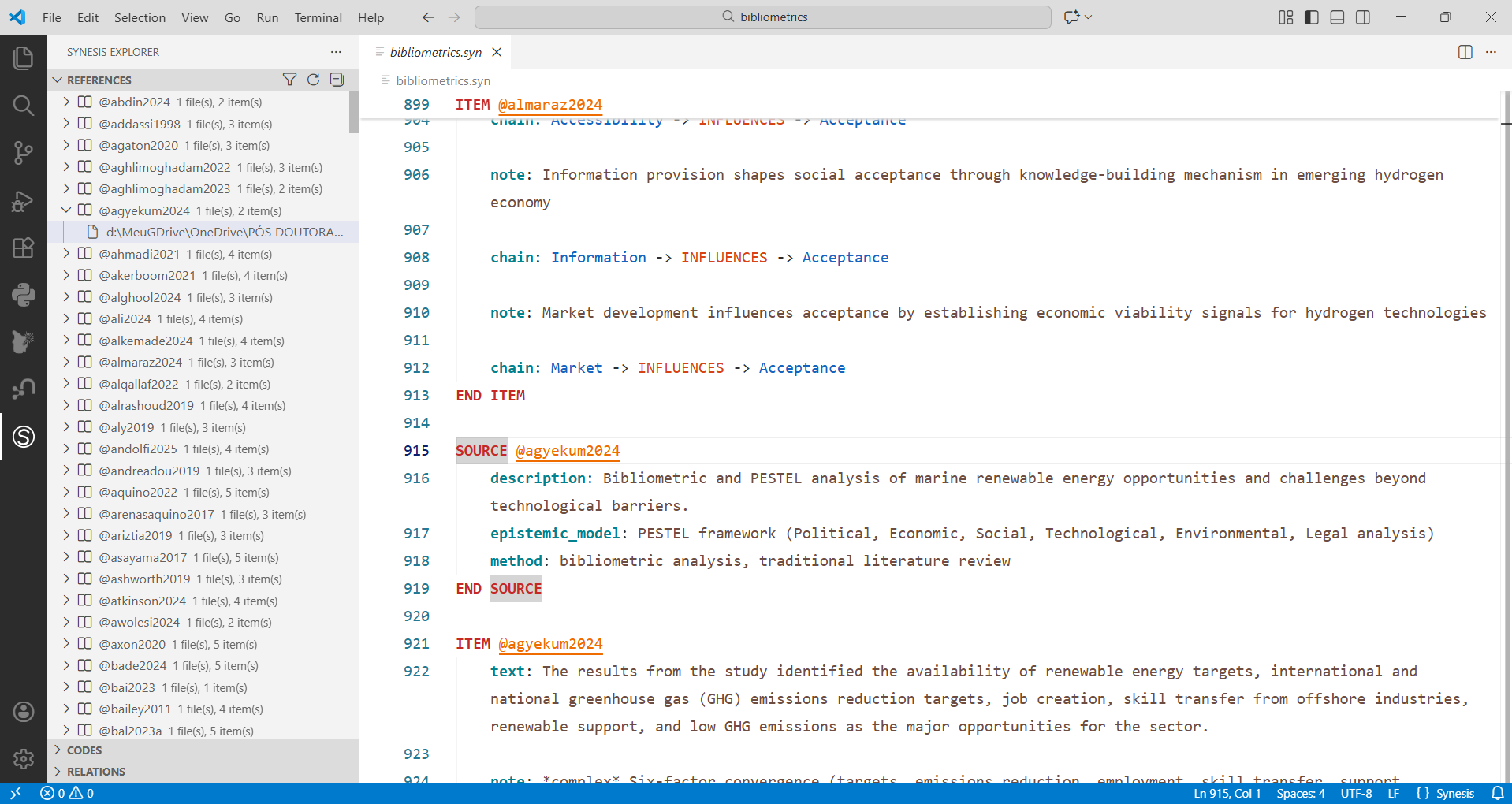

References — every bibliographic source, with its annotation items nested below.

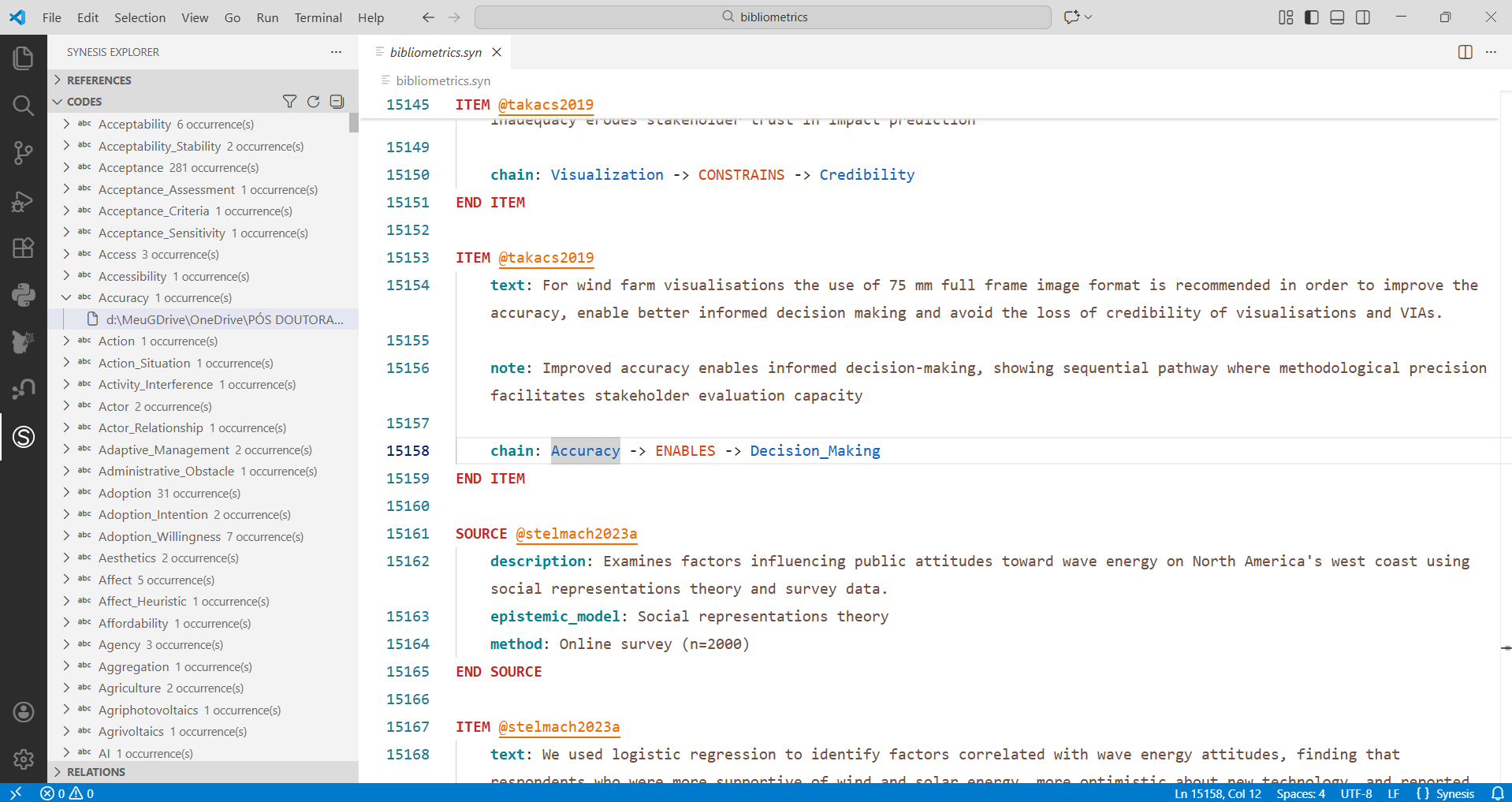

Codes — every analytical code, with each occurrence, ready to jump to.

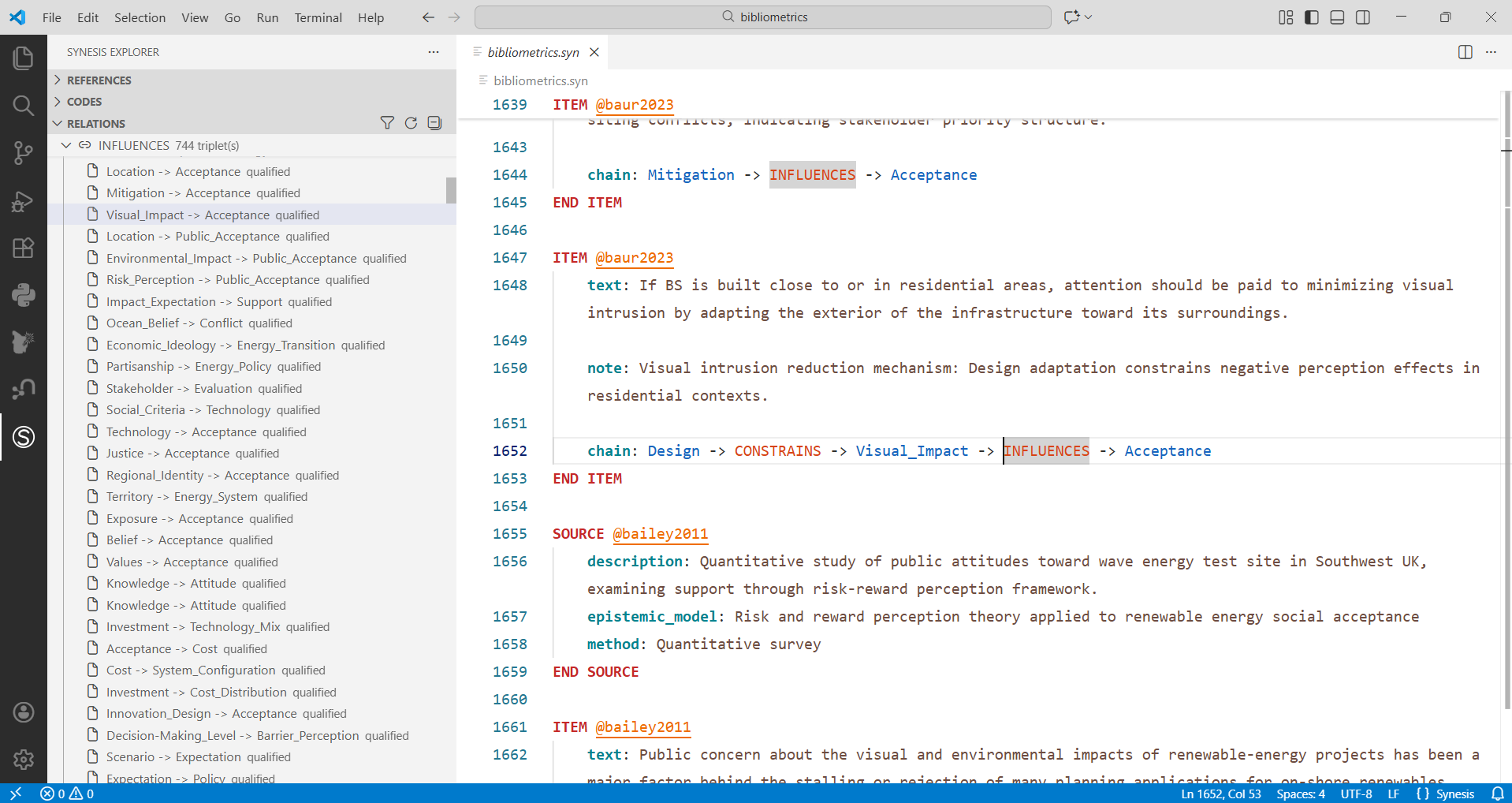

Relations — causal chains (CHAIN) between concepts, grouped by source.

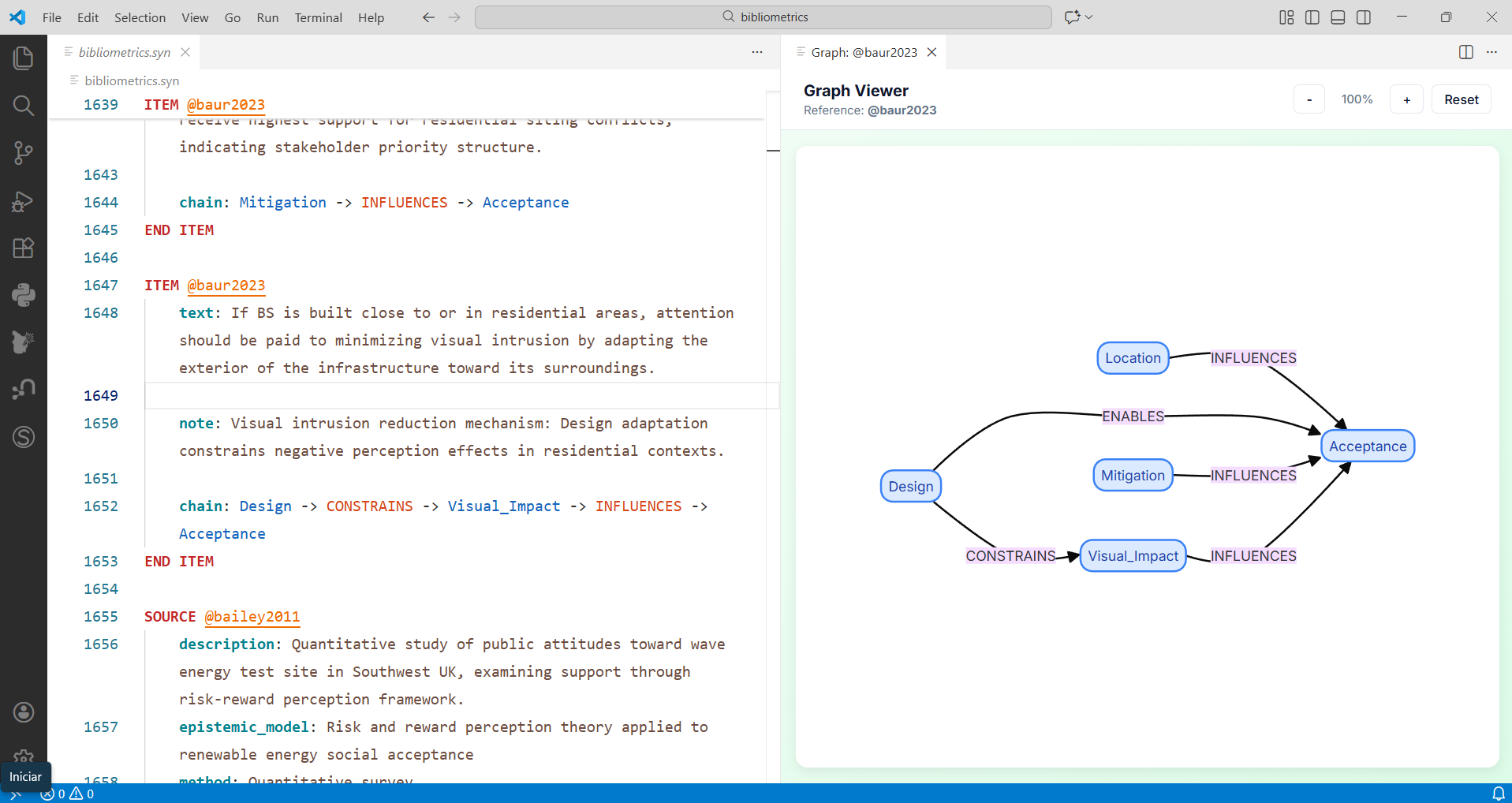

Relation graph — interactive, zoomable graph of your chains, for the whole project, one file, or one item (Ctrl+Alt+G).

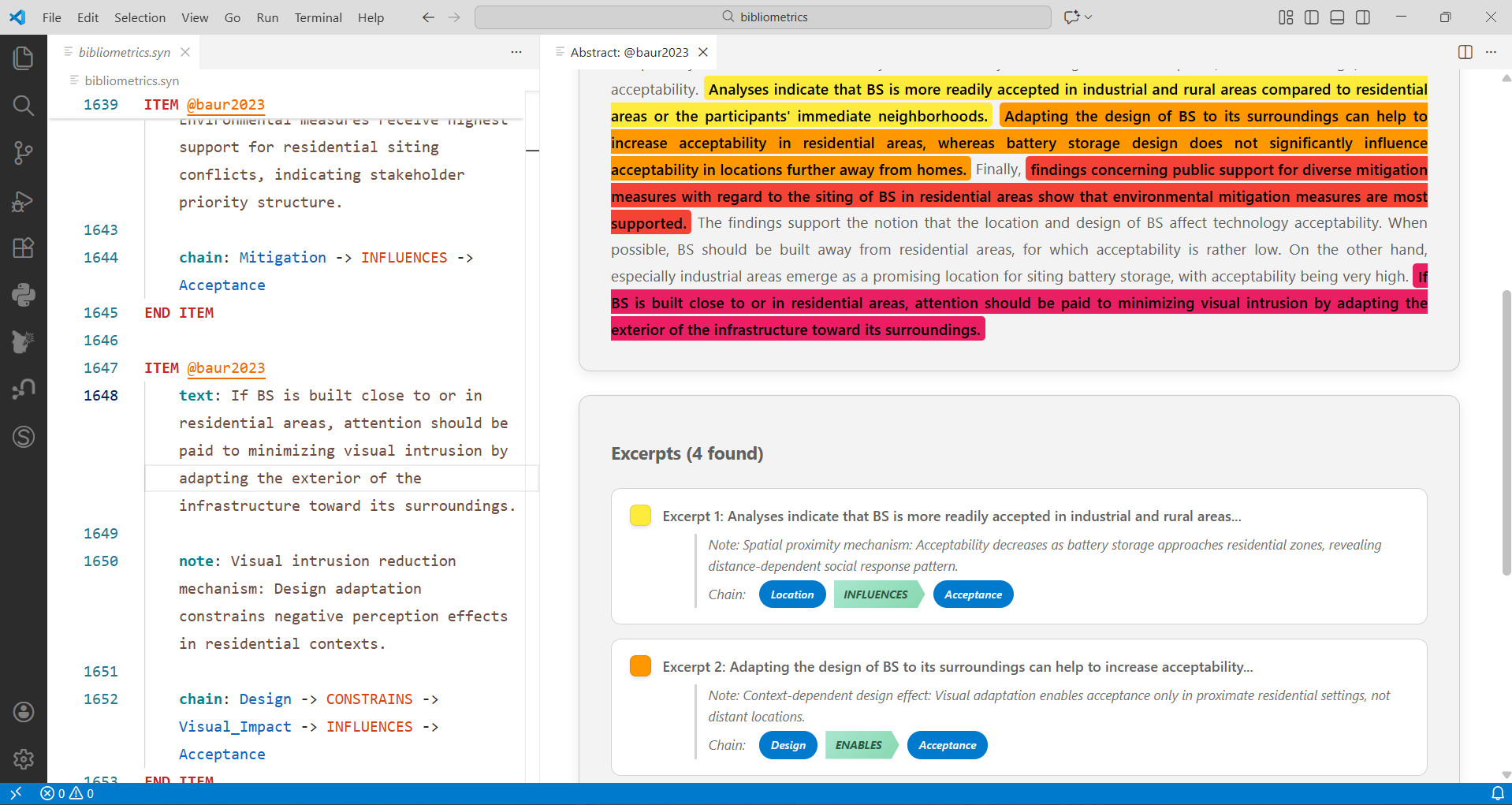

Abstract viewer — the bibliographic abstract for the active reference (Ctrl+Shift+A).

Real-time diagnostics — missing required fields, unknown references, codes not in the template, and more, underlined as you edit .syn/.syno.

Snippets — type a prefix and press Tab to expand a complete block, then Tab again to move between the parts you need to fill in.

Prefix	Expands to
field-chain, field-scale, field-ordered, … (one per field type)	a FIELD block for that type, already carrying whatever it requires — ARITY for CHAIN, FORMAT for SCALE, VALUES for ORDERED
SOURCE, ITEM, ONTOLOGY	an annotation block carrying your project's required fields, read from its template

The FIELD snippets are generated from the compiler's own rules, so they never drift from what it accepts. The annotation blocks come from the language server, which is why they know your template: a SOURCE block in one project may require slug and nome, and in another lattes_id, nome and cargo_institucional.

AI-assisted coding — send a selection to synesis-coder to generate annotations (Ctrl+Shift+I; requires pip install synesis-coder).

Two themes — Synesis Dark / Synesis Light (Ctrl+Shift+P → "Color Theme").

---

Key commands

Run any of these from the Command Palette (Ctrl+Shift+P, type "Synesis"), or use the shortcut:

Shortcut	Action
Ctrl+Alt+G	Relation graph — whole project
Ctrl+Alt+F	Relation graph — active file
Ctrl+Alt+I	Relation graph — item under cursor
Ctrl+Shift+A	Show bibliographic abstract for the active reference
Ctrl+Shift+I	Code the current selection with synesis-coder
F12	Go to a code's definition
F2	Rename a code or reference across the whole project

---

Settings

All under synesisExplorer.* (File → Preferences → Settings → "Synesis"):

Setting	Purpose
lsp.pythonPath	Path to the synesis-lsp executable, if not on PATH
lsp.enabled	Turn the language server on/off
diagnostics.enabled	Toggle inline error squiggles
inlayHints.enabled	Show (Author, Year) hints after references
semanticHighlighting.enabled	AST-based highlighting (needs a Synesis theme)
completion.autoImportCodes	Offer ontology codes in autocomplete
coder.path	Path to the synesis-coder executable

lsp.pythonPath, lsp.args and coder.path are machine-scoped: a workspace cannot override which executable runs, so opening someone else's project is safe.

---

Troubleshooting

• Panels are empty — make sure the folder contains a .synp file and that synesis-lsp is installed and reachable (check the Synesis LSP output channel).
• A panel is missing — several panels are file-type-specific (see the table above); open a .syn or .syno file to reveal them.
• "Failed to start Synesis LSP" — set synesisExplorer.lsp.pythonPath to the full path of the executable.

---

Resources

• Synesis cheatsheet — one-page language syntax reference.
• Documentation — the Synesis language and compiler.
• Run synesis init any time to regenerate a working example project.

---

License

MIT — Christian Maciel De Britto. See CHANGELOG.md for version history.
