OCI-ShowBackups

ShowBackups is a demonstration script showing you how to list compute instance backups (boot & volumes).

Quick install on Oracle Linux 7.9

curl https://raw.githubusercontent.com/Olygo/OCI-ShowBackups/main/install.sh | bash

• install dependencies
• clone git repo locally
• schedule cron everyday at 8AM

Features

• ShowBackups :

  • searches for compute instances
  • retrieves all attached volumes
  • lists all volume backups found
  • generates csv report
  • stores csv report in an oci bucket

• Support for using the script with Instance Principals. Meaning you can run this script inside OCI and when configured properly, you do not need to provide any details or credentials

-Parameters for execution:

-cs                      	authenticate through CloudShell Delegation Token
-cf                      	authenticate through local OCI config_file
-cfp      config_file     	change OCI config_file path, default: ~/.oci/config
-cp       config_profile  	indicate config file section to use, default: DEFAULT
-c        compartment_ocid  	compartment to store the bucket report, default: root
-b        bucket_name       	bucket name to store the report, default: reports_YOUR_TENANT_NAME
-rf       report_folder     	local folder path to store the report, default: ~
-rn       report_name       	name of the csv report, default: compute_backups_CURRENT_DATE_TIME
-nocloud                    	if used: do not store csv report on OCI, default: False
-tlc      compartment_ocid  	scan only a specific compartment, default: scan from root compartment
-rg       region_name  		scan only a specific region, default: scan all regions
-h,       --help            	show this help message and exit

Install script into (free-tier) Autonomous Linux Instance

• Use an existing VCN or create a dedicated vcn (preferred) in a public or a private subnet (preferred if vpn or fastconnect)

• Create a free-tier compute instance using the Autonomous Linux 7.9 image

• Create a Dynamic Group called OCI_Scripting and add the OCID of your instance to the group, using this command:

  • ANY {instance.id = 'OCID_of_your_Compute_Instance'}

• Create a root level policy, giving your dynamic group permission to manage resources in tenancy:

  • you can use :

      allow dynamic-group OCI_Scripting to manage all-resources in tenancy


  • but the following statements are sufficients:

      allow dynamic-group OCI_Scripting to read all-resources in tenancy

      allow dynamic-group OCI_Scripting to manage object-family in tenancy where any {request.permission='BUCKET_CREATE', request.permission='OBJECT_CREATE', request.permission='OBJECT_OVERWRITE'}


• Login to your instance using an SSH connection

• Run the following commands:

  • sudo yum update -y
  • sudo yum install git -y
  • python3 -m pip install oci oci-cli --user
  • git clone https://github.com/Olygo/OCI-ShowBackups.git
  • cd ./OCI-ShowBackups
  • python3 OCI-ShowBackups.py

How to use

Default - No argument:

python3 ./OCI-ShowBackups.py

without arguments OCI-ShowBackups tries to authenticate using Instance Principals

Authenticate with local_config_file:

python3 ./OCI-ShowBackups.py -cf

Authenticate with custom local_config_file & profile:

python3 ./OCI-ShowBackups.py -cf -cfp /home/opc/myconfig -cp MyDomain

Authenticate in cloud_shell:

python3 ./OCI-ShowBackups.py -cs

custom parameters examples:

python3 ./OCI-ShowBackups.py -cf -rg eu-paris-1 -tlc ocid1.compartment.oc1..aaaaaaaaurxxxx -b data_bucket -rn backups_of_my_instances

python3 ./OCI-ShowBackups.py rg eu-frankfurt-1 -nocloud -rf /home/opc/data/ -rn backups_of_my_instances

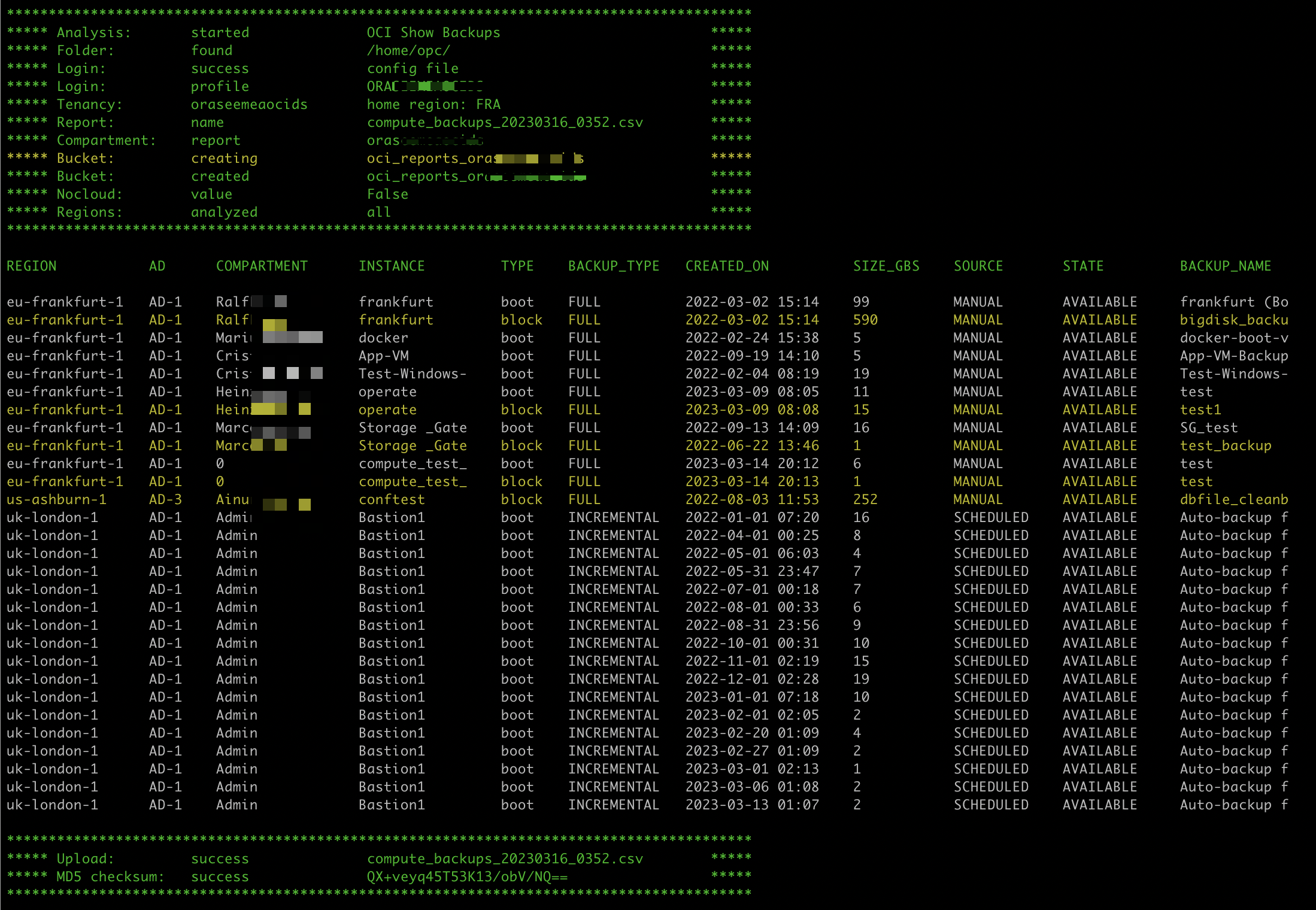

Terminal output

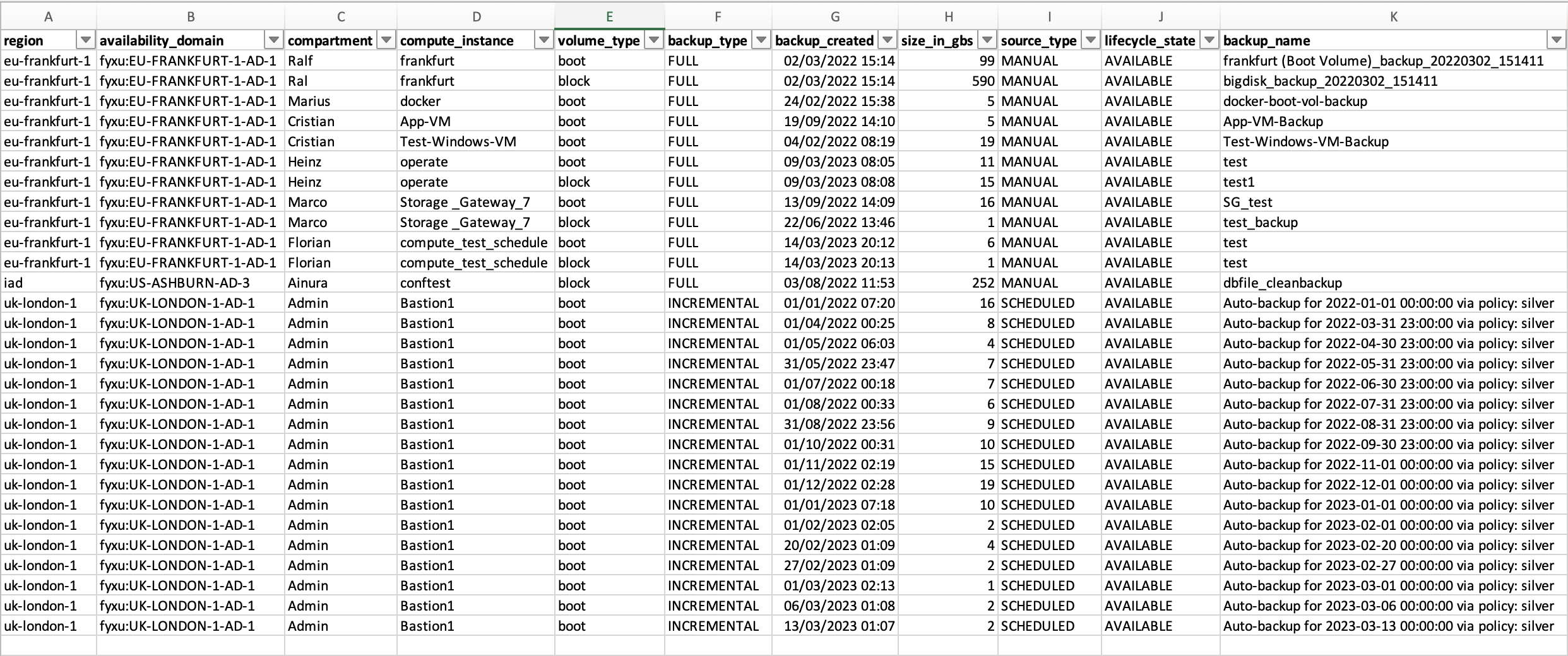

CSV report

Questions ?

[email protected]

Disclaimer

Please test properly on test resources, before using it on production resources to prevent unwanted outages or unwanted bills.
